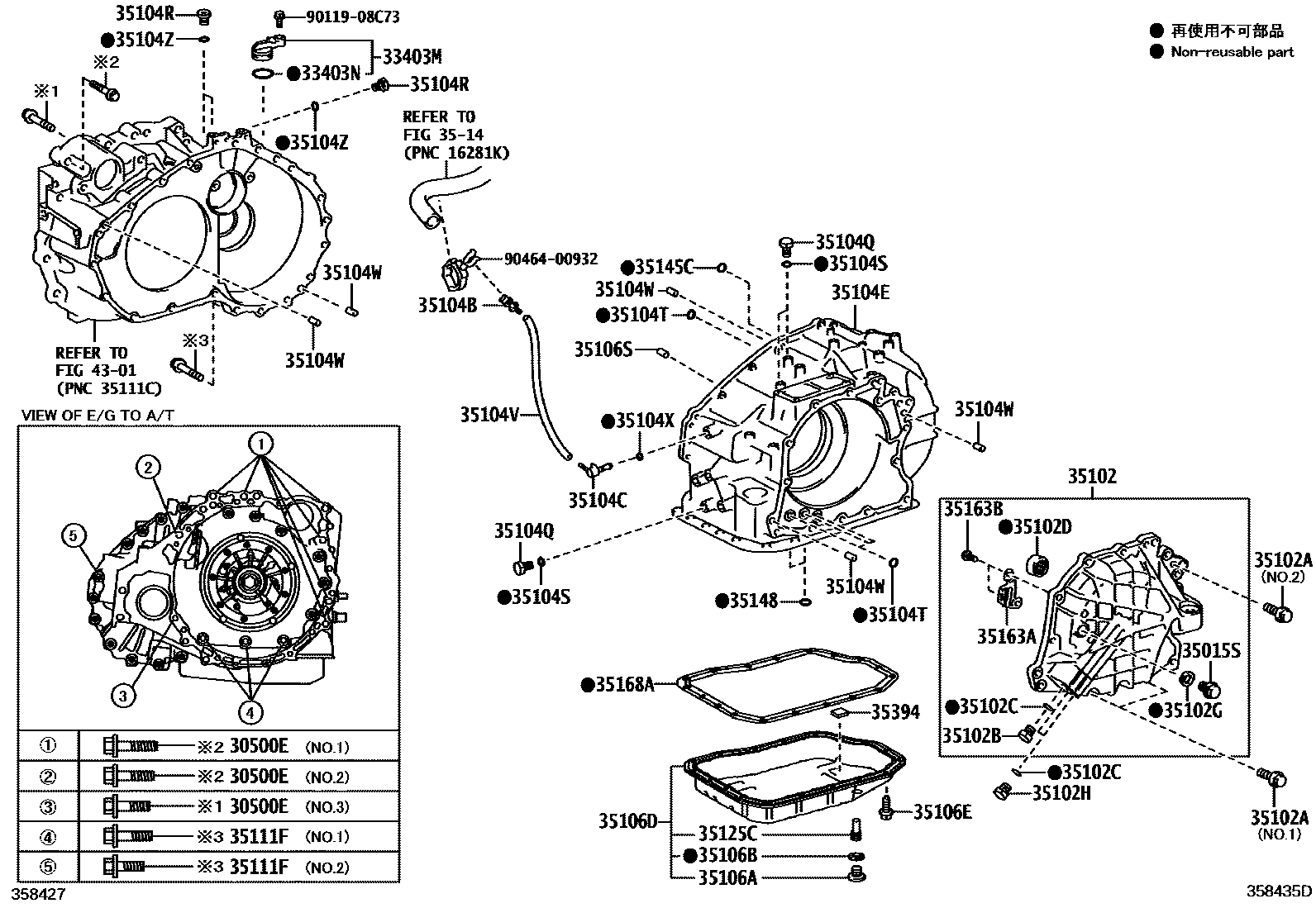

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10425iGSV60201507

*10-1.25PX41-28,NO.3

main90119-12168×6iGSV60201206-201507

*12-1.25PX55-30,NO.1

main90119-12250iGSV60201507

*12-1.25PX50-30,NO.2

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-35230iGSV60201507

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24030iGSV60201507

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iGSV60201507

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-33060iGSV60201206-201309

main35102-33061iGSV60201507

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2iGSV60201206-201507

*8-1.25PX28-22,NO.1

main91551-00828×12iGSV60201206-201507

*8-1.25PX28-22,NO.2

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001iGSV60201507

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×3iGSV60201206-201507

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-18010iGSV60201206-201507

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iGSV60201206-201507

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2iGSV60201206-201507

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iGSV60201206-201507

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187iGSV60201206-201507

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35141-33072iGSV60201206-201402

main35141-33073iGSV60201402-201507

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3iGSV60201206-201507

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3iGSV60201206-201507

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×3iGSV60201507

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4iGSV60201507

35104VHOSE (FOR BREATHER PLUG)

main35121-73010iGSV60201206-201312

main35121-73011iGSV60201312-201507

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5iGSV60201206-201507

35104XRING, O (FOR BREATHER PLUG)

main90301-06021iGSV60201206-201507

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iGSV60201206-201507

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iGSV60201206-201507

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iGSV60201206-201507

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33061iGSV60201206-201310

main35106-48010iGSV60201310-201502

main35106-48011iGSV60201503-201507

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iGSV60201507

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007iGSV60201206-201507

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3iGSV60201507

*8-1.25PX45-22,NO.1

main91551-10845×17iGSV60201507

*8-1.25PX45-22,NO.2

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-33130iGSV60201206-201507

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

35145CGASKET, TRANSAXLE CASE

main35145-33010iGSV60201206-201507

35148GASKET, GOVERNOR APPLY, NO.1

main35145-33010×2iGSV60201206-201507

35163APLATE, TRANSAXLE REAR COVER

main35163-33010iGSV60201206-201507

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055×2iGSV60201206-201507

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-33080iGSV60201206-201507

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iGSV60201206-201507

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9011908C73

main90119-08C73

9046400932

main90464-00932

39 parts on this diagram · 1 diagram in section
