TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

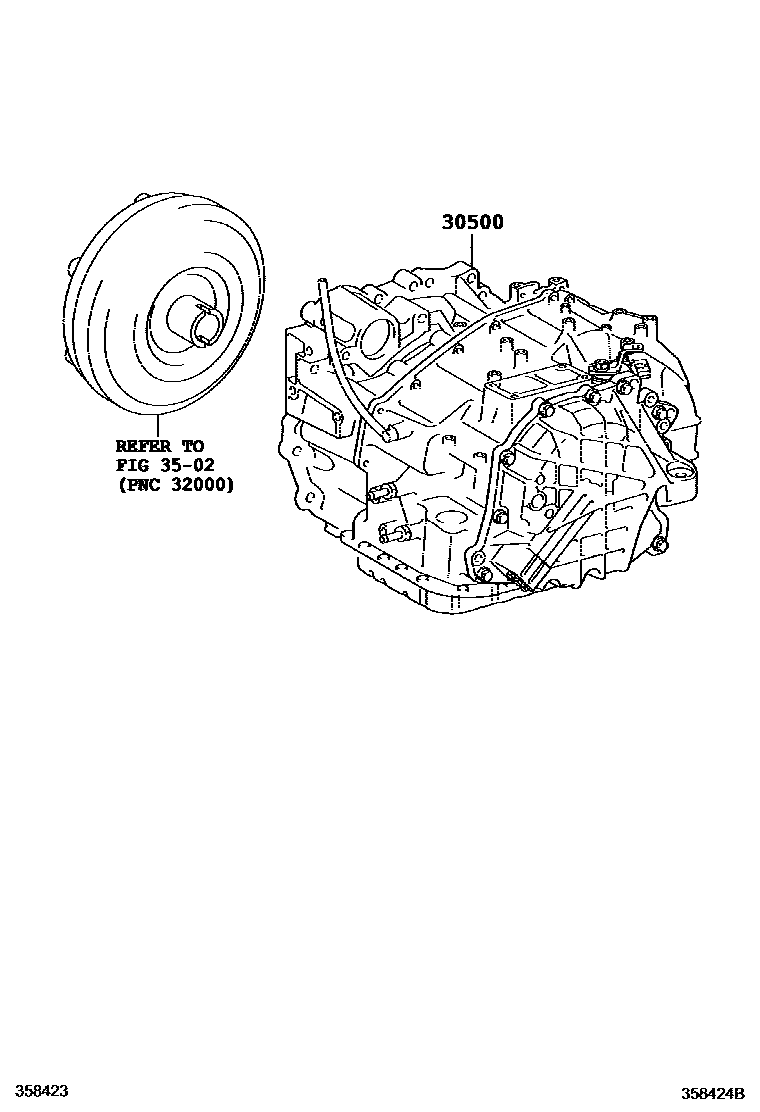

Parts diagram

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33640i201206-201402

U660E

main30500-33641i201402-201507

U660E

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

2 parts on this diagram · 1 diagram in section
