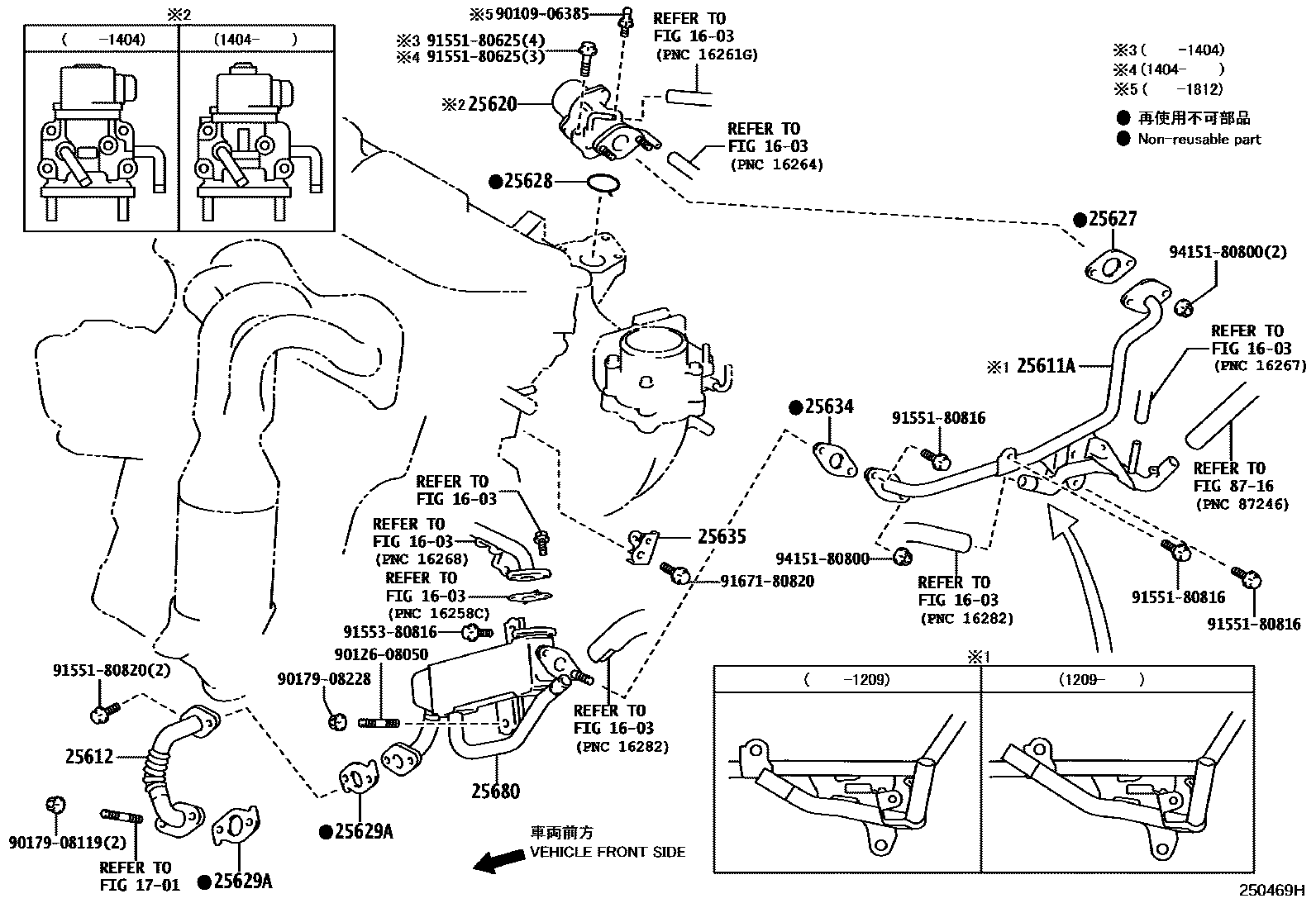

EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25611APIPE, EGR, NO.1

main25611-36010i2ARFXE..AVV60201206-201209

main25611-36011i2ARFXE..AVV60201209-201507

25612PIPE, EGR, NO.2

main25612-36010i2ARFXE..AVV60201206-201507

25620VALVE ASSY, EGR

main25620-36030i2ARFXE..AVV60201206-201404

main25620-36060i2ARFXE..AVV60201404-201507

25627GASKET, EGR VALVE

main25627-36010i2ARFXE..AVV60201206-201507

25628GASKET, EGR INLET

main25628-36010i2ARFXE..AVV60201206-201507

25629AGASKET, EGR PIPE, NO.2

main25629-36010×2i2ARFXE..AVV60201206-201507

25634GASKET, EGR PIPE

main25634-36010i2ARFXE..AVV60201206-201507

25635BRACKET, EGR PIPE, NO.1

main25635-36010i2ARFXE..AVV60201206-201507

25680COOLER ASSY, EGR

main25680-36010i2ARFXE..AVV60201206-201401

main25680-36011i2ARFXE..AVV60201401-201402

main25680-36012i2ARFXE..AVV60201403-201507

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9010906385

main90109-06385

9012608050

main90126-08050

9017908119

main90179-08119

9017908228

main90179-08228

9155180625

main91551-80625

9155180816

main91551-80816

9155180820

main91551-80820

9155380816

main91553-80816

9167180820

main91671-80820

9415180800

main94151-80800

22 parts on this diagram · 1 diagram in section
