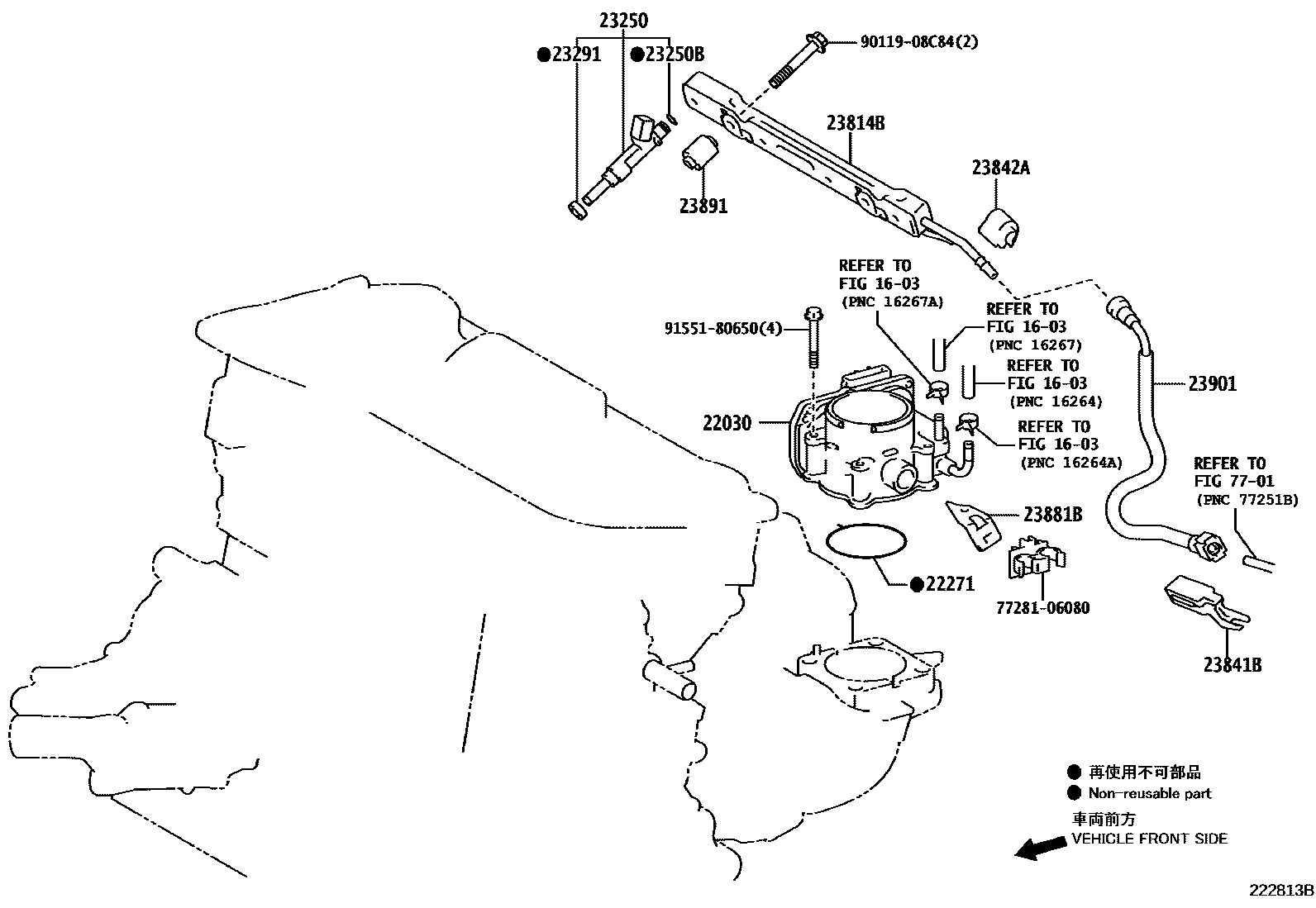

FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0P050i2GRFE..GSV60201206-201507

(L)

main22030-31030i2GRFE..GSV60201206-201507

(J)

main22030-36020i2ARFXE..AVV60201206-201507

22271GASKET, THROTTLE BODY

main22271-31040i2GRFE..GSV60201206-201507

main22271-36020i2ARFXE..AVV60201507

23250INJECTOR ASSY, FUEL

main23209-31090×6i2GRFE..GSV60201507

main23209-39175×4i2ARFXE..AVV60201206-201507

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i2GRFE..GSV60201206-201507

main90301-07037×4i2ARFXE..AVV60201206-201507

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFE..GSV60201206-201507

main23291-28020×6i2GRFE..GSV60201805

23814BPIPE, FUEL DELIVERY

main23814-36050i2ARFXE..AVV60201507

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31070i2ARFXE..AVV60; 2GRFE..GSV60201206-201507

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ARFXE..AVV60201507

main23842-31040i2GRFE..GSV60201206-201507

23881BBRACKET, FUEL HOSE

main23881-31020i2GRFE..GSV60201206-201507

main23881-36030i2ARFXE..AVV60201206-201507

23891SPACER, FUEL DELIVERY

main23891-36010×2i2ARFXE..AVV60201206-201507

23901TUBE SUB-ASSY, FUEL

main23901-31160i2GRFE..GSV60201206-201507

main23901-36050i2ARFXE..AVV60201206-201507

7701FUEL TANK & TUBE

→ Go to FIG 77-01

7728106080BRACKET, FUEL MAIN TUBE, NO.1

main77281-06080

9011908C84

main90119-08C84

9155180650

main91551-80650

16 parts on this diagram · 2 diagrams in section
