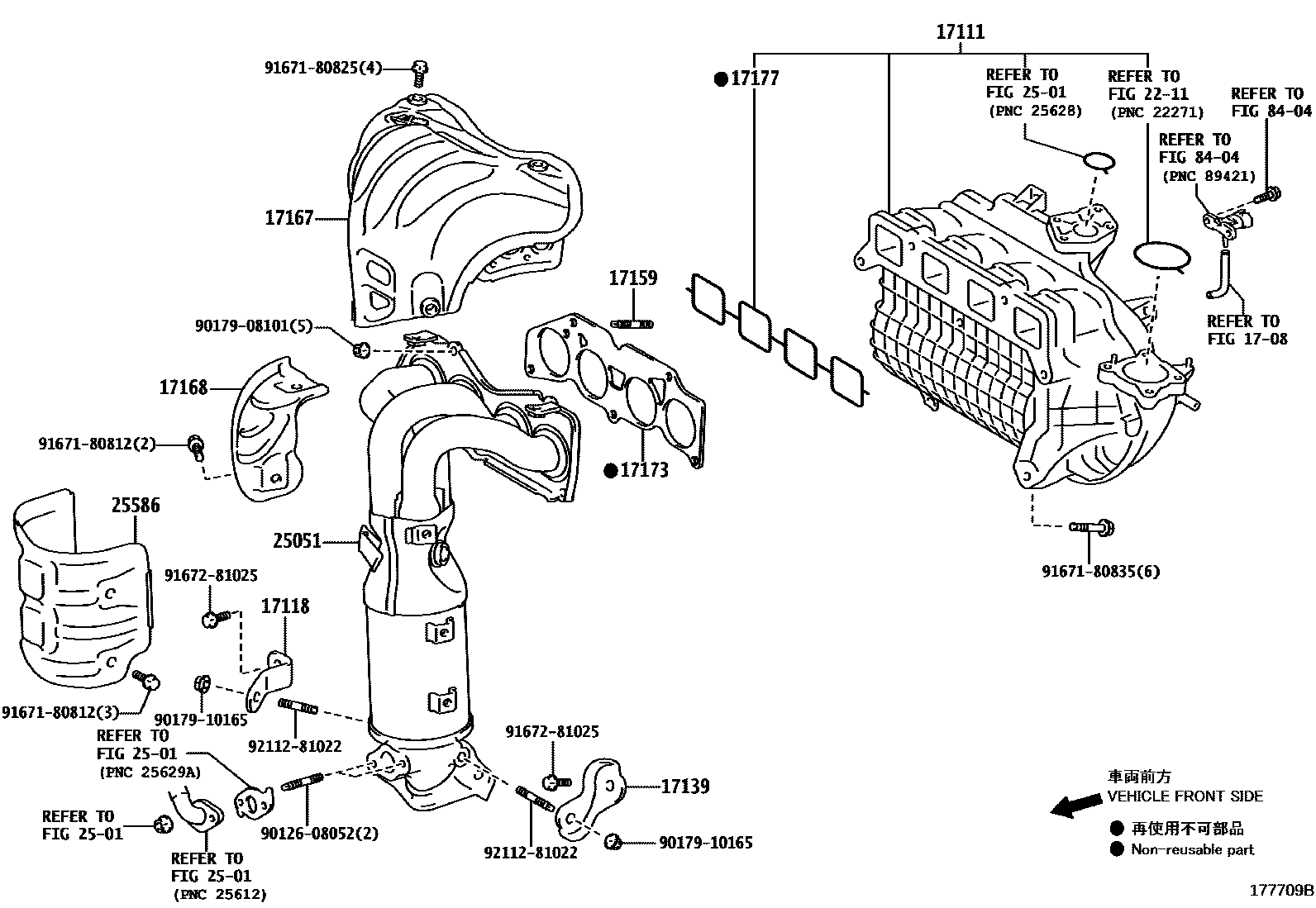

MANIFOLD

0001 1 0002 1

1708

17111MANIFOLD, INTAKE

main17111-31141i2GRFE..GSV60201206-201507

main17120-36050i2ARFXE..AVV60201206-201507

17118STAY, MANIFOLD

main17118-36020i2ARFXE..AVV60201206-201507

17139STAY, MANIFOLD, NO.2

main17139-36040i2ARFXE..AVV60201206-201507

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08037i2ARFXE..AVV60201206-201507

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-36011i2ARFXE..AVV60201206-201507

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-31011i2GRFE..GSV60201206-201402

sub17168-31100

main17168-31100i2GRFE..GSV60201403-201507

main17168-36010i2ARFXE..AVV60201206-201507

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31020i2GRFE..GSV60201206-201507

main17173-36020i2ARFXE..AVV60201206-201507

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-36020i2ARFXE..AVV60201206-201507

main17177-31040i2GRFE..GSV60201206-201507

2211

2501

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-36080i2ARFXE..AVV60201206-201507

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-36020i2ARFXE..AVV60201206-201507

8404

9012608052

main90126-08052

9017908101

main90179-08101

9017910165

main90179-10165

9167180812

main91671-80812

9167180825

main91671-80825

9167180835

main91671-80835

9167281025

main91672-81025

9211281022

main92112-81022

22 parts on this diagram · 2 diagrams in section
