V-BELT

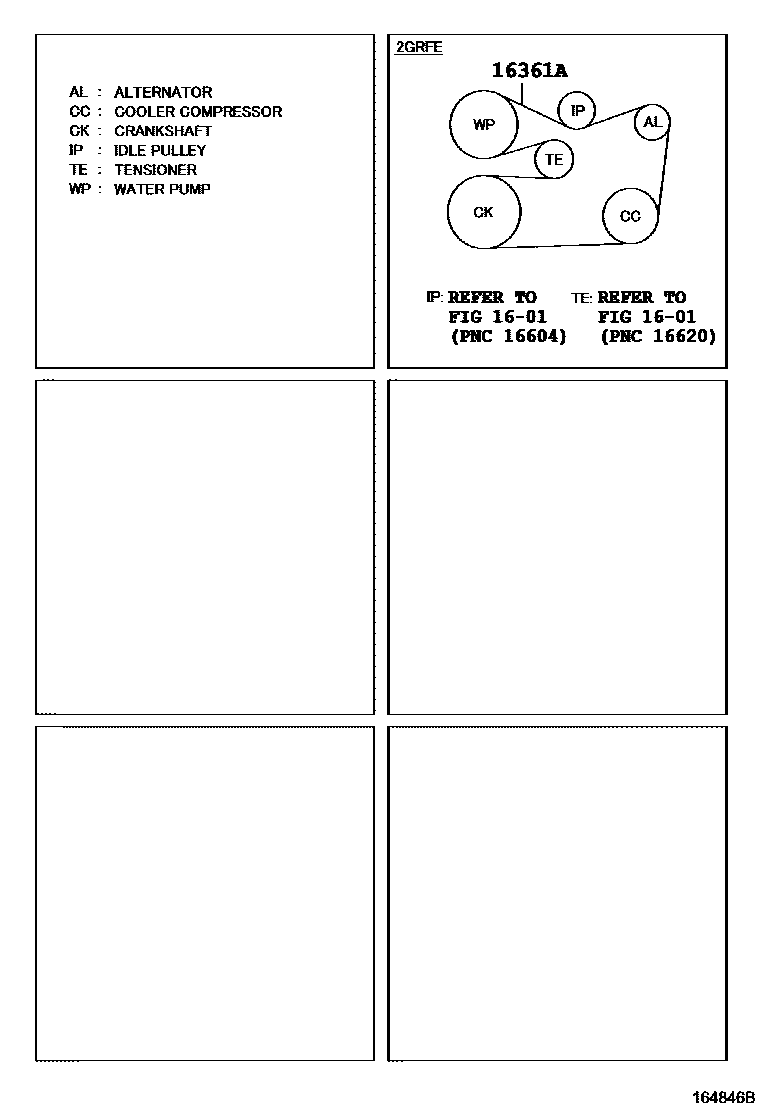

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main99367-C1550i201206-201507

main99367-K1550i201611

2 parts on this diagram · 1 diagram in section
