ENGINE OVERHAUL GASKET KIT

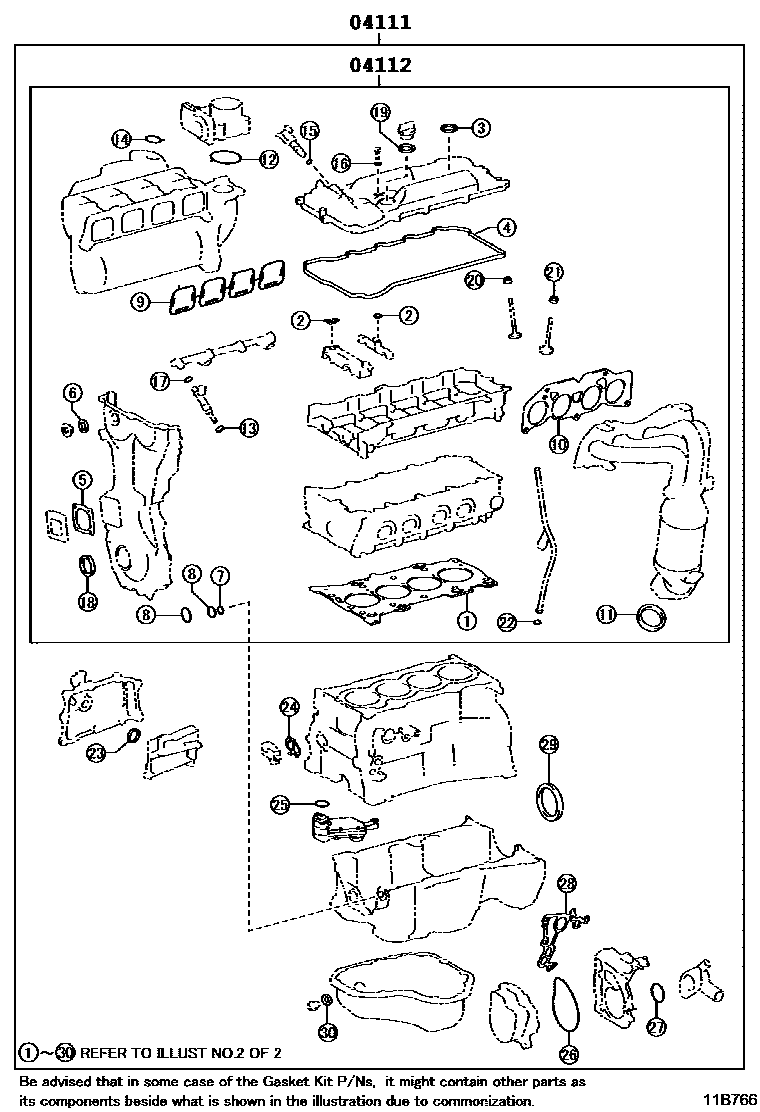

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-36112i201206-201309

main04111-36113i201309-201312

main04111-36114i201312-201409

main04111-36115i201507-201806

main04111-31445supersedes 04111-31843i201507

KOREA SPEC

main04111-31862i201206-201408

MEXICO SPEC

04112GASKET KIT, ENGINE VALVE GRIND

main04112-36091i201206-201312

main04112-36092i201312-201409

main04112-36093i201409-201507

main04112-31274supersedes 04112-31532i201503-201507

KOREA SPEC

main04112-31542i201206-201408

MEXICO SPEC

2 parts on this diagram · 4 diagrams in section
