SHORT BLOCK ASSEMBLY

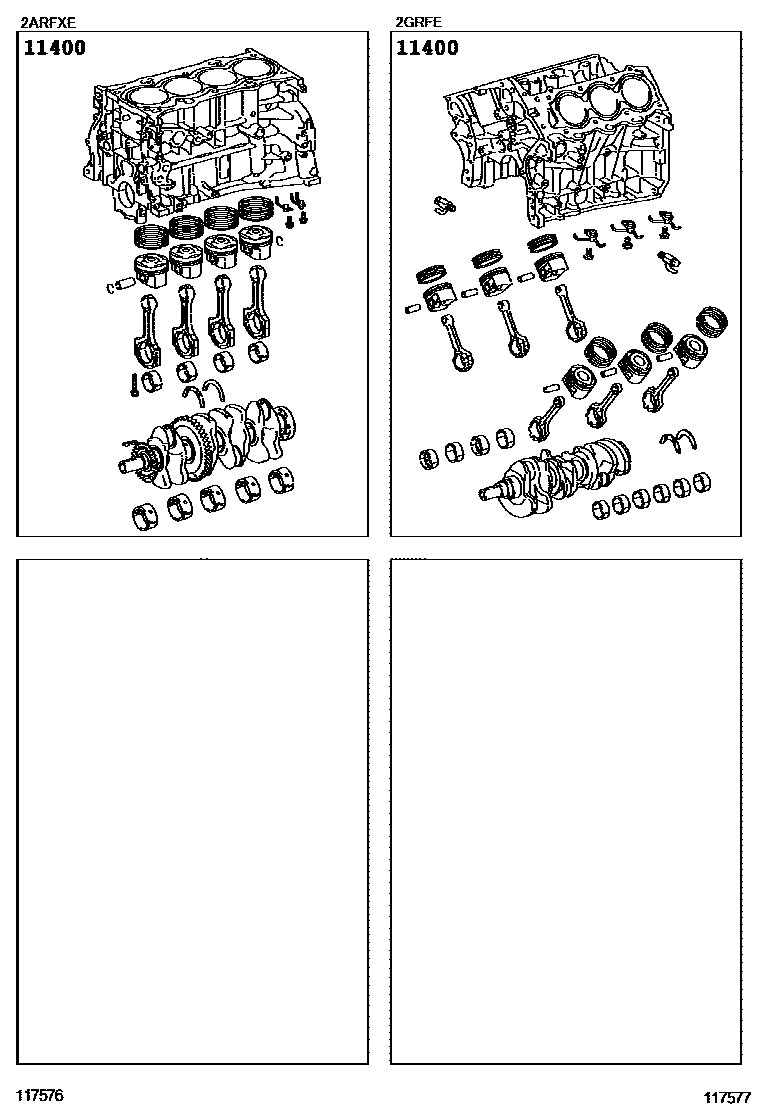

Parts diagram

11400BLOCK ASSY, SHORT

main11400-31163i201206-201210

main11400-31360i201210-201407

main11400-36070i201206-201507

main11400-39115i201407-201507

1 parts on this diagram · 1 diagram in section
