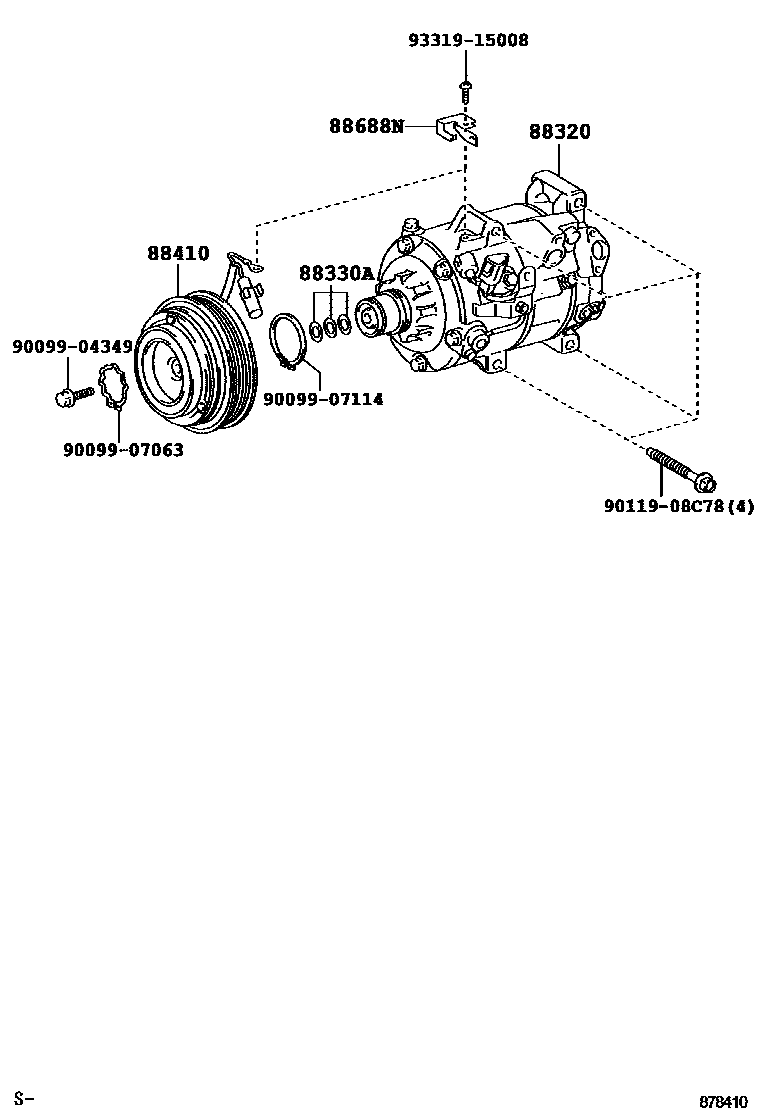

Toyota LEXUS ES350 — HEATING & AIR CONDITIONING - COMPRESSOR
88320COMPRESSOR ASSY, COOLER
88330AWASHER (FOR MAGNET CLUTCH)
88410CLUTCH ASSY, MAGNET
88688NBRACKET, COOLER
9009904349
9009907063
9009907114
9011908C78
9331915008
9 parts on this diagram · 1 diagram in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota LEXUS ES350
This section contains 9 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota LEXUS ES350. Key components include: COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), CLUTCH ASSY, MAGNET, BRACKET, COOLER.
