TELEPHONE & MAYDAY
8604ANTENNA
86713WIRE, TELEPHONE COMPUTER
AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS)
86719ABRACKET, TELEPHONE NO.1
AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS); MAYDAY SYSTEM-WITH(TELEMATICS)
86719BBRACKET, TELEPHONE NO.2
AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS); MAYDAY SYSTEM-WITH(TELEMATICS)
86719CBRACKET, TELEPHONE NO.3
AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS); MAYDAY SYSTEM-WITH(TELEMATICS)
86740TRANSCEIVER ASSY, TELEPHONE
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(TRACKING & BLOCKING)
86741ATRANSCEIVER, TELEMATICS
AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS)
AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS)
AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS)
MAYDAY SYSTEM-WITH(TELEMATICS)
MAYDAY SYSTEM-WITH(TELEMATICS)
MAYDAY SYSTEM-WITH(TELEMATICS)
86742COVER, TRANSCEIVER
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(TRACKING & BLOCKING)
86777BATTERY, MAYDAY
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(TRACKING & BLOCKING)
AUDIO-6CD-CHANGER BLUETOOTH SDARS NAVI 8SP&MAYDAY SYSTEM-WITH(TELEMATICS); AUDIO-6DVD-CH BLUETOOTH SDARS NAVI *MAR 14SP&MAYDAY SYSTEM-WITH(TELEMATICS); MAYDAY SYSTEM-WITH(TELEMATICS)
86880BANTENNA ASSY, INSTRUMENT PANEL INTEGRATION
BRAZIL SPEC&ANTI-THEFT SYSTEM-WITH(TRACKING & BLOCKING)
5521732010STRIP, DASH PANEL SILENCER FINISH
main55217-32010
8618333040COVER, AUDIO RACK
main86183-33040
9011906915
main90119-06915
9015350010
main90153-50010
9015950327
main90159-50327
9017906208
main90179-06208
9046705161C0
main90467-05161C0

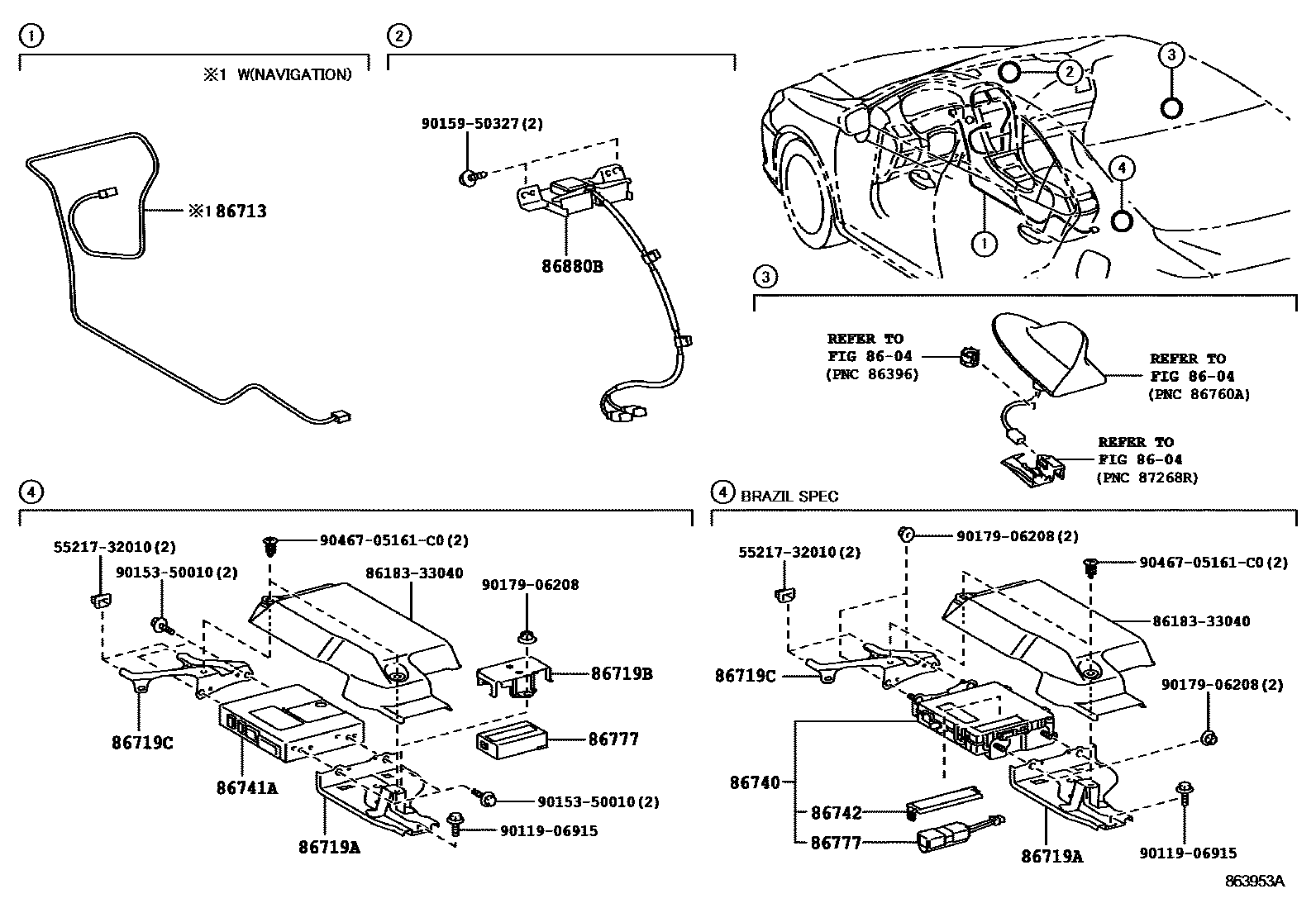

17 parts on this diagram · 1 diagram in section
