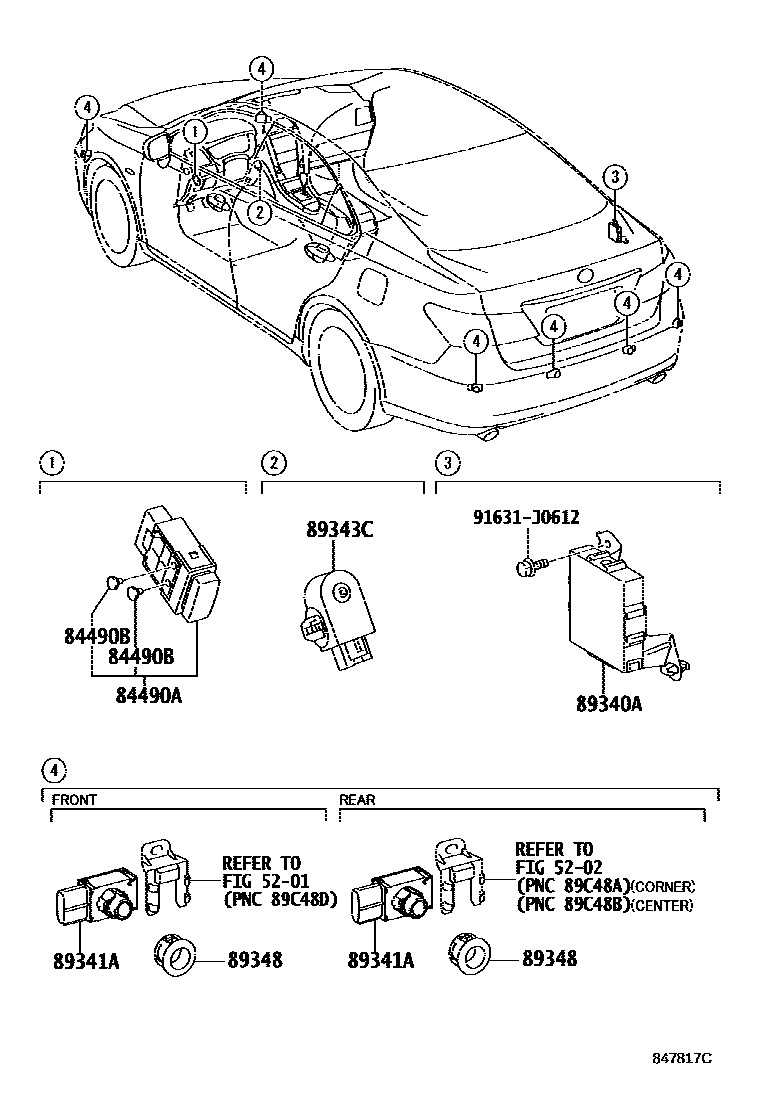

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
CLEARANCE SONER-WITH
84490BBULB(FOR BACK SONAR SWITCH)
14V 0.98W,CLEARANCE SONER-WITH
14V 0.84W,CLEARANCE SONER-WITH
89340ACOMPUTER ASSY, CLEARANCE WARNING
CLEARANCE SONER-WITH
CLEARANCE SONER-WITH
89341ASENSOR, ULTRASONIC, NO.1
CLEARANCE SONER-WITH,WHITE PEARL CS.,062
CLEARANCE SONER-WITH,WHITE PEARL CS.,077
CLEARANCE SONER-WITH,DK.GRAY MC.,1G0
CLEARANCE SONER-WITH,SILVER M.M.,1G1
CLEARANCE SONER-WITH,BLACK,202
CLEARANCE SONER-WITH,BLACK,212
CLEARANCE SONER-WITH,STARLIGHT BLACK GF.,217
CLEARANCE SONER-WITH,SHELL M.M.,3R4
CLEARANCE SONER-WITH,DK.RED MC.CC.,3R5
CLEARANCE SONER-WITH,RED MC.CS.,3R1
CLEARANCE SONER-WITH,BLOND M.M.,4T0
CLEARANCE SONER-WITH,BEIGE ME.,4T1
CLEARANCE SONER-WITH,SABLE M.M.,4T5
CLEARANCE SONER-WITH,SLEEK ECRU ME.,4U7
CLEARANCE SONER-WITH,DEEP PERIDOT MC.,6V6
CLEARANCE SONER-WITH,DK.TURQUOISE M.M.,778
CLEARANCE SONER-WITH,DARK BLUE MC.,8P8
CLEARANCE SONER-WITH,DK.BLUE MC. CC.,8U0
CLEARANCE SONER-WITH,SILVERY BLUE ME.,8U9
CLEARANCE SONER-WITH,LAPIS LAZULI MC.,8V3
CLEARANCE SONER-WITH,MERCURY GRAY MC.,1H9
89343CBUZZER, CLEARANCE WARNING, NO.1
CLEARANCE SONER-WITH
89348RETAINER, ULTRASONIC SENSOR, NO.1
CLEARANCE SONER-WITH,WHITE PEARL CS.,062
CLEARANCE SONER-WITH,WHITE PEARL CS.,077
CLEARANCE SONER-WITH,DK.GRAY MC.,1G0
CLEARANCE SONER-WITH,SILVER M.M.,1G1
CLEARANCE SONER-WITH,BLACK,202
CLEARANCE SONER-WITH,BLACK,212
CLEARANCE SONER-WITH,STARLIGHT BLACK GF.,217
CLEARANCE SONER-WITH,SHELL M.M.,3R4
CLEARANCE SONER-WITH,DK.RED MC.CC.,3R5
CLEARANCE SONER-WITH,RED MC.CS.,3R1
CLEARANCE SONER-WITH,BLOND M.M.,4T0
CLEARANCE SONER-WITH,BEIGE ME.,4T1
CLEARANCE SONER-WITH,SABLE M.M.,4T5
CLEARANCE SONER-WITH,SLEEK ECRU ME.,4U7
CLEARANCE SONER-WITH,DEEP PERIDOT MC.,6V6
CLEARANCE SONER-WITH,DK.TURQUOISE M.M.,778
CLEARANCE SONER-WITH,DARK BLUE MC.,8P8
CLEARANCE SONER-WITH,DK.BLUE MC. CC.,8U0
CLEARANCE SONER-WITH,SILVERY BLUE ME.,8U9
CLEARANCE SONER-WITH,LAPIS LAZULI MC.,8V3
CLEARANCE SONER-WITH,MERCURY GRAY MC.,1H9
91631J0612
main91631-J0612
9 parts on this diagram · 1 diagram in section
