OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

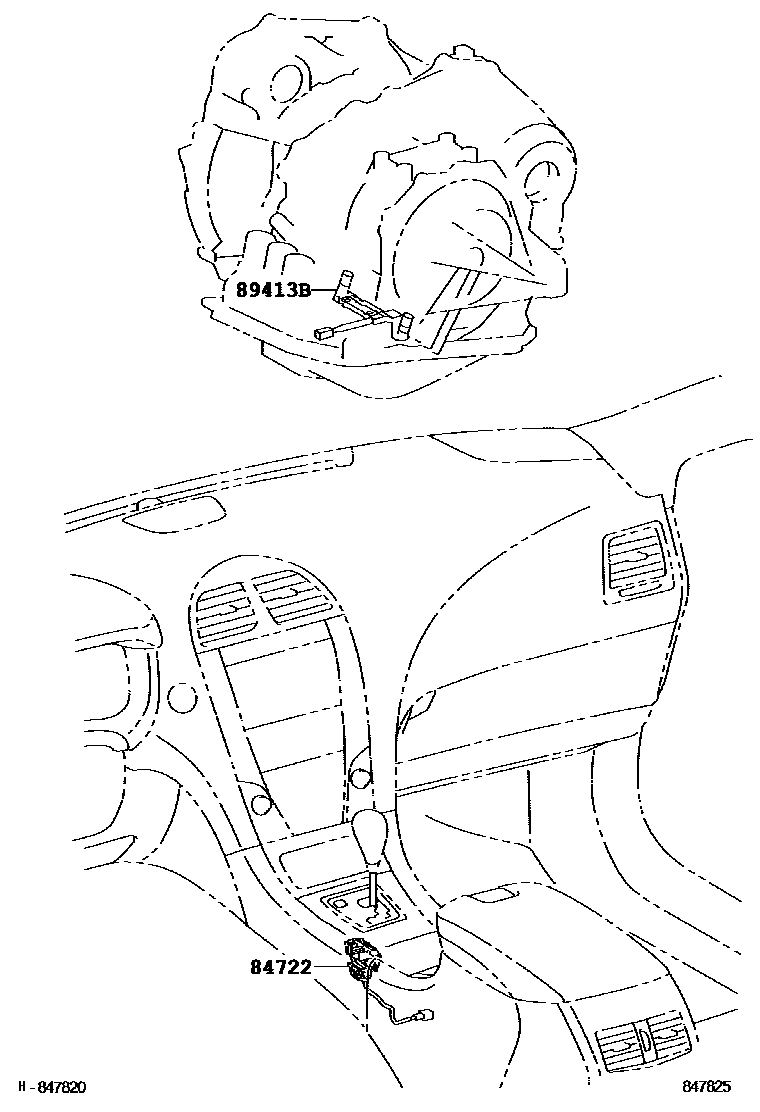

Parts diagram

84722SWITCH, TRANSMISSION CONTROL

main84722-33250i200603-200908

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-33030i200603-200908

2 parts on this diagram · 1 diagram in section
