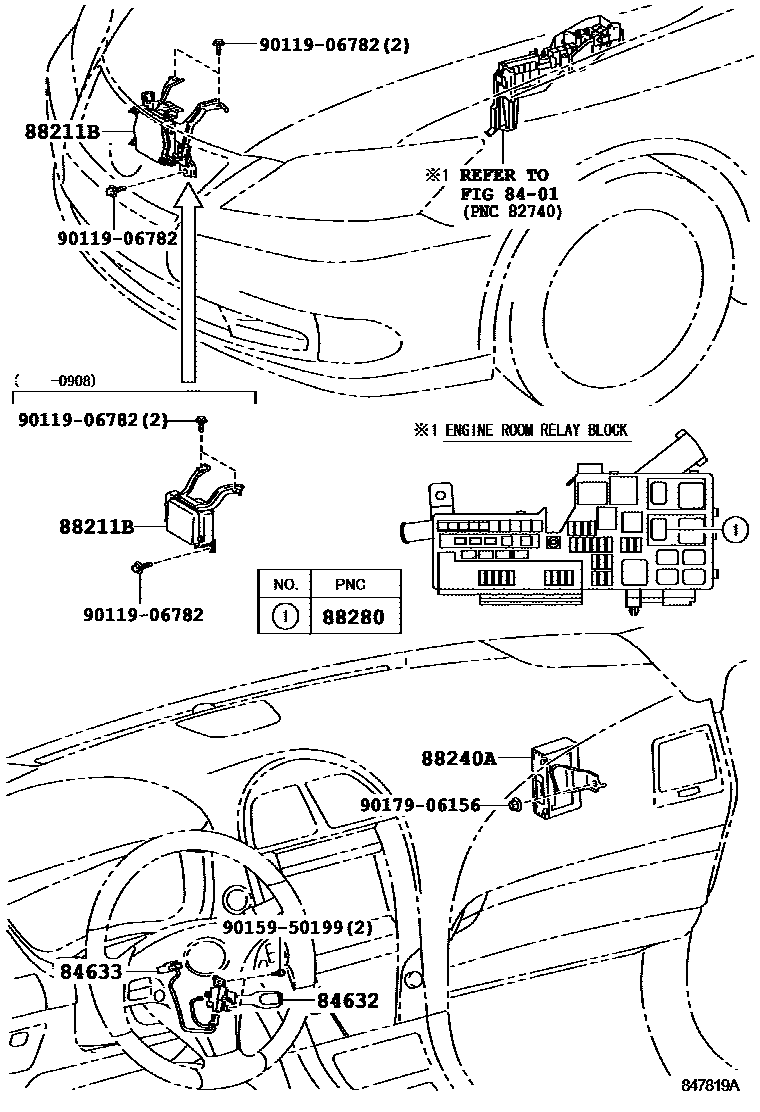

CRUISE CONTROL (AUTO DRIVE)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84632SWITCH, CRUISE CONTROL MAIN

main84632-58011supersedes 84632-34011iGSV40200908

PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)

84633WIRE, CRUISE CONTROL SWITCH

main84633-48010supersedes 84633-48020iGSV40200908

PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-33020iGSV40200603-200908

PRE-COLLISION SYSTEM-WITH

main88210-33040iGSV40200908-201204

PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)

88240ACOMPUTER ASSY, DISTANCE CONTROL

main88240-33220iGSV40200908

PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)

main88240-33270iGSV40200603-200908

PRE-COLLISION SYSTEM-WITH

88280RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B

main90987-04004iGSV40200603-200908

PRE-COLLISION SYSTEM-WITH

9011906782

main90119-06782

9015950199

main90159-50199

9017906156

main90179-06156

9 parts on this diagram · 1 diagram in section
