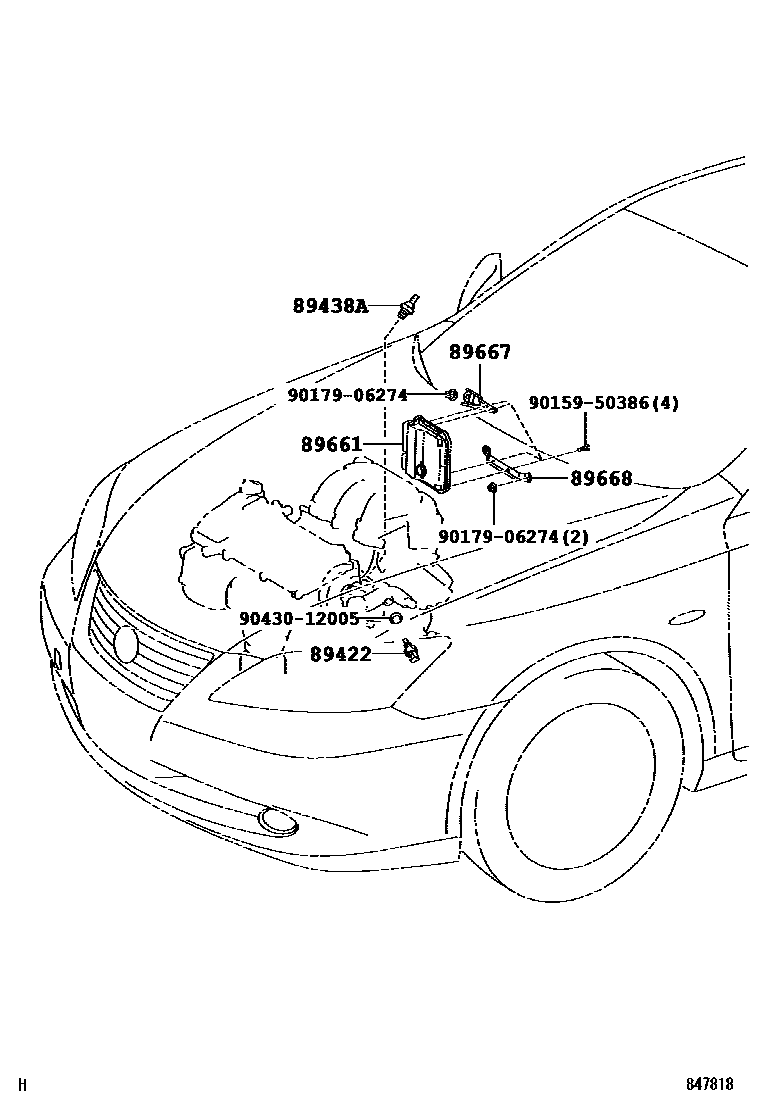

ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGSV40200908-201206

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iGSV40200908-201206

89661COMPUTER, ENGINE CONTROL

main89661-33E70iGSV40200707-200708

main89661-33J70iGSV40201008-201109

main89661-33K30iGSV40201109

main89661-33C40iGSV40200603-200808

BRAZIL SPEC

main89661-33C50supersedes 89661-3T831iGSV40200603-200707

TAIWAN SPEC

main89661-33C80iGSV40200808-200908

BRAZIL SPEC

main89661-33E00supersedes 89661-3T830iGSV40200603-200908

KOREA SPEC

main89661-33F60supersedes 89661-33F41iGSV40200908-201008

BRAZIL SPEC

main89661-33F70supersedes 89661-3T830iGSV40200908-201007

KOREA SPEC

main89661-33F71iGSV40201008

KOREA SPEC

main89661-33J80iGSV40201008

BRAZIL SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33140iGSV40200603-200908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33190iGSV40200603-200908

9015950386

main90159-50386

9017906274

main90179-06274

9043012005

main90430-12005

8 parts on this diagram · 1 diagram in section
