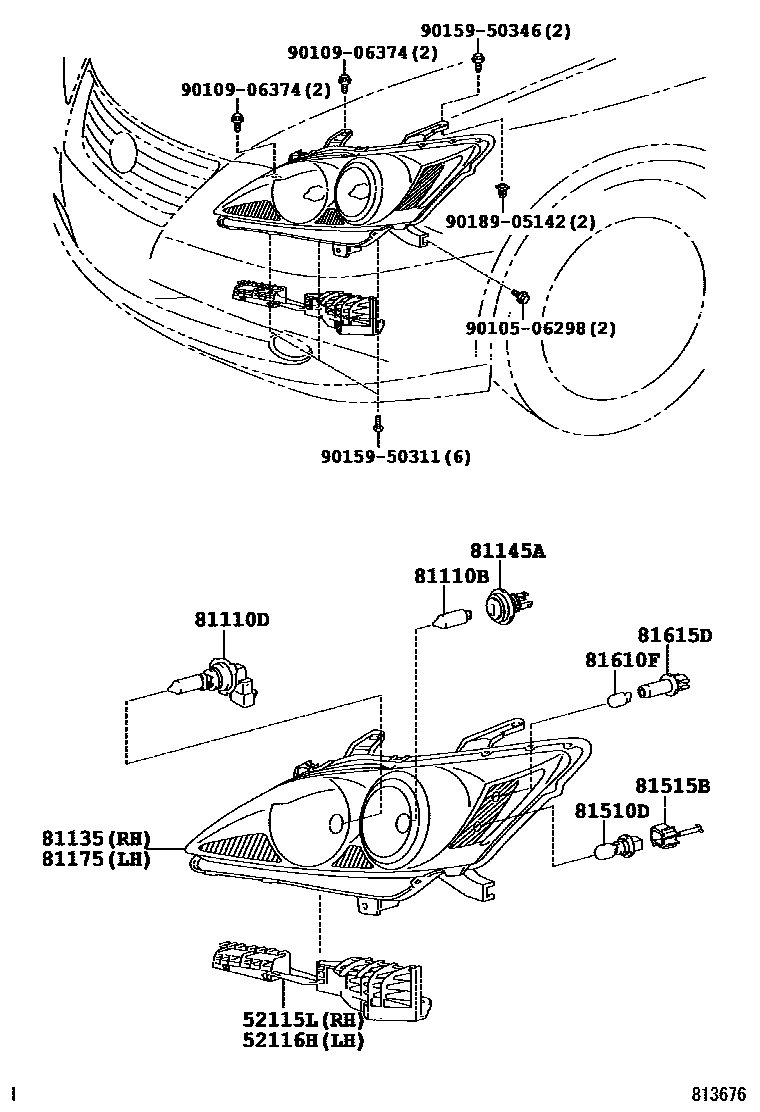

HEADLAMP

52115LSUPPORT, FRONT BUMPER SIDE, RH

main52115-33090i200603-200908

main52115-33100i200908

52116HSUPPORT, FRONT BUMPER SIDE, LH

main52116-33080i200603-200908

main52116-33090i200908

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13063×2i200603-200908

12V 55W,HALOGEN

main90981-13075×2i200908

12V 55W,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2supersedes 90981-13046i200603-200701

12V 65W,TAIWAN SPEC&HEADLAMP-DISCHARGE & WITH(AFS)

main90981-13046×2i200603-200701

12V65W(SAE),60W(ECE),HEADLAMP-DISCHARGE & WITH(AFS); 12V65W(SAE),60W(ECE),KOREA SPEC&HEADLAMP-DISCHARGE

81135UNIT ASSY, HEADLAMP, RH

main81145-33680supersedes 81130-33670i200603-200908

HEADLAMP-DISCHARGE & WITH(AFS); KOREA SPEC&HEADLAMP-DISCHARGE

main81145-33690supersedes 81130-33670i200603-200612

TAIWAN SPEC&HEADLAMP-DISCHARGE & WITH(AFS)

main81145-33691i200701-200707

TAIWAN SPEC&HEADLAMP-DISCHARGE & WITH(AFS)

main81145-33750supersedes 81130-33740i200908-201109

HEADLAMP-DISCHARGE & WITH(AFS)

main81145-33751supersedes 81130-33741i201109

HEADLAMP-DISCHARGE & WITH(AFS)

81145AADAPTER ASSY

main90075-99117×2i200603-200908

81175UNIT ASSY, HEADLAMP, LH

main81185-33680supersedes 81170-33670i200603-200908

HEADLAMP-DISCHARGE & WITH(AFS); KOREA SPEC&HEADLAMP-DISCHARGE

main81185-33690supersedes 81170-33670i200603-200612

TAIWAN SPEC&HEADLAMP-DISCHARGE & WITH(AFS)

main81185-33691i200701-200707

TAIWAN SPEC&HEADLAMP-DISCHARGE & WITH(AFS)

main81185-33750supersedes 81170-33740i200908-201109

HEADLAMP-DISCHARGE & WITH(AFS)

main81185-33751supersedes 81170-33741i201109

HEADLAMP-DISCHARGE & WITH(AFS)

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2i200603-200908

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2i200603-200908

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200603-200908

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2i200603-200908

9010506298

main90105-06298

9010906374

main90109-06374

9015950311

main90159-50311

9015950346

main90159-50346

9018905142

main90189-05142

16 parts on this diagram · 3 diagrams in section
