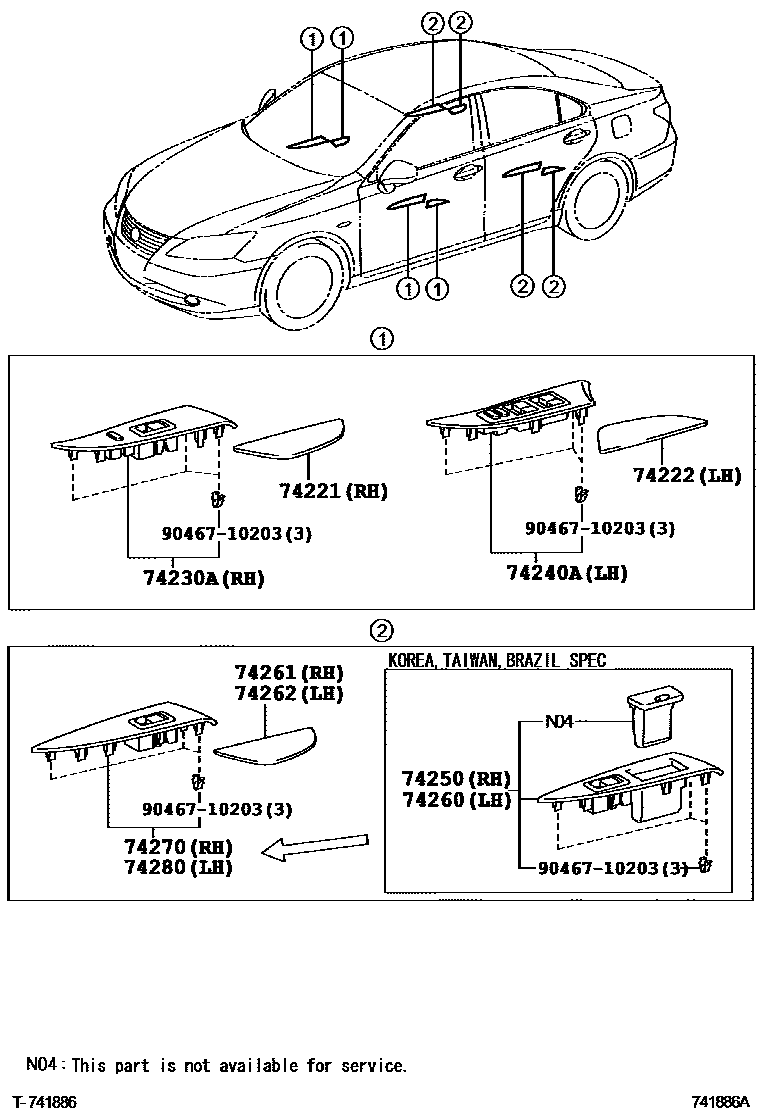

ARMREST & VISOR
74221COVER, DOOR ARMREST, RH
IVORY,TRIM0#
IVORY,TRIM0#
LIGHT GRAY,TRIM1#
BLACK,TRIM2#
74222COVER, DOOR ARMREST, LH
IVORY,TRIM0#
IVORY,TRIM0#
LIGHT GRAY,TRIM1#
BLACK,TRIM2#
74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH
BROWN,TRIM0#,1#,2#
MD.BROWN,TRIM00,10,20
DK.BROWN,TRIM01,11,21
MD.BROWN,TRIM00,10,20
DK.BROWN,TRIM01,11,21
74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH
BROWN,TRIM0#,1#,2#
BROWN,TRIM0#,1#,2#
MD.BROWN,TRIM00,10,20
DK.BROWN,TRIM01,11,21
MD.BROWN,TRIM00,10,20
DK.BROWN,TRIM01,11,21
74250ARMREST ASSY, REAR RH
BRAZIL SPEC,MD.BROWN,TRIM00,10,20; KOREA SPEC,MD.BROWN,TRIM00,10,20
BRAZIL SPEC,DK.BROWN,TRIM01,11,21; KOREA SPEC,DK.BROWN,TRIM01,11,21
BRAZIL SPEC,BROWN,TRIM0#,1#,2#; KOREA SPEC,BROWN,TRIM0#,1#,2#
BRAZIL SPEC,MD.BROWN,TRIM00,10,20; KOREA SPEC,MD.BROWN,TRIM00,10,20
BRAZIL SPEC,DK.BROWN,TRIM01,11,21; KOREA SPEC,DK.BROWN,TRIM01,11,21
74260ARMREST ASSY, REAR LH
BRAZIL SPEC,MD.BROWN,TRIM00,10,20; KOREA SPEC,MD.BROWN,TRIM00,10,20
BRAZIL SPEC,DK.BROWN,TRIM01,11,21; KOREA SPEC,DK.BROWN,TRIM01,11,21
BRAZIL SPEC,BROWN,TRIM0#,1#,2#; KOREA SPEC,BROWN,TRIM0#,1#,2#
BRAZIL SPEC,MD.BROWN,TRIM00,10,20; KOREA SPEC,MD.BROWN,TRIM00,10,20
BRAZIL SPEC,DK.BROWN,TRIM01,11,21; KOREA SPEC,DK.BROWN,TRIM01,11,21
74261COVER, REAR DOOR ARMREST, RH
IVORY,TRIM0#
IVORY,TRIM0#
LIGHT GRAY,TRIM10,11
BLACK,TRIM10,11,2#
74262COVER, REAR DOOR ARMREST, LH
IVORY,TRIM0#
IVORY,TRIM0#
LIGHT GRAY,TRIM1#
BLACK,TRIM2#
74270PANEL ASSY, REAR DOOR ARMREST BASE, RH
BROWN,TRIM0#,1#,2#
MD.BROWN,TRIM00,10,20
DK.BROWN,TRIM01,11,21
MD.BROWN,TRIM00,10,20
DK.BROWN,TRIM01,11,21
74280PANEL ASSY, REAR DOOR ARMREST BASE, LH
BROWN,TRIM0#,1#,2#
MD.BROWN,TRIM00,10,20
DK.BROWN,TRIM01,11,21
MD.BROWN,TRIM00,10,20
DK.BROWN,TRIM01,11,21
9046710203
main90467-10203
11 parts on this diagram · 2 diagrams in section
