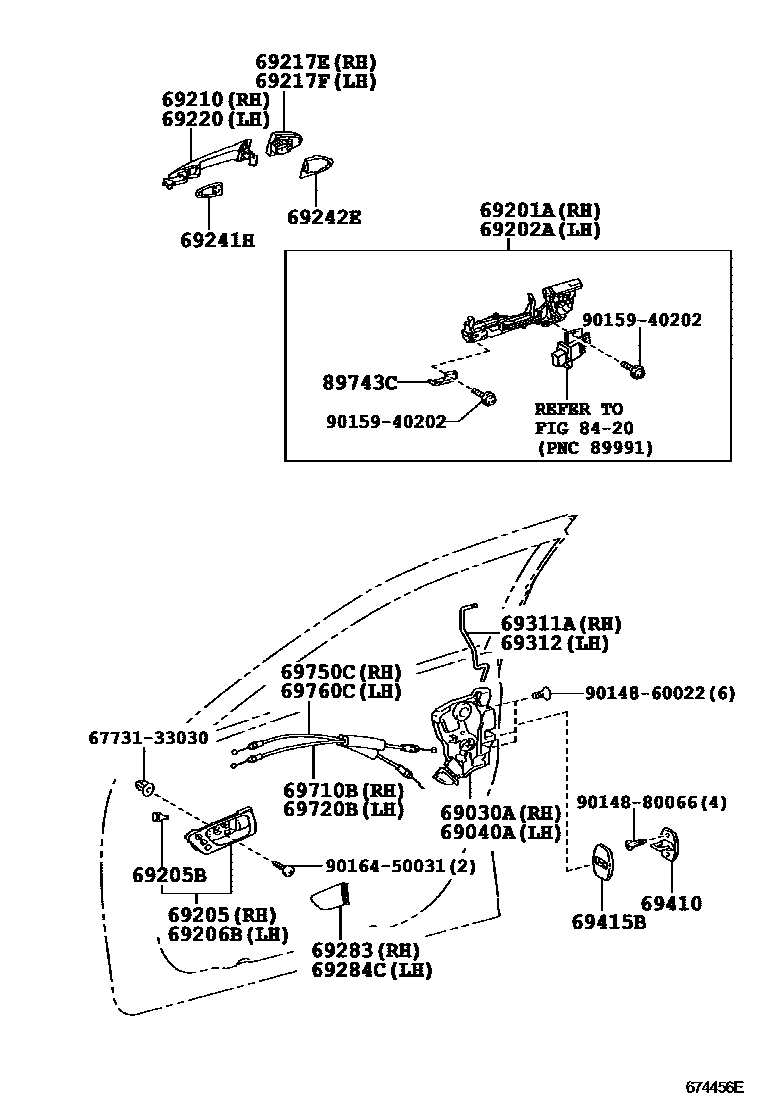

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM0#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
*CR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
*CR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
RH
LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
6773133030SPACER, SIDE TRIM, NO.1
main67731-33030
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9016450031
main90164-50031
30 parts on this diagram · 1 diagram in section
