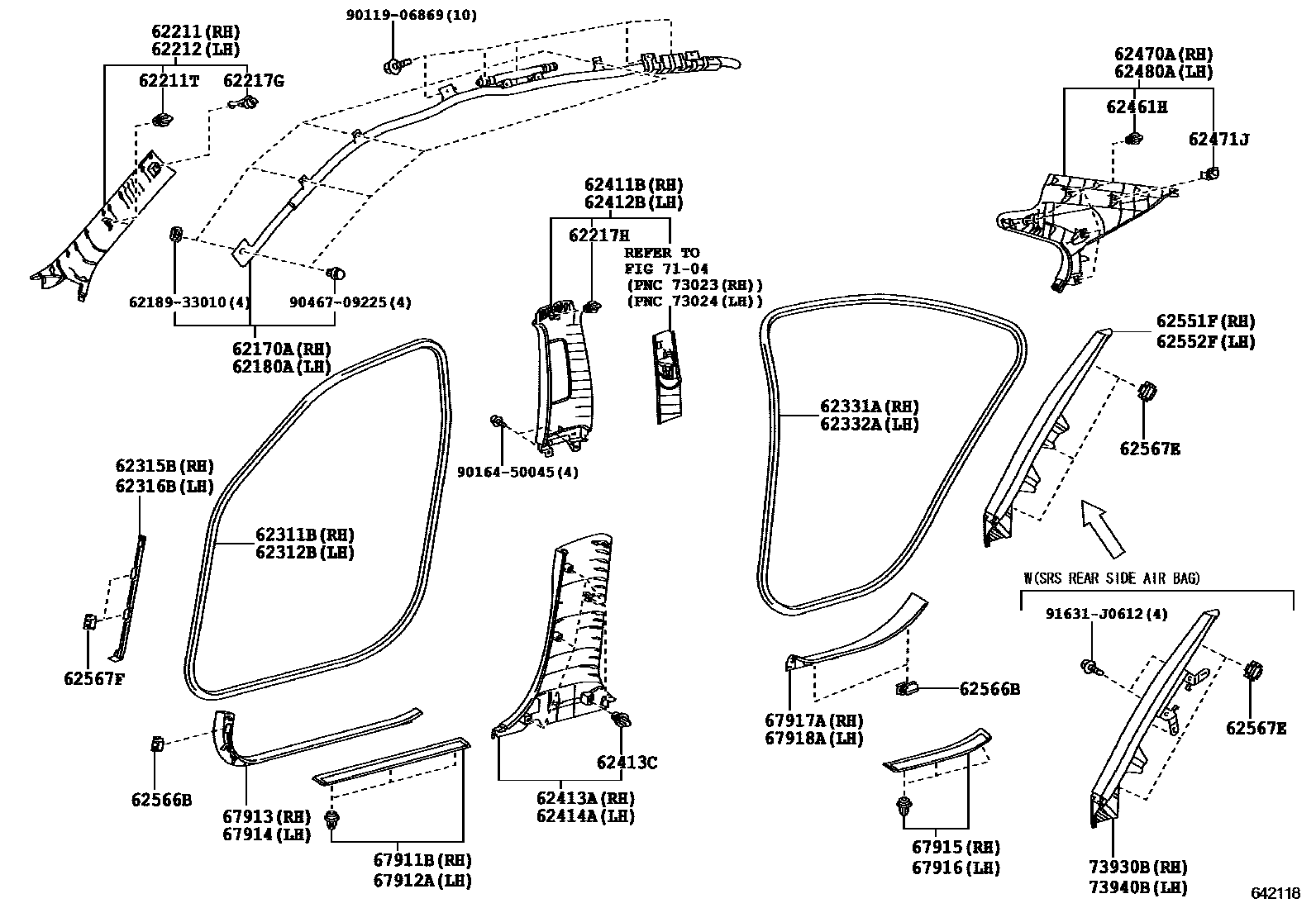

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-33050i200908

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-33050i200908

62211GARNISH, FRONT PILLAR, RH

main62210-33150-A0i200603-200908

IVORY,TRIM0#

main62210-33150-A1i200908-201206

IVORY,TRIM0#

main62210-33150-B1i200603-200908

LIGHT GRAY,TRIM1#,2#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161×2i200908

62212GARNISH, FRONT PILLAR, LH

main62220-33150-A0i200603-200908

IVORY,TRIM0#

main62220-33150-A1i200908-201206

IVORY,TRIM0#

main62220-33150-B1i200603-200908

LIGHT GRAY,TRIM1#,2#

62217GCLIP, FRONT PILLAR GARNISH

main90950-08004×2i200908

62217HCLIP, CENTER PILLER GARNISH

main62217-13010×2i200603-200908

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-33080i200603-200803

main62311-33081i200804-200908

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-33080i200603-200803

main62312-33081i200804-200908

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-33020-A0i200603-200908

IVORY,TRIM0#

main62315-33020-A1i200908-201206

IVORY,TRIM0#

main62315-33020-B0i200603-200908

LT.GRAY,TRIM1#

main62315-33020-C0i200603-200908

BLACK,TRIM2#

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-33030-A0i200603-200908

IVORY,TRIM0#

main62316-33030-A1i200908-201206

IVORY,TRIM0#

main62316-33030-B0i200603-200908

LT.GRAY,TRIM1#

main62316-33030-C0i200603-200908

BLACK,TRIM2#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-33100i200603-200803

main62331-33101i200804-200908

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-33100i200603-200803

main62332-33101i200804-200908

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-33150-A1i200603-200908

IVORY,TRIM0#

main62410-33150-B2i200603-200908

LIGHT.GRAY,TRIM1#,2#

main62410-33151-A2i200908-201206

IVORY,TRIM0#

main62410-33151-B2i200908-201206

LT.GRAY,TRIM1#,2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-33150-A1i200603-200908

IVORY,TRIM0#

main62420-33150-B2i200603-200908

LIGHT.GRAY,TRIM1#,2#

main62420-33151-A2i200908-201206

IVORY,TRIM0#

main62420-33151-B2i200908-201206

LT.GRAY,TRIM1#,2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-33080-A0i200603-200908

IVORY,TRIM0#

main62413-33080-A1i200908-201007

IVORY,TRIM0#

main62413-33080-B0i200603-200908

LT.GRAY,TRIM1#,25

main62413-33080-C0i200603-200908

BLACK,TRIM25

main62413-33090-A1i201008-201206

IVORY,TRIM0#

main62413-33090-C0i201008-201206

BLACK,TRIM1#,2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×10i200603-200908

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-33080-A0i200603-200908

IVORY,TRIM0#

main62414-33080-A1i200908-201007

IVORY,TRIM0#

main62414-33080-B0i200603-200908

LT.GRAY,TRIM1#,25

main62414-33080-C0i200603-200908

BLACK,TRIM25

main62414-33090-A1i201008-201206

IVORY,TRIM0#

main62414-33090-C0i201008-201206

BLACK,TRIM1#,2#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-10161×8i200603-200908

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-33170-A0i200603-200908

IVORY,TRIM0#

main62470-33170-A1i200908-201206

IVORY,TRIM0#

main62470-33170-B1i200603-200908

LIGHT GRAY,TRIM1#,2#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-09212×2i200603-200908

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-33170-A0i200603-200908

IVORY,TRIM0#

main62480-33170-A1i200908-201206

IVORY,TRIM0#

main62480-33170-B1i200603-200908

LIGHT GRAY,TRIM1#,2#

62551FGARNISH, REAR SEAT SIDE, RH

main62551-33050-A0i200603-200908

IVORY,TRIM0#; SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,IVORY,TRIM0#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,IVORY,TRIM0#

main62551-33050-B0i200603-200908

LT.GRAY,TRIM1#; SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,LT.GRAY,TRIM1#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,LT.GRAY,TRIM1#

main62551-33050-C0i200603-200908

BLACK,TRIM2#; SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,BLACK,TRIM2#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,BLACK,TRIM2#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-33060-A0i200603-200908

IVORY,TRIM0#; SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,IVORY,TRIM0#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,IVORY,TRIM0#

main62552-33060-B0i200603-200908

LT.GRAY,TRIM1#; SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,LT.GRAY,TRIM1#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,LT.GRAY,TRIM1#

main62552-33060-C0i200603-200908

BLACK,TRIM2#; SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,BLACK,TRIM2#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,BLACK,TRIM2#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-30010×6i200603-200908

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-30010×6i200603-200908

SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE

62567FCLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-30010×4i200603-200908

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-33060i200603-200908

main67911-33070i201008-201206

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-33060i200603-200908

main67912-33070i201008-201206

67913PLATE, FRONT DOOR SCUFF, RH

main67913-33090-A0i200603-200908

IVORY,TRIM0#

main67913-33090-A1i200908-201008

IVORY,TRIM0#

main67913-33090-B0i200603-200908

LT.GRAY,TRIM1#

main67913-33090-C0i200603-200908

BLACK,TRIM2#

main67913-33100-A1i201008-201206

IVORY,TRIM0#

main67913-33100-C0i201008-201206

BLACK,TRIM1#,2#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-33090-A0i200603-200908

IVORY,TRIM0#

main67914-33090-A1i200908-201008

IVORY,TRIM0#

main67914-33090-B0i200603-200908

LT.GRAY,TRIM1#

main67914-33090-C0i200603-200908

BLACK,TRIM2#

main67914-33100-A1i201008-201206

IVORY,TRIM0#

main67914-33100-C0i201008-201206

BLACK,TRIM1#,2#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-33060i200603-200908

main67915-33070i201008-201206

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-33060i200908-201008

main67916-33070i201008-201206

67917APLATE, REAR DOOR SCUFF, RH

main67917-33080-A0i200603-200908

IVORY,TRIM0#

main67917-33080-A1i200908-201008

IVORY,TRIM0#

main67917-33080-B0i200603-200908

LT.GRAY,TRIM1#

main67917-33080-C0i200908-201008

BLACK,TRIM1#,2#

main67917-33090-A1i201008-201206

IVORY,TRIM0#

main67917-33090-C0i201008-201206

BLACK,TRIM1#,2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-33080-A0i200603-200908

IVORY,TRIM0#

main67918-33080-A1i200908-201008

IVORY,TRIM0#

main67918-33080-B0i200603-200908

LT.GRAY,TRIM1#

main67918-33080-C0i200603-200908

BLACK,TRIM2#

main67918-33090-A1i201008-201206

IVORY,TRIM0#

main67918-33090-C0i201008-201206

BLACK,TRIM1#,2#

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

73930BAIRBAG, REAR SEAT, RH

main73930-33011-C0i200908-201206

BLACK,TRIM1#,2#

main73930-33010-A0supersedes 73930-33011-A1i200603-200807

SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,IVORY,TRIM0#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,IVORY,TRIM0#

main73930-33010-B0i200603-200807

SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,LT.GRAY,TRIM1#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,LT.GRAY,TRIM1#

main73930-33010-C0i200603-200807

SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,BLACK,TRIM2#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,BLACK,TRIM2#

main73930-33011-A0i200808-200908

SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,IVORY,TRIM0#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,IVORY,TRIM0#

main73930-33011-B0i200808-200908

SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,LT.GRAY,TRIM1#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,LT.GRAY,TRIM1#

73940BAIRBAG, REAR SEAT, LH

main73940-33011-C0i200908-201206

BLACK,TRIM1#,2#

main73940-33010-A0supersedes 73940-33011-A1i200603-200807

SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,IVORY,TRIM0#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,IVORY,TRIM0#

main73940-33010-B0i200603-200807

SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,LT.GRAY,TRIM1#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,LT.GRAY,TRIM1#

main73940-33010-C0i200603-200807

SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,BLACK,TRIM2#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,BLACK,TRIM2#

main73940-33011-A0i200808-200908

SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,IVORY,TRIM0#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,IVORY,TRIM0#

main73940-33011-B0i200808-200908

SRS AIR BAG-D,P & SIDE & CURTAIN & KNEE & RR SIDE,LT.GRAY,TRIM1#; SRS AIR BAG-D,P&SIDE&CURTAIN&KNEE&CUT OFFS/W&RR SIDE,LT.GRAY,TRIM1#

6218933010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH

main62189-33010

9011906869

main90119-06869

9016450045

main90164-50045

9046709225

main90467-09225

91631J0612

main91631-J0612

43 parts on this diagram · 1 diagram in section
