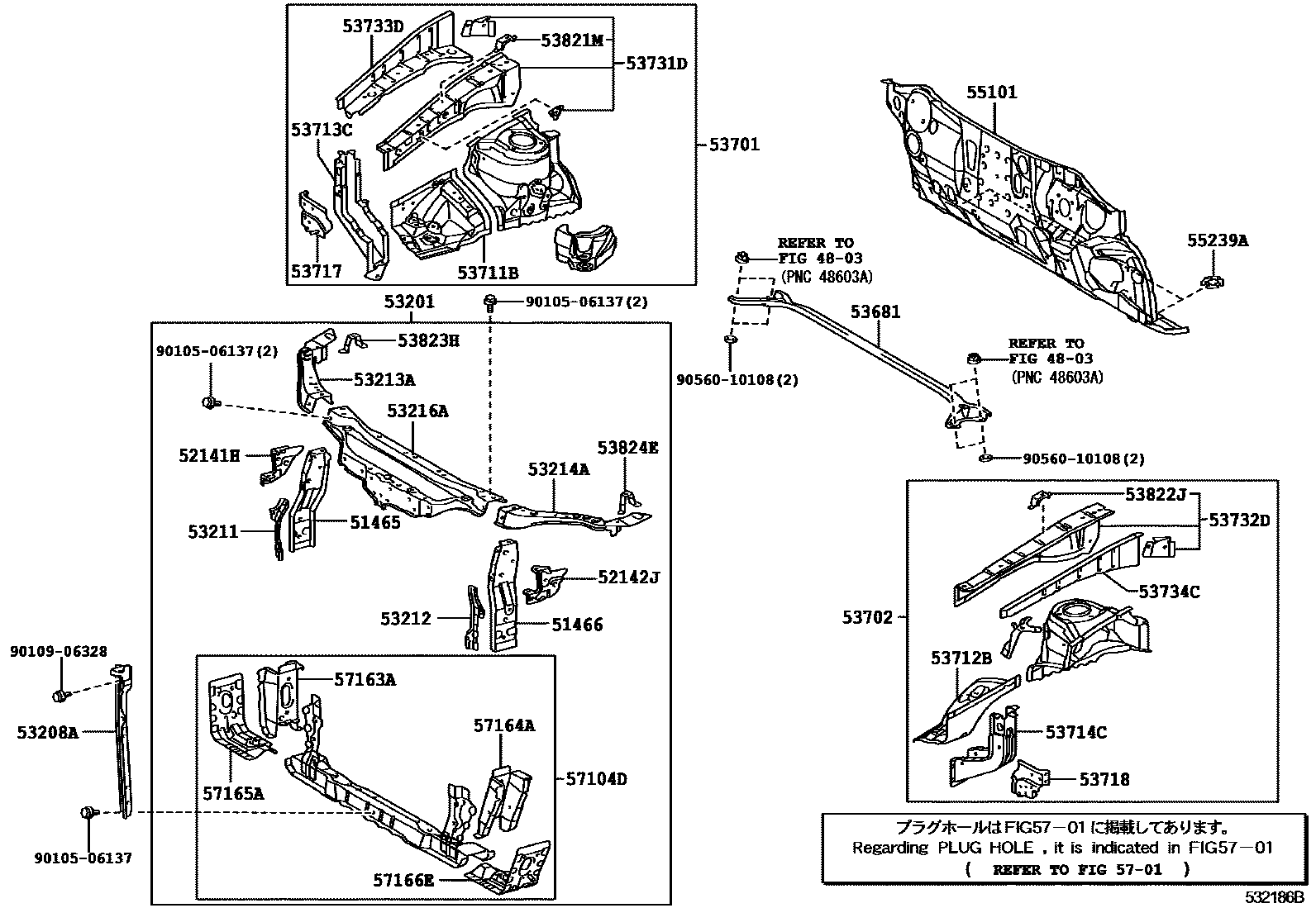

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1INSULATOR & SEAL

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

51465BRACE, RADIATOR SUPPORT, UPPER RH

main51465-33050iGSV40200603-200908

51466BRACE, RADIATOR SUPPORT, UPPER LH

main51466-33050iGSV40200603-200908

52141HARM, FRONT BUMPER, UPPER RH

main52141-33100iGSV40200603-200908

52142JARM, FRONT BUMPER, UPPER LH

main52142-33090iGSV40200603-200908

53201SUPPORT SUB-ASSY, RADIATOR

main53201-33200iGSV40200603-200908

main53201-33201iGSV40201009-201011

main53201-33202iGSV40201012

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-33040iGSV40200603-200908

53211SUPPORT, RADIATOR, RH

main53211-33080iGSV40200603-200908

main53211-33081iGSV40201012

53212SUPPORT, RADIATOR, LH

main53212-33080iGSV40200603-200908

main53212-33081iGSV40201012

53213ASUPPORT, RADIATOR, UPPER RH

main53213-33040iGSV40200603-200908

53214ASUPPORT, RADIATOR, UPPER LH

main53214-33040iGSV40200603-200908

53216ASUPPORT, RADIATOR, UPPER

main53216-33140iGSV40200603-200908

53681BRACE, FRONT SUSPENSION, UPPER CENTER

main53681-33050iGSV40200603-200908

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-33160iGSV40200603-200908

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-33120iGSV40200603-200908

53711BAPRON, FRONT FENDER, FRONT RH

main53711-33070iGSV40200603-200908

53712BAPRON, FRONT FENDER, FRONT LH

main53712-33040iGSV40200603-200908

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-33020iGSV40200603-200908

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-33020iGSV40200603-200908

53717PLATE, FENDER APRON, RH

main53717-33050iGSV40200603-200908

53718PLATE, FENDER APRON, LH

main53718-33040iGSV40200603-200908

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-33903iGSV40200603-200908

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-33902iGSV40200603-200908

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-33040iGSV40200603-200908

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-33040iGSV40200603-200908

53821MBRACKET, FRONT FENDER, REAR NO.1 RH

main53821-33040iGSV40200603-200908

53822JBRACKET, FRONT FENDER, REAR NO.1 LH

main53822-33030iGSV40200603-200908

53823HGUSSET, FRONT FENDER, RH

main53823-33020iGSV40200603-200908

53824EGUSSET, FRONT FENDER, LH

main53824-33020iGSV40200908

55101PANEL SUB-ASSY, DASH

main55101-33400iGSV40200603-200908

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-33020×2iGSV40200603-200908

5701HOLE PLUG

→ Go to FIG 57-01

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-33060iGSV40200603-200908

main57104-33061iGSV40201009

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-33040iGSV40200603-200908

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-33040iGSV40200603-200908

57165AREINFORCEMENT, FRONT CROSSMEMBER, NO.2

main57165-33020iGSV40200603-200908

main57165-33021iGSV40201009

57166EREINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH

main57166-33030iGSV40200603-200908

main57166-33031iGSV40201009

9010506137

main90105-06137

9010906328

main90109-06328

9056010108

main90560-10108

40 parts on this diagram · 2 diagrams in section
