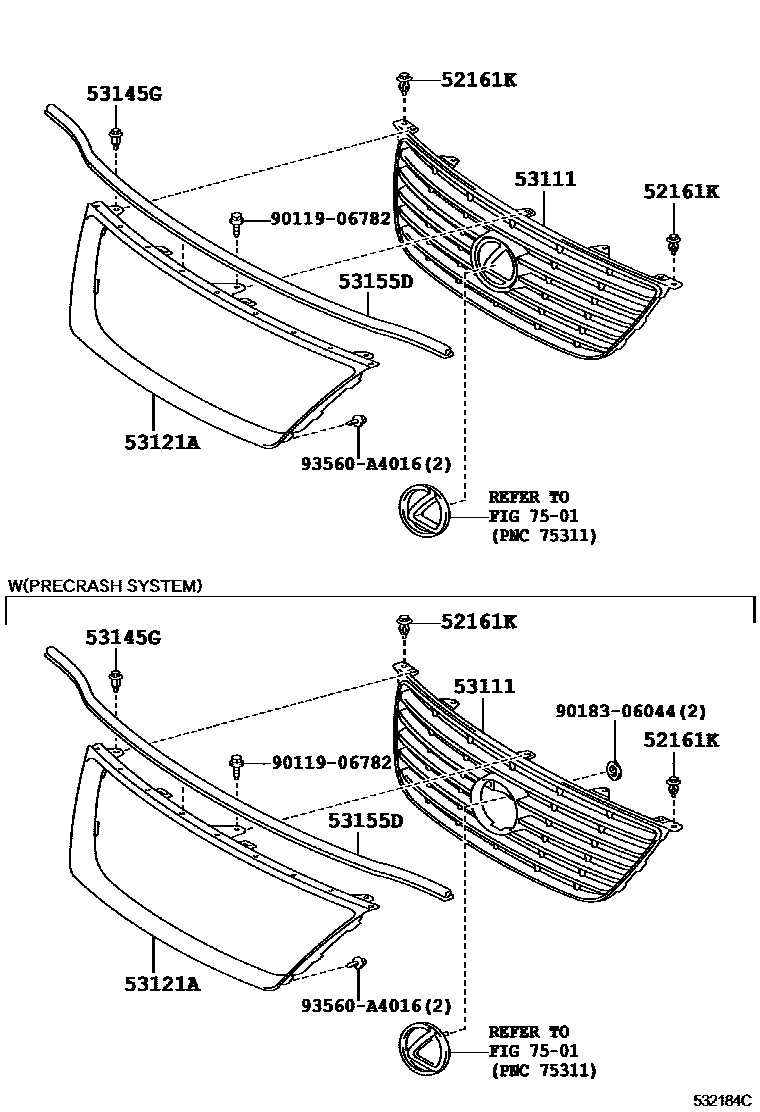

RADIATOR GRILLE

0001 1 0002 1

52161KPIECE, FRONT BUMPER

main52161-16010×2iGSV40200603-200908

53111GRILLE, RADIATOR

main53111-33270supersedes 53112-33080iGSV40200603-200908

PLATED,PRE-COLLISION SYSTEM-WITH

main53112-33090supersedes 53112-33080iGSV40200908-201206

PLATED,PRE-COLLISION SYSTEM-WITH(WITHOUT/PRE-COLLISION BRAKE)

53121AMOULDING, RADIATOR GRILLE

main52711-33080iGSV40200603-200908

main53111-33350iGSV40200908

53145GCLIP, RADIATOR GRILLE

main90467-07201×2iGSV40200603-200908

53155DSEAL, RADIATOR GRILLE, NO.1

main53155-33030iGSV40200603-200908

main53155-33040iGSV40200908

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9011906782

main90119-06782

9018306044

main90183-06044

93560A4016

main93560-A4016

9 parts on this diagram · 2 diagrams in section
