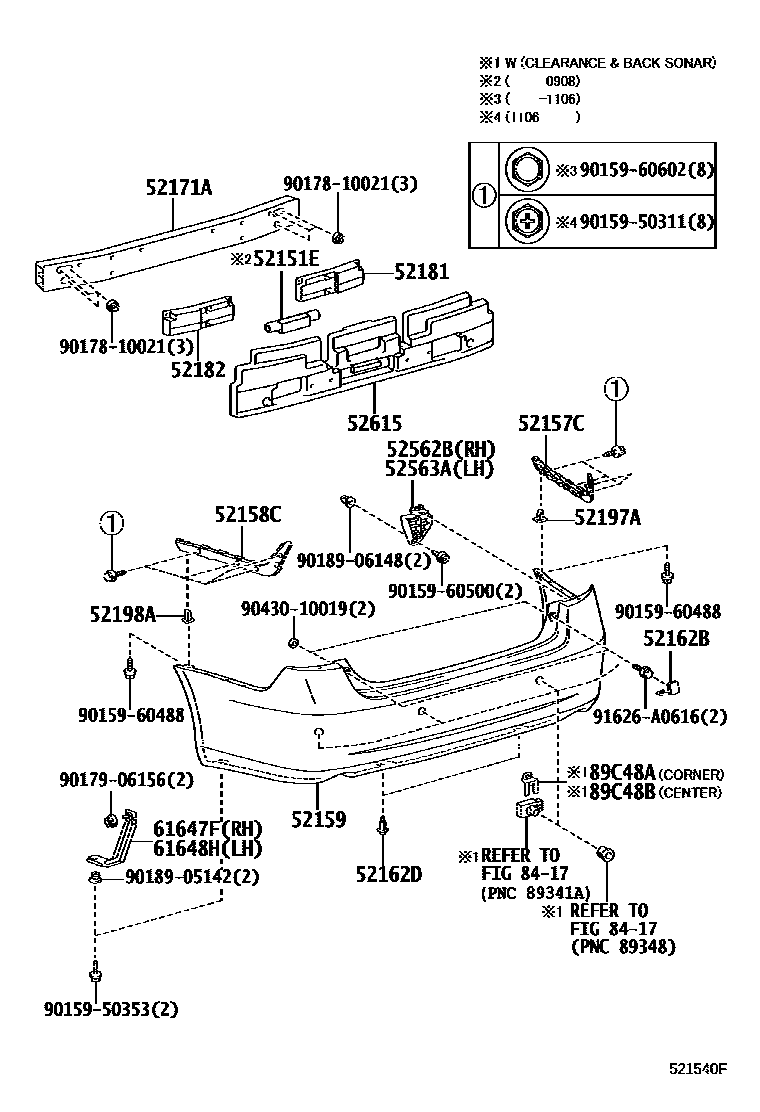

REAR BUMPER & BUMPER STAY

52151EBAR, REAR BUMPER

main52151-50010iGSV40200603-200907

NO PAINT REQ.

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-33020iGSV40200603-200908

main52157-33021iGSV40201106

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-33020iGSV40200908-201106

main52158-33021iGSV40201106

52159COVER, REAR BUMPER

main52159-33923supersedes 52159-33922iGSV40200908-201206

PAINT REQ.,CLEARANCE SONER-WITH

52162BPLATE, REAR BUMPER, NO.1

main52162-30911×2iGSV40200603-200908

CLEARANCE SONER-WITH

52162DPIECE, REAR BUMPER

main52161-16010×2iGSV40200603-200908

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-33050iGSV40200908-201008

BRAZIL SPEC; CANADA SPEC; KOREA SPEC

main52171-33140supersedes 52023-33050iGSV40201008-201206

52181ARM, REAR BUMPER, RH

main52181-33040iGSV40200603-200908

52182ARM, REAR BUMPER, LH

main52182-33010iGSV40200908

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-22020iGSV40200908

52198ABRACKET, REAR BUMPER SEAL, LH

main52197-22020iGSV40200603-200908

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-33030iGSV40200908

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-33030iGSV40200603-200908

52615ABSORBER, REAR BUMPER ENERGY

main52615-33130iGSV40200908

61647FREINFORCEMENT, WHEEL HOUSE, RH

main61647-33050iGSV40200603-200908

61648HREINFORCEMENT, WHEEL HOUSE, LH

main61648-33050iGSV40200603-200908

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-33020×2iGSV40200603-200908

CLEARANCE SONER-WITH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-33020×2iGSV40200908-201206

CLEARANCE SONER-WITH

9015950311

main90159-50311

9015950353

main90159-50353

9015960488

main90159-60488

9015960500

main90159-60500

9015960602

main90159-60602

9017810021

main90178-10021

9017906156

main90179-06156

9018905142

main90189-05142

9018906148

main90189-06148

9043010019

main90430-10019

91626A0616

main91626-A0616

30 parts on this diagram · 1 diagram in section
