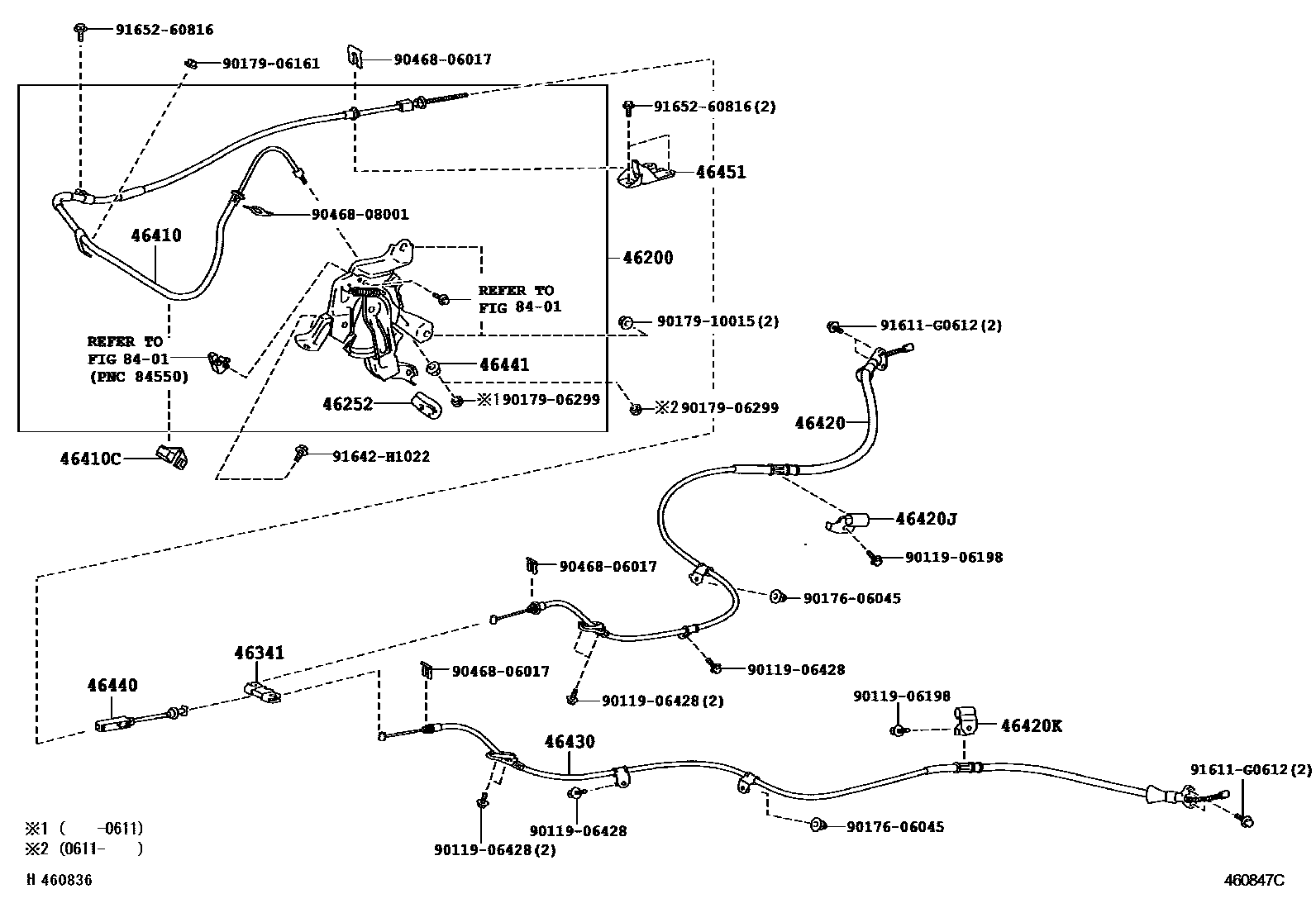

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-33090iGSV40200603-200611

main46200-33110iGSV40200611-200908

46252PAD, PARKING PEDAL

main46252-22010iGSV40200603-200908

46341EQUALIZER, PARKING BRAKE

main46341-33030iGSV40200603-200908

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-33170iGSV40200603-200908

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-33010iGSV40200603-200908

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-33170iGSV40200603-201203

sub46420-33171

main46420-33171iGSV40201204

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01C61iGSV40200603-200908

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01C62iGSV40200603-200908

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-33170iGSV40200603-201203

sub46430-33171

main46430-33171iGSV40201204

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-33061iGSV40200603-200908

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGSV40200603-200908

46451BRACKET, CABLE SUPPORT

main46451-33100iGSV40200603-200908

8401

9011906198

main90119-06198

9011906428

main90119-06428

9017606045

main90176-06045

9017906161

main90179-06161

9017906299

main90179-06299

9017910015

main90179-10015

9046806017

main90468-06017

9046808001

main90468-08001

91611G0612

main91611-G0612

91642H1022

main91642-H1022

9165260816

main91652-60816

24 parts on this diagram · 2 diagrams in section
