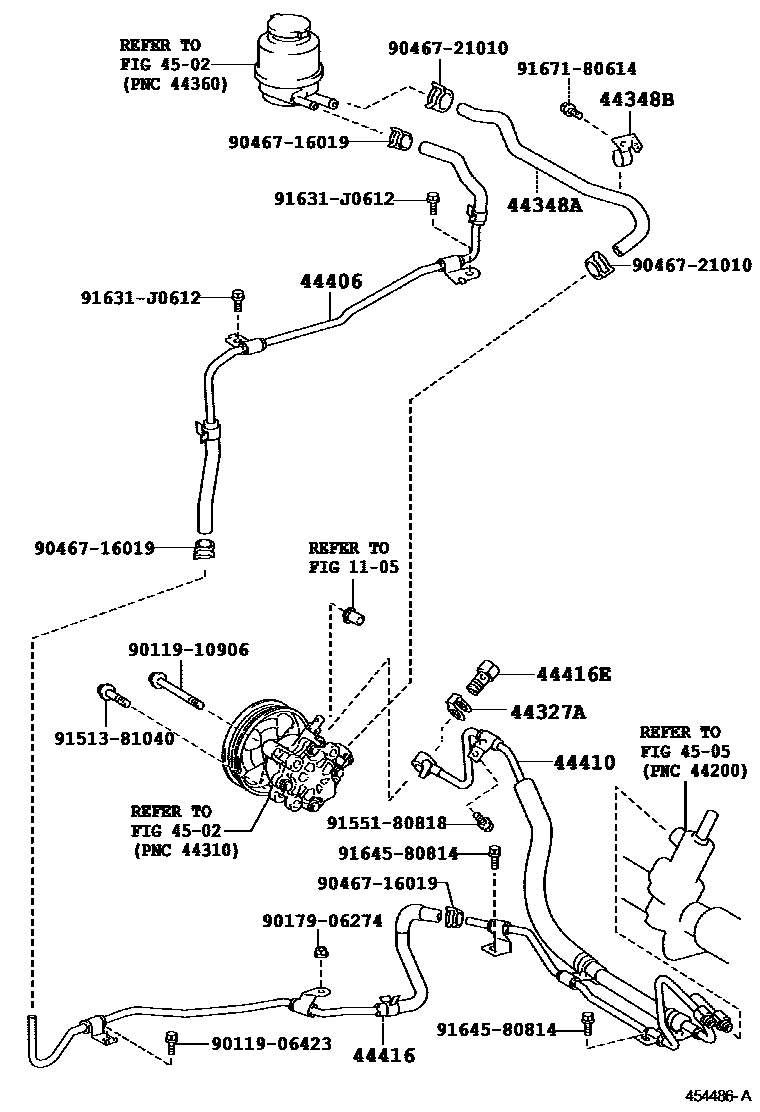

POWER STEERING TUBE

1105CYLINDER BLOCK

→ Go to FIG 11-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iGSV40200603-200908

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33250iGSV40200707-200908

main44348-33260iGSV40200611-200707

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main44349-41010iGSV40200603-200908

44406TUBE SUB-ASSY, RETURN

main44406-33120iGSV40200603-200607

main44406-33121iGSV40200908

44410TUBE ASSY, PRESSURE FEED

main44410-33240iGSV40200603-200901

main44410-33241iGSV40200902-200904

main44410-33242iGSV40200905-200908

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-33210iGSV40200603-200607

main44416-33211iGSV40200607-200908

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iGSV40200603-200908

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906423

main90119-06423

9011910906

main90119-10906

9017906274

main90179-06274

9046716019

main90467-16019

9046721010

main90467-21010

9151381040

main91513-81040

9155180818

main91551-80818

91631J0612

main91631-J0612

9164580814

main91645-80814

9167180614

main91671-80614

20 parts on this diagram · 1 diagram in section
