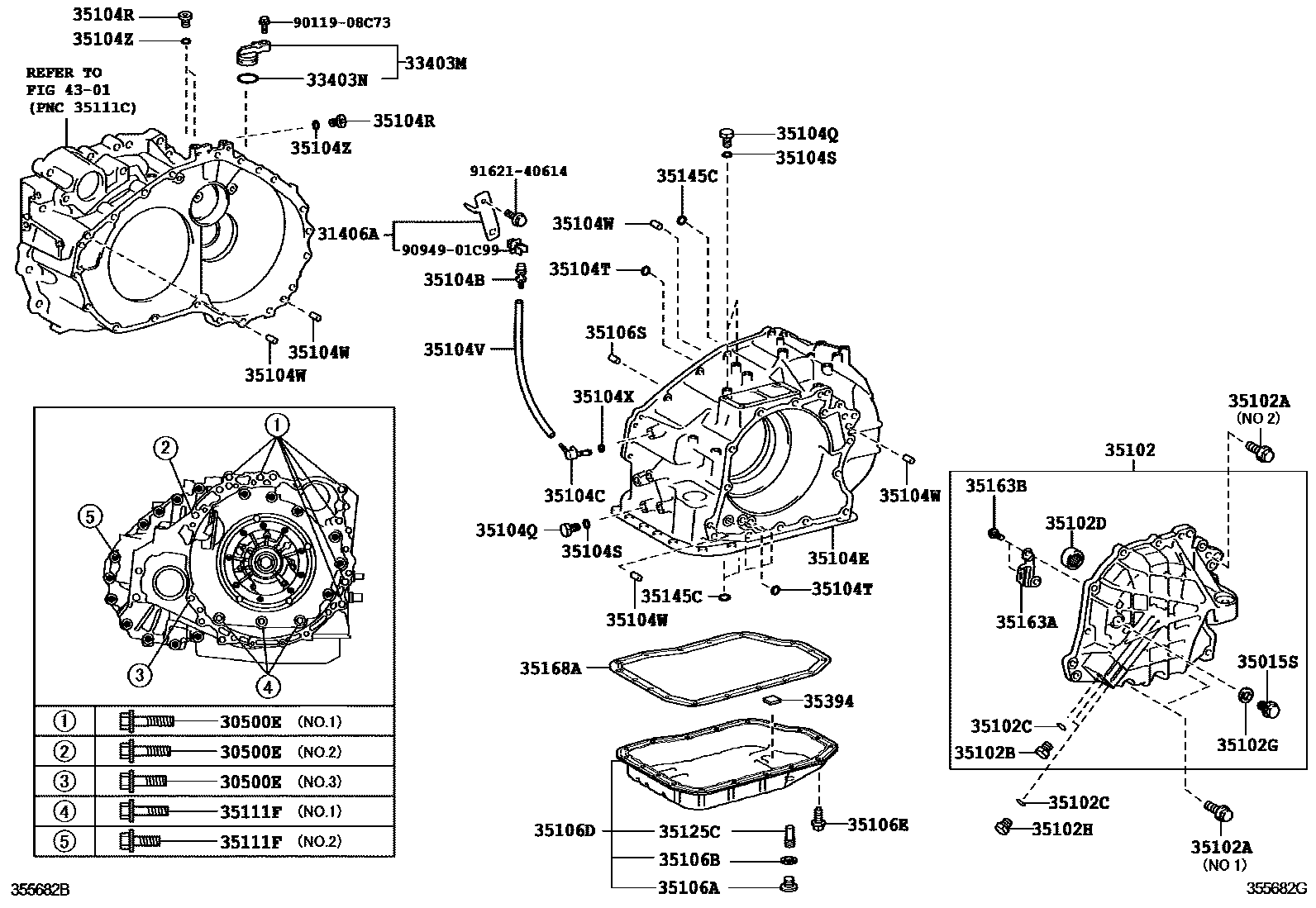

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10425iGSV40200603-200908

*10-1.25PX41-28,NO.3

main90119-12168×6iGSV40200908-201206

*12-1.25PX55-30,NO.1

main90119-12250iGSV40200908-201206

*12-1.25PX50-30,NO.2

31406ABRACKET SUB-ASSY, FLEXIBLE HOSE

main31406-33020iGSV40200603-200908

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-35230iGSV40200603-200908

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24030iGSV40200603-200908

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iGSV40200603-200908

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-33060iGSV40200603-200908

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2iGSV40200603-200908

*8-1.25PX28-22,NO.1

main91551-00828×12iGSV40200908

*8-1.25PX28-22,NO.2

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001iGSV40200908

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196×3iGSV40200603-200908

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-18010iGSV40200603-200908

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iGSV40200603-200908

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2iGSV40200603-200908

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iGSV40200603-200908

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187iGSV40200603-200908

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35141-33070iGSV40200603-200805

main35141-33071iGSV40200805-200908

main35141-33072iGSV40201203

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3iGSV40200603-200908

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×3iGSV40200603-200908

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×3iGSV40200603-200908

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4iGSV40201108

main90301-10189×4iGSV40200908-201108

35104VHOSE (FOR BREATHER PLUG)

main35121-33040iGSV40200603-200804

main35121-73010iGSV40200908

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5iGSV40200603-200908

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iGSV40200603-200908

main90301-06021iGSV40201105

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iGSV40200603-200908

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iGSV40200603-200908

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iGSV40200603-200908

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33060iGSV40200603-200707

main35106-33061iGSV40200707-200908

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iGSV40200603-200908

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007iGSV40200603-200908

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3iGSV40200908

*8-1.25PX45-22,NO.1

main91551-10845×17iGSV40200603-200908

*8-1.25PX45-22,NO.2

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-33130iGSV40200603-200908

35145CGASKET, TRANSAXLE CASE

main35145-33010×3iGSV40200908

35163APLATE, TRANSAXLE REAR COVER

main35163-33010iGSV40200603-200908

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055×2iGSV40200603-200908

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-33080iGSV40200603-200908

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iGSV40200603-200908

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9011908C73

main90119-08C73

9094901C99

main90949-01C99

9162140614

main91621-40614

39 parts on this diagram · 1 diagram in section
