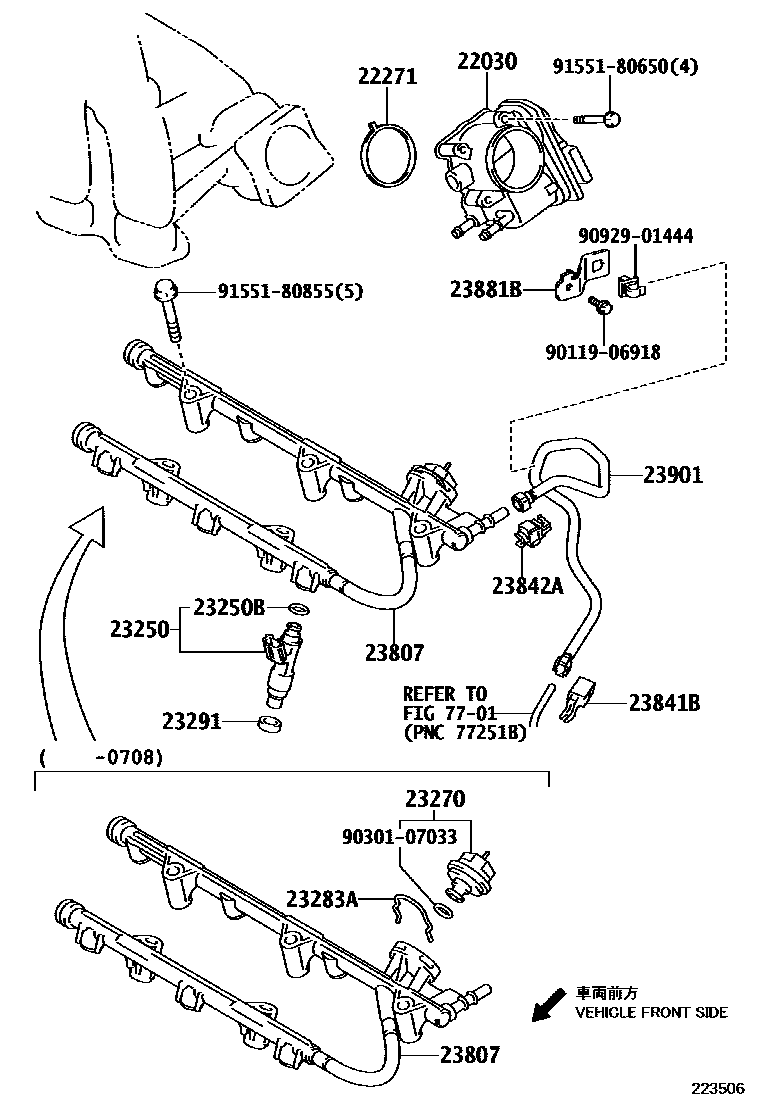

FUEL INJECTION SYSTEM

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31030i2GRFE..GSV40200603-200908

22271GASKET, THROTTLE BODY

main22271-31040i2GRFE..GSV40200603-200908

23250INJECTOR ASSY, FUEL

main23209-31050×6i2GRFE..GSV40200603-200908

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i2GRFE..GSV40200603-200908

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31010i2GRFE..GSV40200603-200708

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i2GRFE..GSV40200603-200708

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i2GRFE..GSV40200603-200908

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31040i2GRFE..GSV40200603-200708

main23807-31090i2GRFE..GSV40200708-200908

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i2GRFE..GSV40200607-200908

main23841-28010i2GRFE..GSV40200603-200606

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31040i2GRFE..GSV40200603-200908

23881BBRACKET, FUEL HOSE

main23881-31020i2GRFE..GSV40200603-200908

23901TUBE SUB-ASSY, FUEL

main23901-31060i2GRFE..GSV40200603-200908

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906918

main90119-06918

9030107033

main90301-07033

9092901444

main90929-01444

9155180650

main91551-80650

9155180855

main91551-80855

18 parts on this diagram · 1 diagram in section
