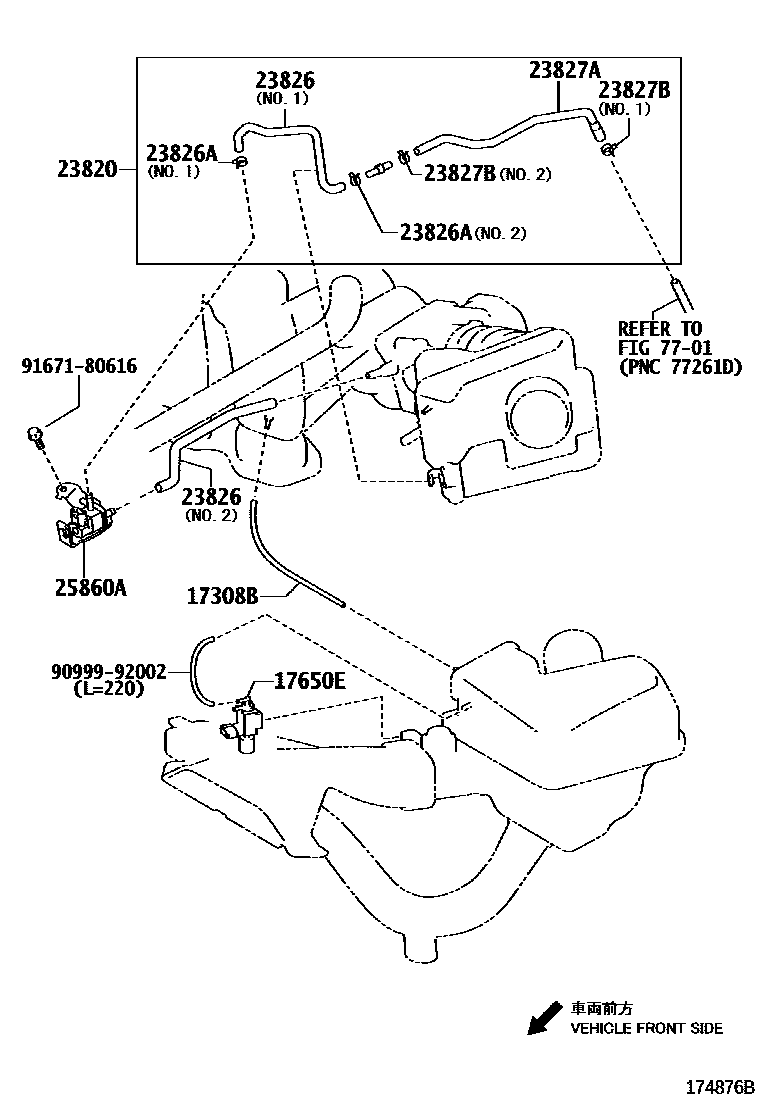

VACUUM PIPING

17308BHOSE SUB-ASSY, VACUUM

main17308-31030i2GRFE..GSV40200908-201008

main90999-92003i2GRFE..GSV40201009

17650EVALVE, VACUUM SWITCHING

main90910-12088i2GRFE..GSV40200603-200908

23820HOSE ASSY, FUEL VAPOR FEED

main23820-31050i2GRFE..GSV40200603-200608

main23820-31130i2GRFE..GSV40200609-200908

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31060i2GRFE..GSV40200603-200608

NO.1

main23826-31080i2GRFE..GSV40200603-200908

NO.2

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2GRFE..GSV40200609-200908

NO.1

main96132-51100i2GRFE..GSV40200609-200908

NO.2

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-31090i2GRFE..GSV40200603-200608

main23827-31130i2GRFE..GSV40200609-200908

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51100i2GRFE..GSV40200609-200908

NO.2

main96132-51300i2GRFE..GSV40200609-200908

NO.1

25860AVALVE, VACUUM SWITCHING, NO.1

main25860-31070i2GRFE..GSV40200603-200908

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9099992002

main90999-92002

9167180616

main91671-80616

11 parts on this diagram · 1 diagram in section
