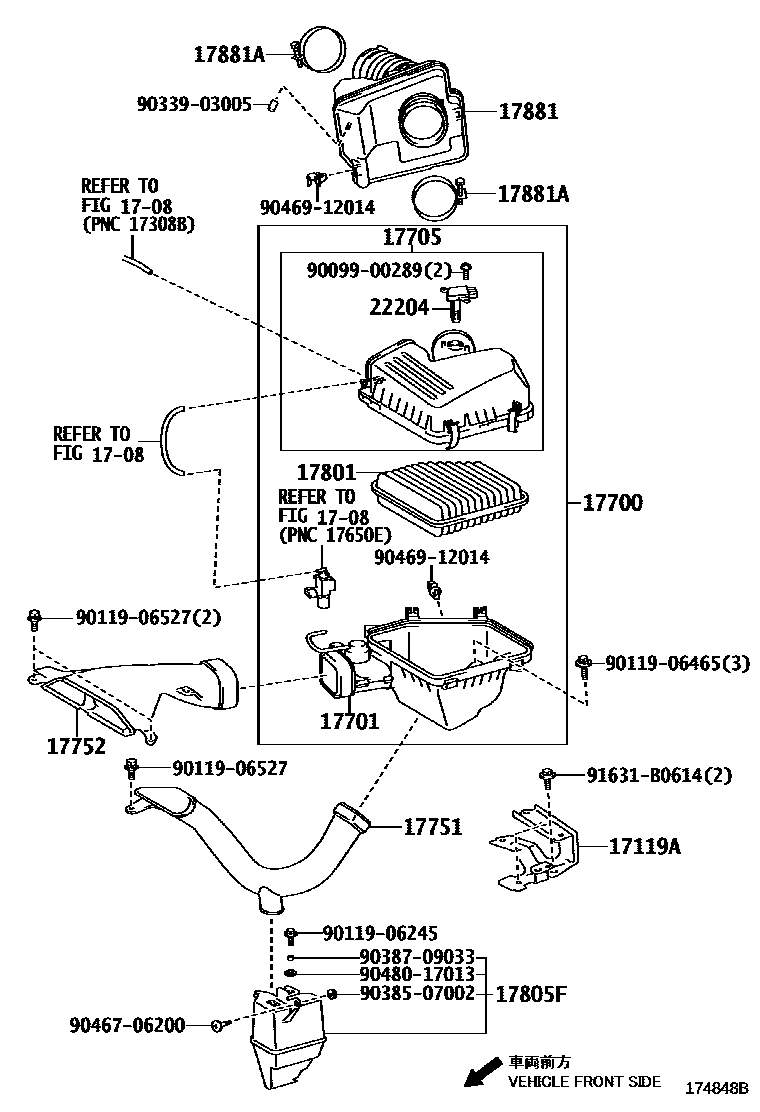

AIR CLEANER

1708VACUUM PIPING

→ Go to FIG 17-08

17119ABRACKET, AIR CLEANER

main17119-31050i2GRFE..GSV40200908

17700CLEANER ASSY, AIR

main17700-31610i2GRFE..GSV40200603-200701

main17700-31740i2GRFE..GSV40200702-200908

main17700-31741i2GRFE..GSV40201104

17701CASE SUB-ASSY, AIR CLEANER

main17701-31530i2GRFE..GSV40200603-200908

17705CAP SUB-ASSY, AIR CLEANER

main17705-31160i2GRFE..GSV40200603-200701

main17705-31270i2GRFE..GSV40200702-200908

main17705-31271i2GRFE..GSV40201104

17751INLET, AIR CLEANER, NO.1

main17751-31120i2GRFE..GSV40200603-200908

17752INLET, AIR CLEANER, NO.2

main17752-31020i2GRFE..GSV40200908

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31120i2GRFE..GSV40200908

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-31020i2GRFE..GSV40200603-200908

17881HOSE, AIR CLEANER, NO.1

main17881-31140i2GRFE..GSV40200603-200908

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10900×2i2GRFE..GSV40200908

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0H010i2GRFE..GSV40201104

MARK 22204-0H010

main22204-0P010i2GRFE..GSV40201104

MARK 22204-0P010

main22204-0T010i2GRFE..GSV40201104

MARK 22204-0T010

main22204-31010i2GRFE..GSV40200603-200701

main22204-31020i2GRFE..GSV40200702-200908

9009900289

main90099-00289

9011906245

main90119-06245

9011906465

main90119-06465

9011906527

main90119-06527

9033903005

main90339-03005

9038507002

main90385-07002

9038709033

main90387-09033

9046706200

main90467-06200

9046912014

main90469-12014

9048017013

main90480-17013

91631B0614

main91631-B0614

23 parts on this diagram · 1 diagram in section
