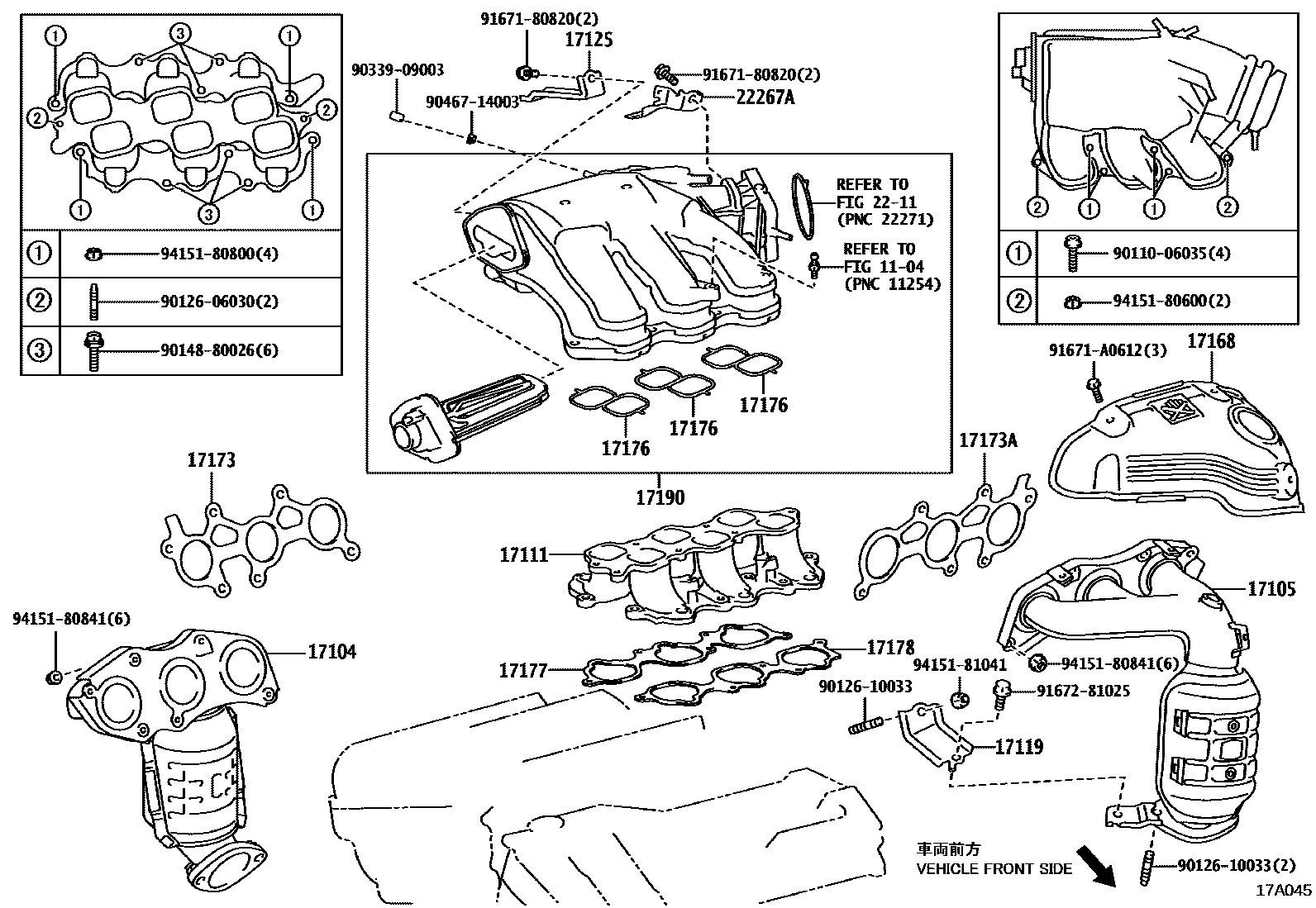

MANIFOLD
1104
17104MANIFOLD SUB-ASSY, EXHAUST, RH
*114=TOYOTA/R0P041/Y,(L)
17105MANIFOLD SUB-ASSY, EXHAUST, LH
17111MANIFOLD, INTAKE
17119STAY, MANIFOLD, NO.2
17125STAY, SURGE TANK, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
2211
22267ABRACKET, THROTTLE BODY
9011006035
main90110-06035
9012606030
main90126-06030
9012610033
main90126-10033
9014880026
main90148-80026
9033909003
main90339-09003
9046714003
main90467-14003
9167180820
main91671-80820
91671A0612
main91671-A0612
9167281025
main91672-81025
9415180600
main94151-80600
9415180800
main94151-80800
9415180841
main94151-80841
9415181041
main94151-81041
28 parts on this diagram · 1 diagram in section
