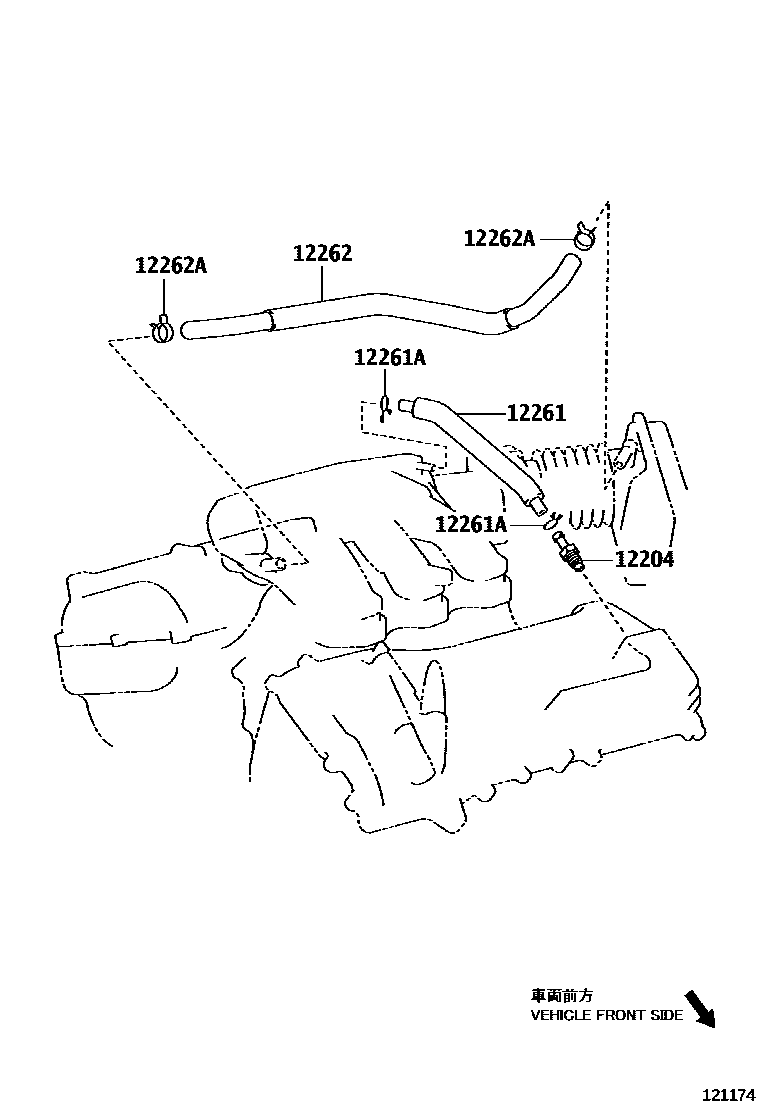

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-31040supersedes 12204-31120i2GRFE..GSV40200812-200908

BRAZIL SPEC; KOREA SPEC

12261HOSE, VENTILATION

main12261-31070supersedes 12261-31090i2GRFE..GSV40200603-200908

BRAZIL SPEC; KOREA SPEC

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017×2i2GRFE..GSV40200908

12262HOSE, VENTILATION, NO.2

main12262-31070i2GRFE..GSV40200603-200908

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004×2i2GRFE..GSV40200908

5 parts on this diagram · 1 diagram in section
