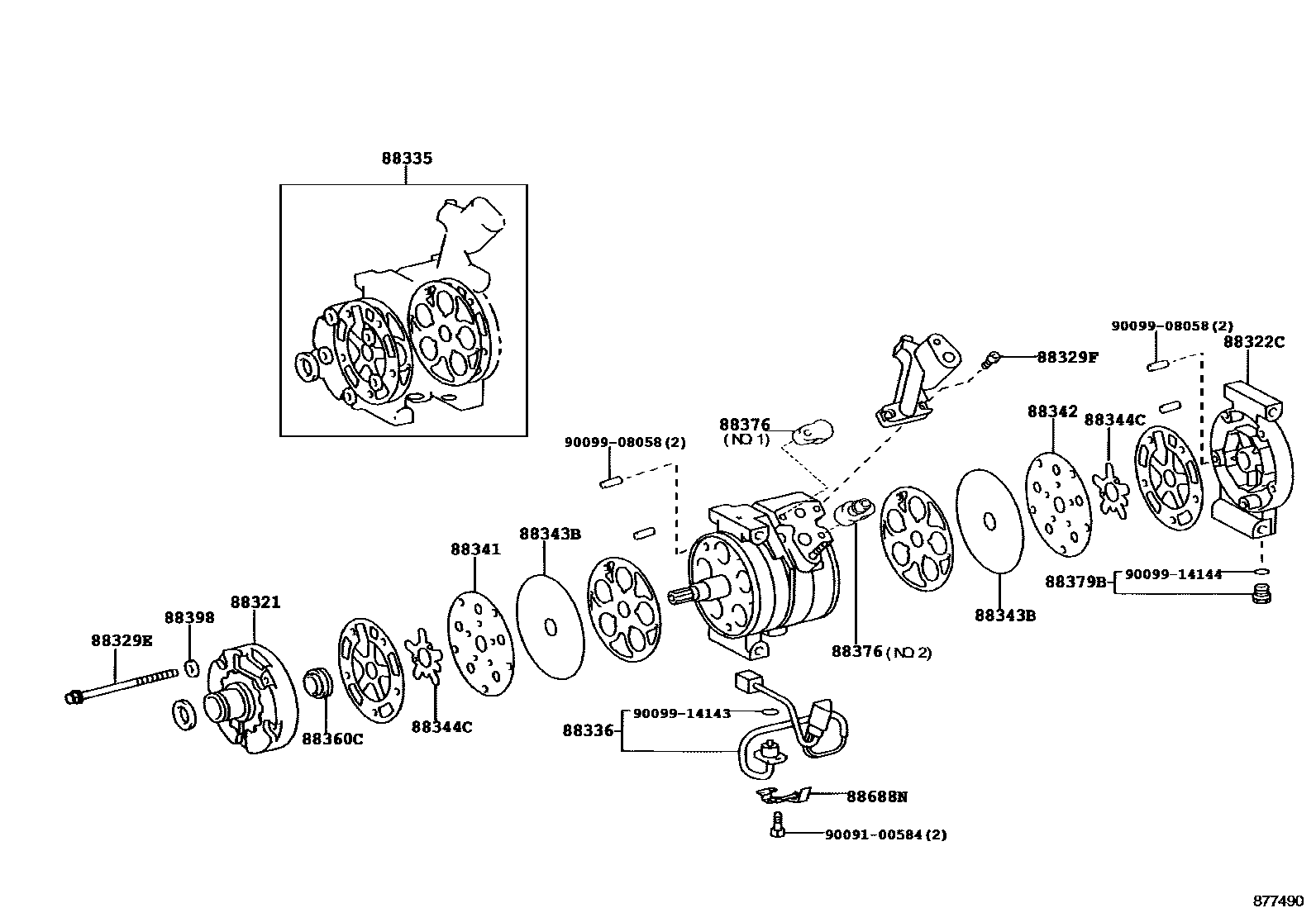

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88321HEAD, COOLER COMPRESSOR CYLINDER

main88321-48010iMCV30200107-200307

88322CHEAD, CYLINDER, REAR

main88322-32060iMCV30200107-200307

88329EBOLT, COMPRESSOR, NO.1

main88329-48010×5iMCV30200107-200307

88329FBOLT, COMPRESSOR, NO.2

main88329-16030×2iMCV30200107-200307

88335GASKET KIT, OVERHAUL

main88335-48070iMCV30200107-200307

88336SENSOR, COMPRESSOR

main88336-33130iMCV30200107-200307

88341PLATE, FRONT VALVE

main88341-32010iMCV30200107-200307

88342PLATE, COMPRESSOR VALVE, RR

main88342-32020iMCV30200107-200307

88343BREED, SUCTION VALVE

main88343-32020×2iMCV31200107-200406

88344CREED, DISCHARGE VALVE

main88344-32010×2iMCV30200107-200307

88360CSEAL ASSY, SHAFT

main88360-32010iMCV30200107-200307

88376CAP, BLIND

main88376-14020iMCV31200107-200406

NO.1

main88376-32020iMCV30200107-200307

NO.2

88379BVALVE, PRESSURE RELIEF

main88379-32010iMCV30200107-200307

88398PACKING, COMPRESSOR

main88398-32010×5iMCV31200107-200406

88688NBRACKET, COOLER

main88688-48050iMCV30200107-200307

9009100584

main90091-00584

9009908058

main90099-08058

9009914143

main90099-14143

9009914144

main90099-14144

19 parts on this diagram · 2 diagrams in section
