HEATING & AIR CONDITIONING - WATER PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

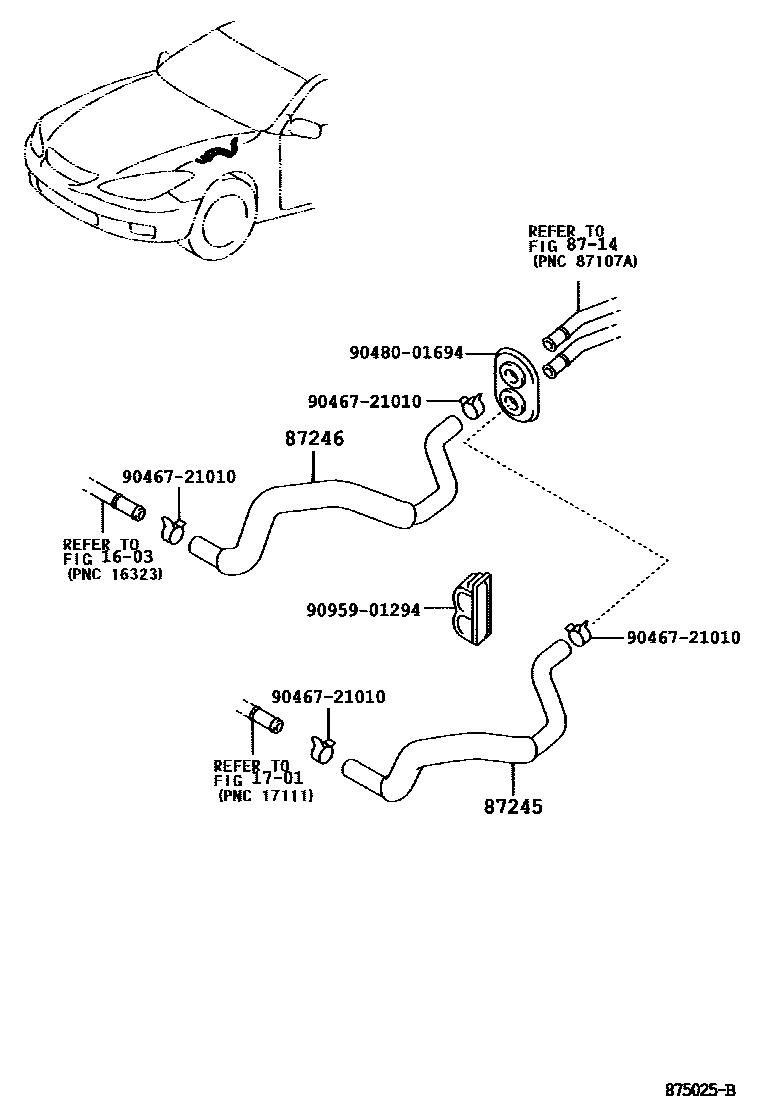

87245HOSE, HEATER WATER, INLET

main87245-33520iMCV3#200107-200406

87246HOSE, HEATER WATER, OUTLET

main87245-33530iMCV3#200107-200406

9046721010

main90467-21010

9048001694

main90480-01694

9095901294

main90959-01294

8 parts on this diagram · 1 diagram in section
