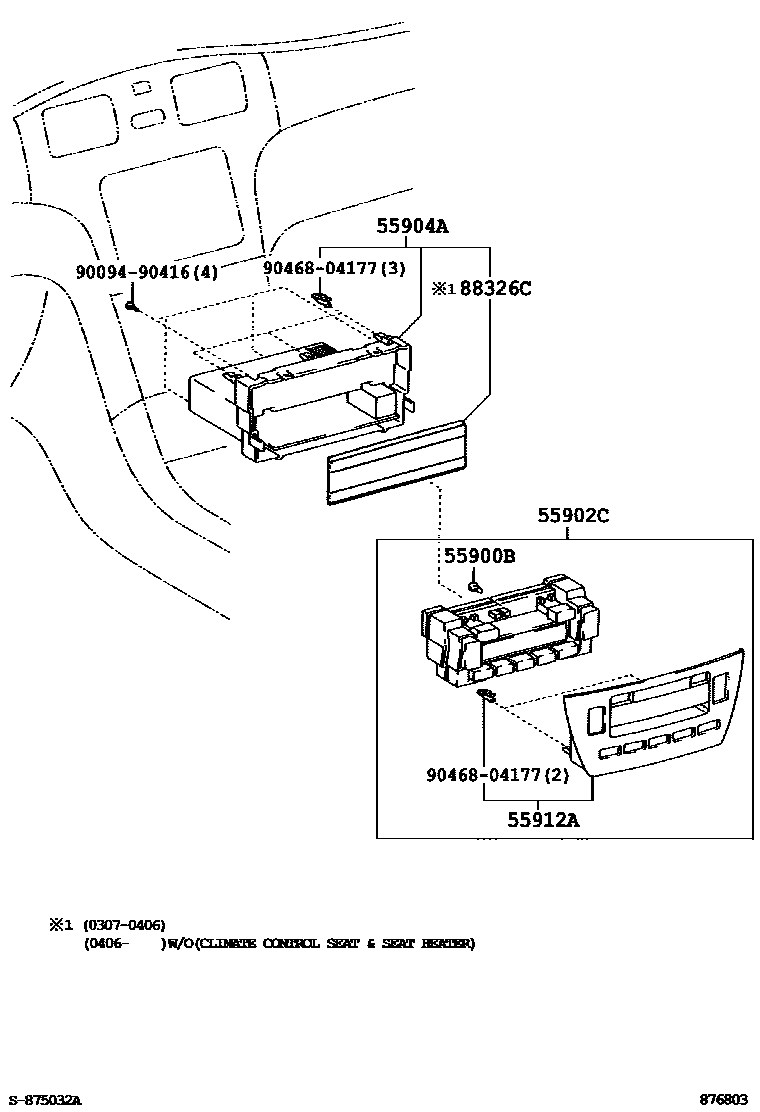

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

55900BBULB, AIR CONDITIONER CONTROL

main90010-03048×3iMCV3#200107-200406

14V 1.4W,LCD

main90010-03049×5iMCV3#200107-200406

14V 1.4W,KNOB

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-33410iMCV30200107-200307

W(SEAT HEATER)

main55902-33420iMCV30200107-200307

main55902-33570iMCV31200307-200406

W(SEAT HEATER)

main55902-33580iMCV31200307-200406

main55902-33700iMCV31200406

W(CLIMATE CONTROL SEAT & SEAT HEATER)

main55902-33710iMCV31200406

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-33010iMCV30200107-200307

W(SEAT HEATER)

main55904-33020iMCV30200107-200307

main55904-33030iMCV30200107-200307

CANADA SPEC & W(SEAT HEATER)

main55904-33040iMCV30200107-200307

BRAZIL OR CANADA OR TAIWAN SPEC

main55904-33150iMCV31200307-200406

W(SEAT HEATER)

main55904-33160iMCV31200307-200406

main55904-33170iMCV31200307-200406

CANADA OR KOREASPEC & W(SEAT HEATER)

main55904-33180iMCV31200307-200406

BRAZIL OR CANADA OR KOREA OR TAIWAN SPEC

main55904-33200iMCV31200406

W(CLIMATE CONTROL SEAT & SEAT HEATER)

main55904-33210iMCV31200406

BRAZIL OR CANADA OR KOREA OR TAIWAN SPEC & W(CLIMATE CONTROL SEAT & SEAT HEATER)

55912AHOUSING, HEATER CONTROL

main55912-33040iMCV30200107-200307

W(SEAT HEATER)

main55912-33050iMCV30200107-200307

main55912-33250iMCV31200307-200406

W(SEAT HEATER)

main55912-33260iMCV31200307-200406

main55912-33380iMCV31200406

W(CLIMATE CONTROL SEAT & SEAT HEATER)

main55912-33390iMCV31200406

88326CPLATE, COVER

main88326-26010iMCV31200307-200406

9009490416

main90094-90416

9046804177

main90468-04177

7 parts on this diagram · 3 diagrams in section
