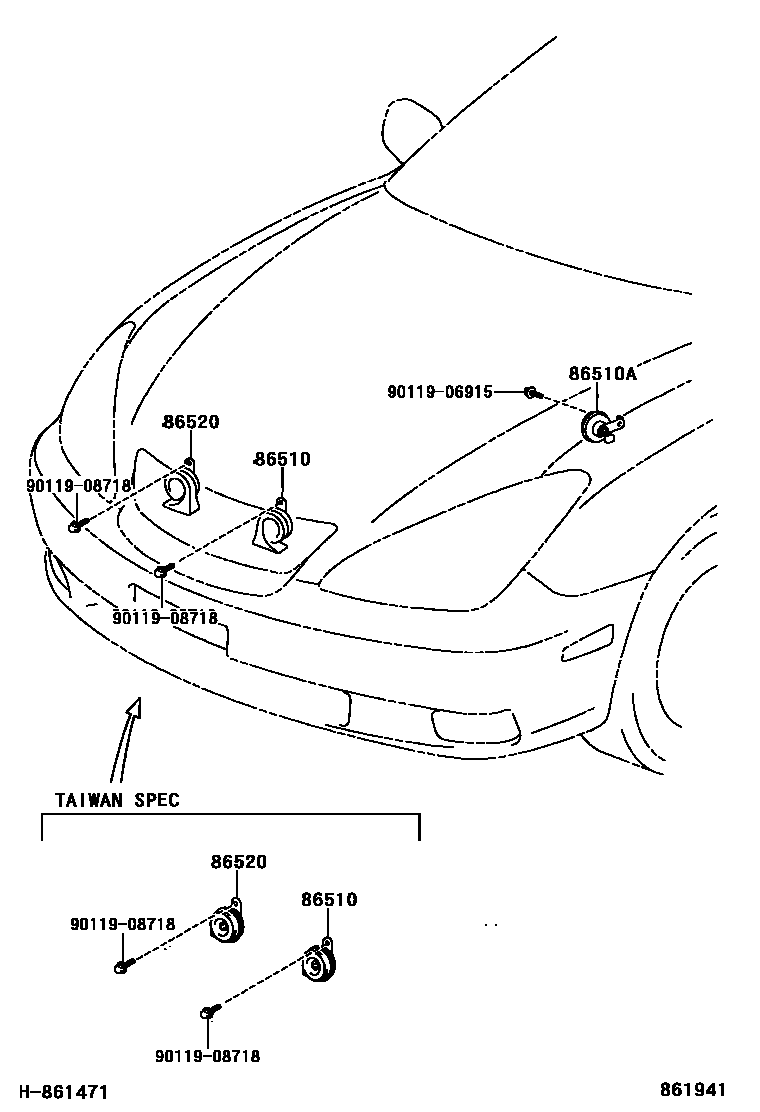

HORN

86510HORN ASSY, HIGH PITCHED

main86510-33130iMCV30200107-200307

TAIWAN SPEC

main86510-33190iMCV30200107-200307

main86510-33191iMCV31200307-200406

KOREA SPEC

main86510-48050iMCV31200406

main86510-68010iMCV31200406

TAIWAN SPEC

86510AHORN ASSY, SECURITY

main86510-48020iMCV31200406

86520HORN ASSY, LOW PITCHED

main86520-33070iMCV30200107-200307

TAIWAN SPEC

main86520-33120iMCV30200107-200307

main86520-33121iMCV31200406-200512

KOREA SPEC

main86520-33122iMCV31200601

KOREA SPEC

main86520-48030iMCV31200406

main86520-68010iMCV31200307-200406

TAIWAN SPEC

9011906915

main90119-06915

9011908718

main90119-08718

5 parts on this diagram · 1 diagram in section
