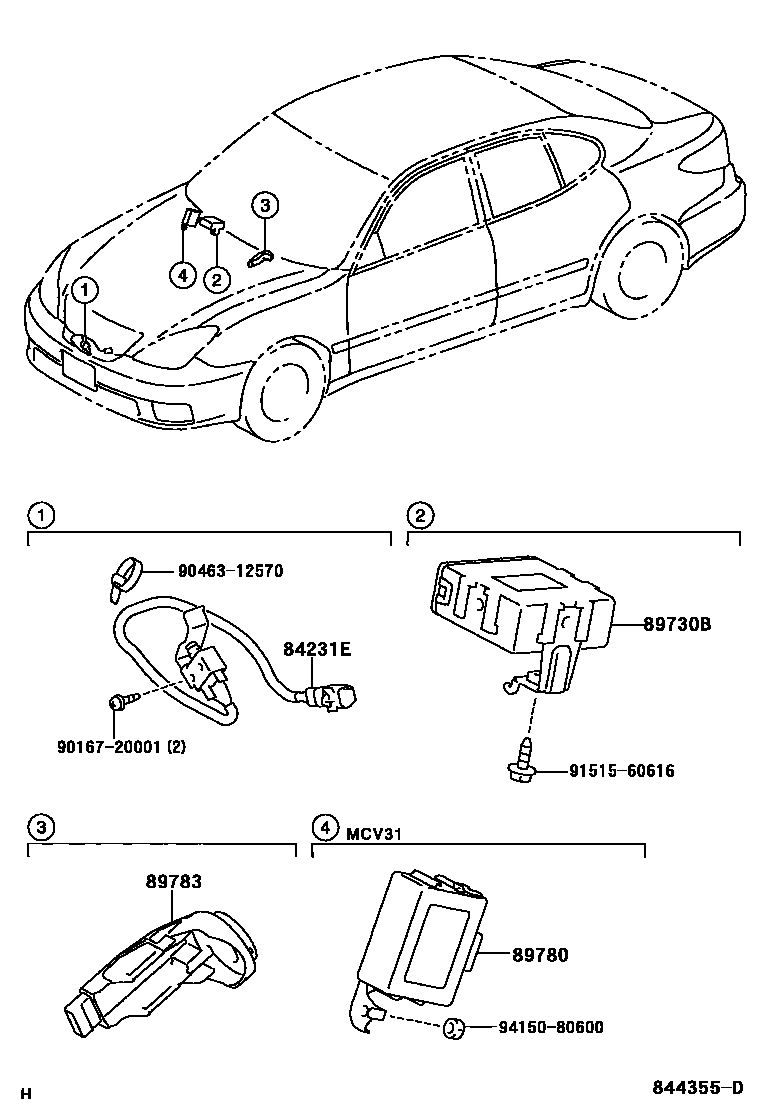

ANTI-THEFT DEVICE

84231ESWITCH, COURTESY(FOR SECURITY)

main84231-33090iMCV3#200107-200406

89730BCOMPUTER ASSY, THEFT WARNING

main89730-33150iMCV3#200107-200406

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-33110iMCV31200307-200406

main89780-33140iMCV31200406

89783AMPLIFIER, TRANSPONDER KEY

main89783-33090iMCV30200107-200205

main89783-33091iMCV30200205-200307

main89783-33110iMCV31200307-200406

9016720001

main90167-20001

9046312570

main90463-12570

9151560616

main91515-60616

9415080600

main94150-80600

8 parts on this diagram · 1 diagram in section
