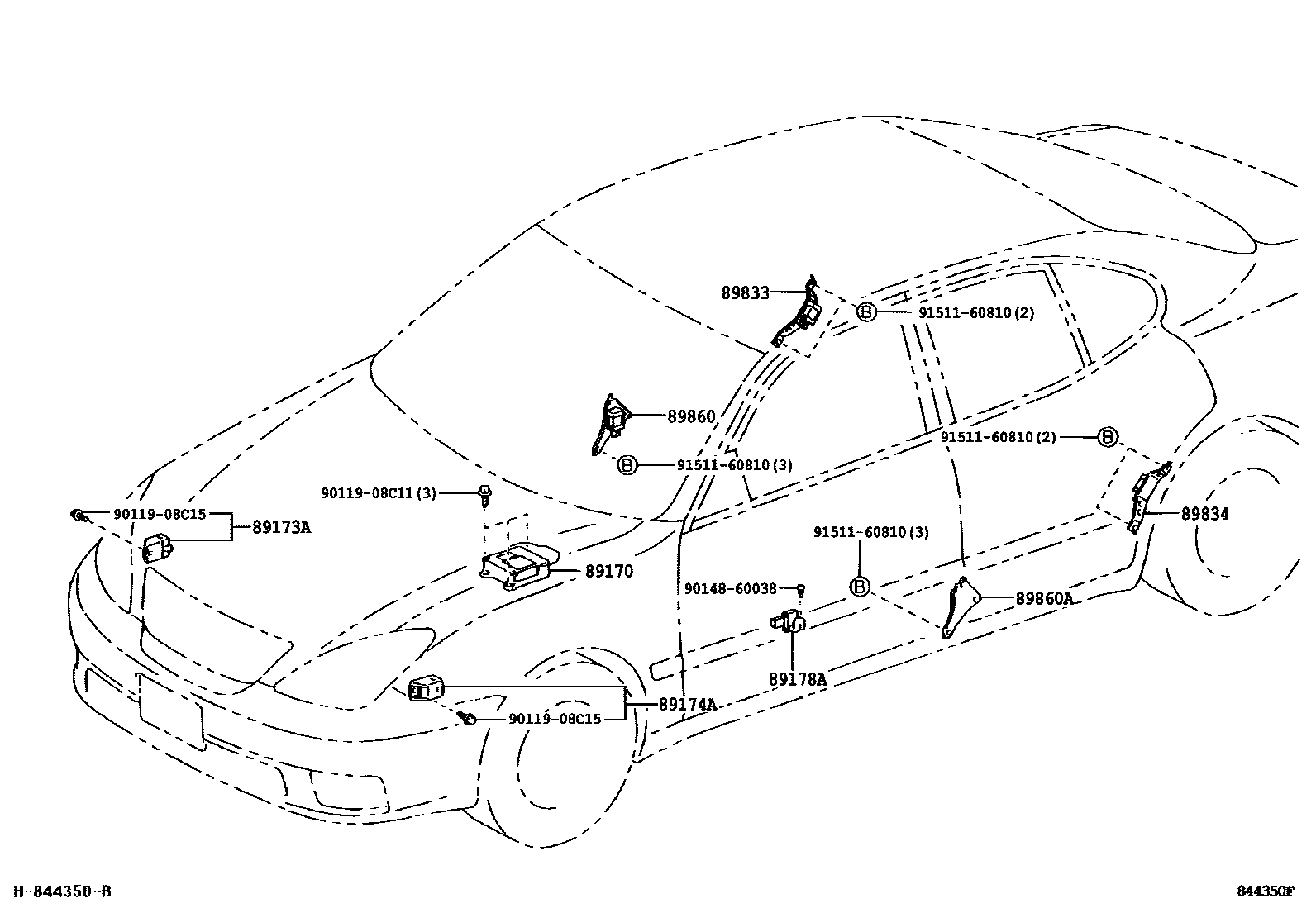

AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-33350iMCV30200107-200307

main89170-33430iMCV31200307-200406

main89170-33470iMCV31200406

89173ASENSOR, AIRBAG, FRONT RH

main89173-09110iMCV30200107-200307

89174ASENSOR, AIRBAG, FRONT LH

main89173-09110iMCV30200107-200307

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06020iMCV30200107-200307

main89178-33030iMCV31200307-200308

main89178-33031iMCV31200308-200406

main89178-33050iMCV31200406

89833SENSOR, AIRBAG, REAR RH

main89833-33030iMCV30200107-200307

main89833-33050iMCV31200307-200406

89834SENSOR, AIRBAG, REAR LH

main89834-33030iMCV30200107-200307

main89834-33050iMCV31200307-200406

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-33070iMCV30200107-200307

main89860-33110iMCV31200307-200406

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-33070iMCV30200107-200307

main89830-33110iMCV31200307-200406

9011908C11

main90119-08C11

9011908C15

main90119-08C15

9014860038

main90148-60038

9151160810

main91511-60810

12 parts on this diagram · 2 diagrams in section
