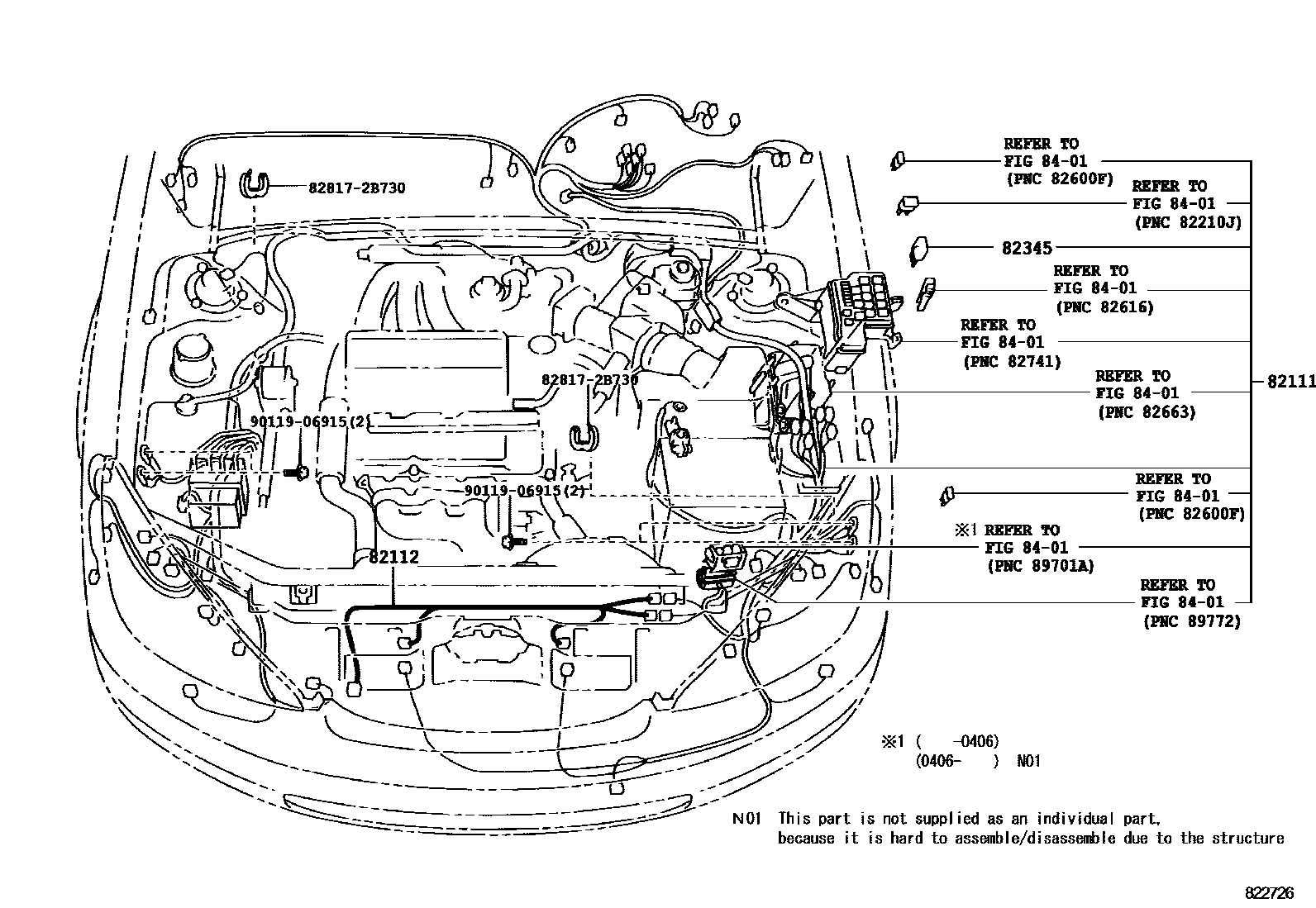

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1INSTRUMENT PANEL 0005 1DOOR,ROOF,FLOOR 0006 1SEAT 0007 1CABLE BOND 0008 1CLAMP & BRACKET 0009 1CONNECTOR

82111WIRE, ENGINE ROOM MAIN

main82111-3Y180iMCV30200107-200307

main82111-3Y181iMCV31200307-200406

main82111-3Y182iMCV31200406

main82111-3Y190iMCV30200107-200307

W(DISCHARGE HEADLAMP)

main82111-3Y191iMCV31200307-200406

W(DISCHARGE HEADLAMP)

main82111-3Y192iMCV31200406

W(DISCHARGE HEADLAMP)

main82111-3Y200iMCV30200107-200307

W(VSC)

main82111-3Y201iMCV31200307-200406

W(VSC)

main82111-3Y202iMCV31200406

W(VSC)

main82111-3Y210iMCV30200107-200307

W(VSC & DISCHARGE HEADLAMP)

main82111-3Y211iMCV31200307-200406

W(VSC & DISCHARGE HEADLAMP)

main82111-3Y212iMCV31200406

W(VSC & DISCHARGE HEADLAMP)

main82111-3Y220iMCV30200107-200307

W(TEMS & DISCHARGE HEADLAMP & VSC)

main82111-3Y221iMCV31200307-200406

W(TEMS & DISCHARGE HEADLAMP & VSC)

main82111-3Y222iMCV31200406

W(TEMS & DISCHARGE HEADLAMP & VSC)

main82111-3Y230iMCV30200107-200307

TAIWAN OR BRAZIL SPEC & W(DISCHARGE HEADLAMP & VSC)

main82111-3Y231iMCV31200307-200406

TAIWAN OR BRAZIL SPEC & W(DISCHARGE HEADLAMP & VSC)

main82111-3Y232iMCV31200406

TAIWAN OR BRAZIL SPEC & W(DISCHARGE HEADLAMP & VSC)

main82115-33690iMCV30200208-200307

W(ADJUSTABLE PEDAL)

main82115-33691iMCV31200307-200406

W(ADJUSTABLE PEDAL)

main82115-33692iMCV31200406

W(ADJUSTABLE PEDAL)

main82115-33700iMCV30200208-200307

W(DISCHARGE HEADLAMP & ADJUSTABLE PEDAL)

main82115-33701iMCV31200307-200406

W(DISCHARGE HEADLAMP & ADJUSTABLE PEDAL)

main82115-33702iMCV31200406

W(ADJUSTABLE PEDAL & DISCHARGE HEAD LAMP)

main82115-33710iMCV30200208-200307

W(ADJUSTABLE PEDAL & VSC)

main82115-33711iMCV31200307-200406

W(ADJUSTABLE PEDAL & VSC)

main82115-33712iMCV31200406

W(ADJUSTABLE PEDAL & VSC)

main82115-33720iMCV30200208-200307

W(DISCHARGE HEADLAMP & ADJUSTABLE PEDAL & VSC)

main82115-33721iMCV31200307-200406

W(DISCHARGE HEADLAMP & ADJUSTABLE PEDAL & VSC)

main82115-33722iMCV31200406

W(DISCHARGE HEADLAMP & ADJUSTABLE PEDAL & VSC)

main82115-33730iMCV30200208-200307

W(ADJUSTABLE PEDAL & VSC & DISCHARGE HEAD LAMP & TEMS)

main82115-33731iMCV31200307-200406

W(ADJUSTABLE PEDAL & VSC & DISCHARGE HEAD LAMP & TEMS)

main82115-33732iMCV31200406

W(ADJUSTABLE PEDAL & VSC & DISCHARGE HEAD LAMP & TEMS)

82112WIRE, ENGINE ROOM, NO.2

main82112-33050iMCV3#200107-200406

82345DIODE

main82345-32020iMCV3#200107-200406

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

828172B730PROTECTOR, WIRING HARNESS, NO.1

main82817-2B730

9011906915

main90119-06915

6 parts on this diagram · 9 diagrams in section
