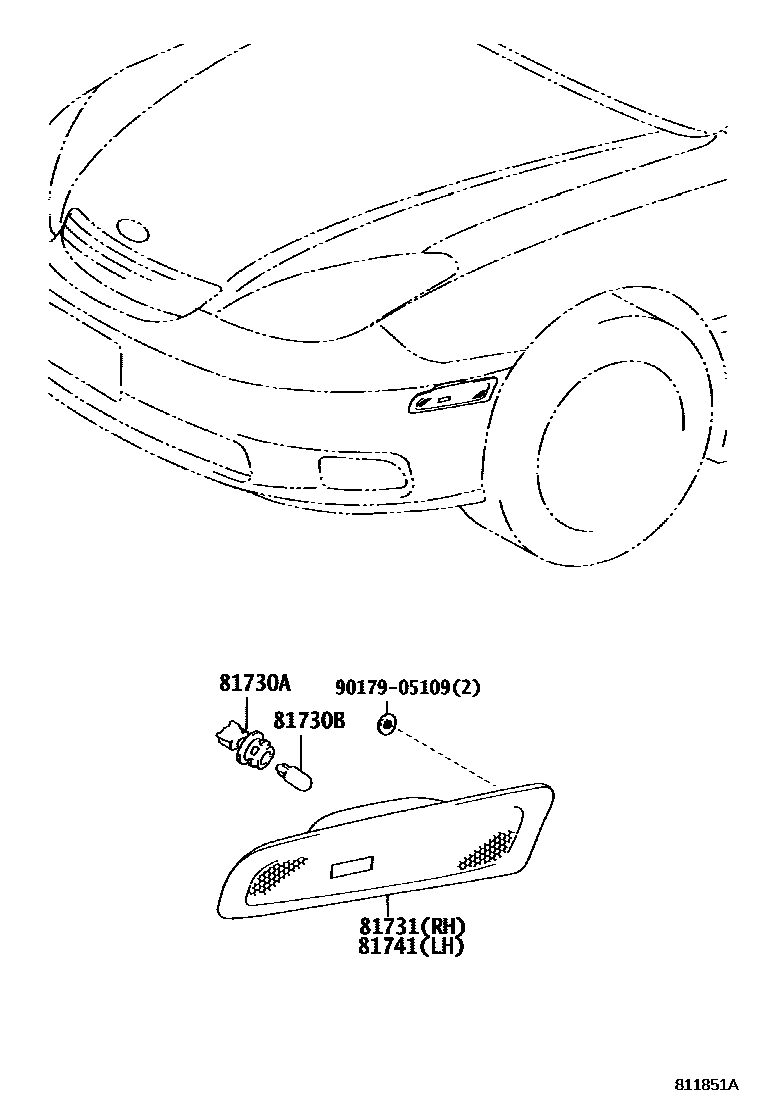

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730ASOCKET PLUG(FOR SIDE TURN SIGNAL LAMP)

main90075-60001×2iMCV30200107-200307

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-11020×2iMCV3#200107-200406

12V 3.8W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-33020iMCV30200107-200112

main81731-33021iMCV30200301-200307

main81731-33050iMCV30200112-200301

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-33020iMCV30200107-200112

main81741-33021iMCV31200406

main81741-33050iMCV30200112-200301

9017905109

main90179-05109

5 parts on this diagram · 1 diagram in section
