282470
›

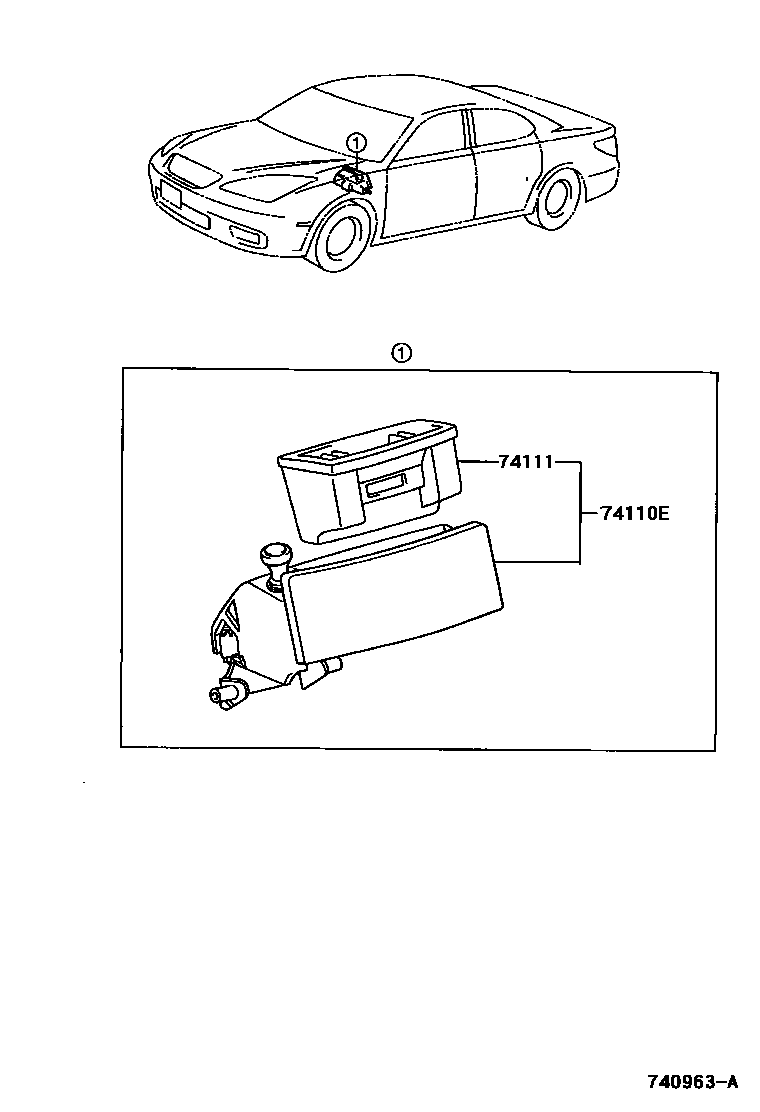

ASH RECEPTACLE
ASH RECEPTACLE
74110E
RECEPTACLE ASSY, FRONT ASH
main
74110-33170
i
MCV30
200107-200307
main
74110-33200
i
MCV31
200307-200406
main
74110-33201-B0
i
MCV31
200402-200406
SPORTS EDITION(USA),DK.GRAY
main
74110-33240-D0
i
MCV31
200406-200603
REDDISH BROWN,TRIM2#
main
74110-33240-E0
i
MCV31
200406-200603
LIGHTBROWN,TRIM0#,1#
74111
BOX, FRONT ASH RECEPTACLE
main
74111-33040
i
MCV3#
200107-200406
2 parts on this diagram · 1 diagram in section
