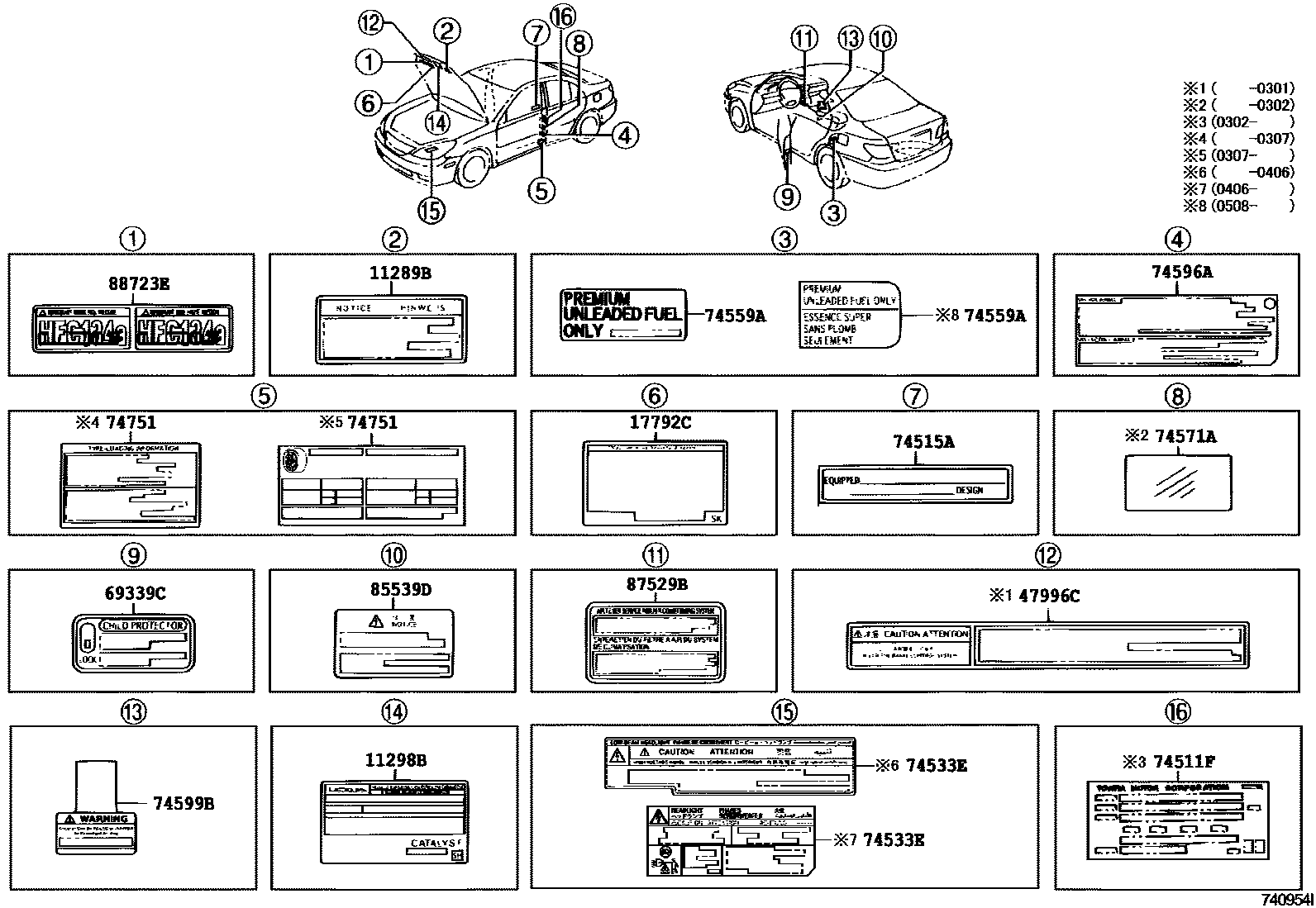

CAUTION PLATE (EXTERIOR & INTERIOR)

11289BLABEL, SPARK PLUG NOTICE

main11289-50010i3MZFE..MCV31200406

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-20480i1MZFE..MCV30200107-200208

main11298-20570i1MZFE..MCV30200208-200307

main11298-20660i3MZFE..MCV31200307-200406

main11298-20730i3MZFE..MCV31200406-200508

main11298-20810i3MZFE..MCV31200508

17792CLABEL, ENGINE VACUUM HOSE INFORMATION

main17792-20240i1MZFE..MCV30200107-200307

main17792-20270i3MZFE..MCV31200307-200406

47996CLABEL, BRAKE BLEED CAUTION

main47996-50050iMCV30200107-200301

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-12010×2iMCV3#200107-200406

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-2B300iMCV3#200302-200406

*111,BRAZIL SPEC

main74514-33010iMCV31200406-200603

*111

main74514-33020iMCV31200406-200603

*111,CANADA SPEC

74515APLATE, THEFT WARNING

main74515-24020×2iMCV3#200107-200406

74533ELABEL, HEADLAMP VOLTAGE CAUTION

main74533-33010×2iMCV30200107-200307

main74533-47010×2iMCV31200409

74559APLATE, FUEL CAUTION

main74559-20110iMCV31200508

main74559-50010iMCV3#200107-200406

74571AFILM, LABEL COVER

main74571-32010iMCV30200107-200302

74596ALABEL, SIDE AIRBAG CAUTION

main74596-12011×2iMCV31200406

74599BLABEL, DRIVER & PASSENGER AIRBAG INFORMATION

main74599-48010iMCV31200307-200311

main74599-48020iMCV31200311-200406

main74599-50010iMCV30200107-200307

74751LABEL, TIRE PRESSURE INFORMATION

main42661-33570iMCV30200107-200307

main42661-33571iMCV31200406-200502

MARK = 3C

main42661-33572iMCV31200503-200505

MARK = 3C

main42661-33573iMCV31200506

MARK = 3C

main42661-33630iMCV31200406-200502

MARK = 4N

main42661-33631iMCV31200503-200505

MARK = 4N

main42661-33632iMCV31200506

MARK = 4N

85539DLABEL, POWER OUTLET NOTICE

main85539-33010iMCV3#200107-200406

87529BLABEL, A/C FILTER INFORMATION

main87529-50010iMCV3#200107-200406

88723ELABEL, COOLER SERVICE CAUTION

main88723-33090iMCV3#200107-200406

16 parts on this diagram · 1 diagram in section
