REAR SEAT & SEAT TRACK

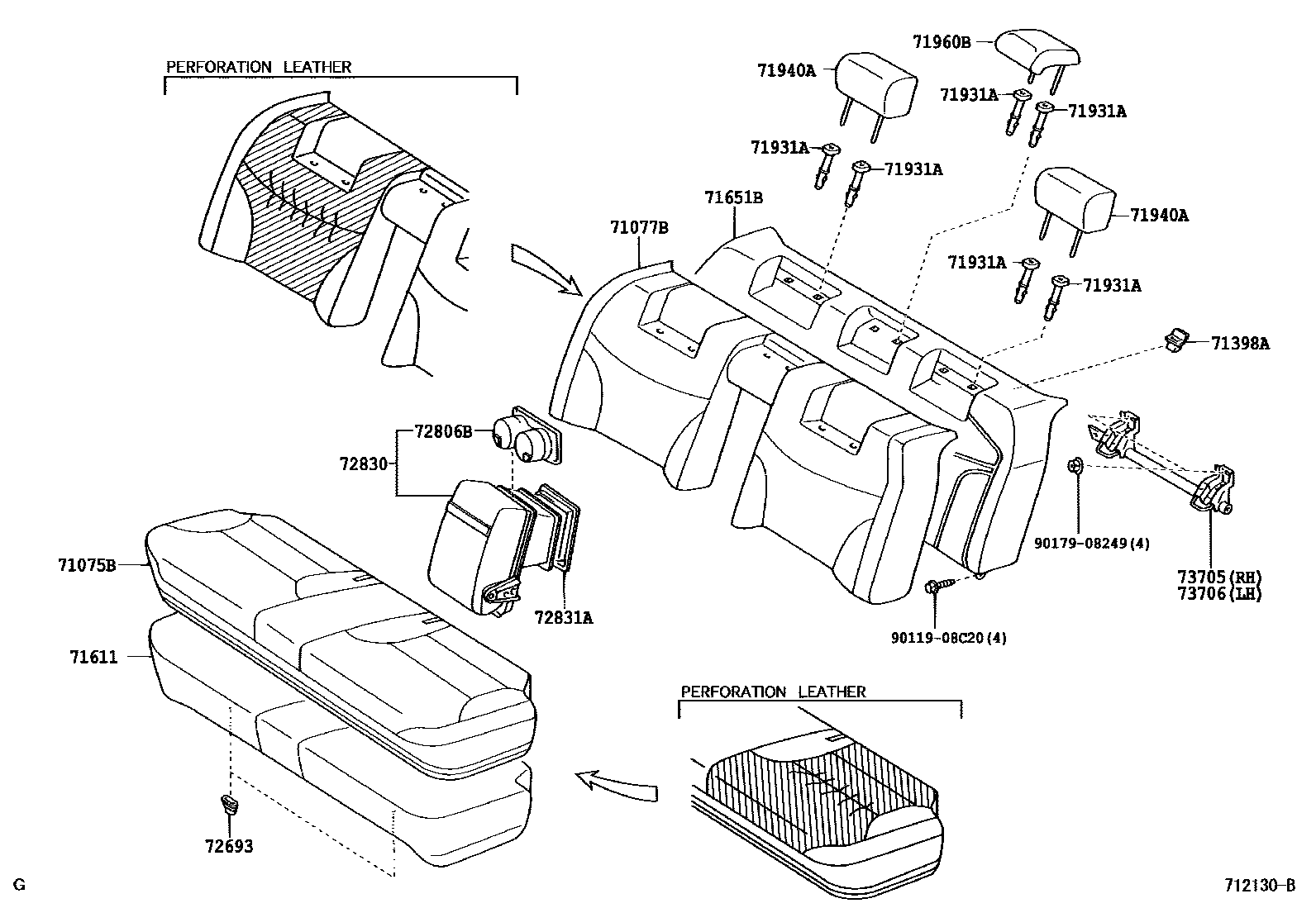

Parts diagram
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-33160-A0i200307-200406
LEATHER,IVORY,TRIM0#
main71075-33160-A1i200406-200603
LEATHER,NEW IVORY,TRIM0#
main71075-33160-B0i200307-200406
LEATHER,MD.CHARCOAL,TRIM1#
main71075-33160-B1i200406-200603
LEATHER,NEW GRAY,TRIM1#
main71075-33160-C0i200307-200406
LEATHER,BLACK,TRIM2#
main71075-33160-C1i200406-200603
LEATHER,BLACK,TRIM2#
main71075-33470-A0i200107-200406
IVORY,TRIM0#
main71075-33470-A1i200406-200603
IVORY,TRIM0#
main71075-33470-C0i200406-200603
BLACK,TRIM2#
main71075-33490-A0i200107-200307
LEATHER,IVORY,TRIM0#
main71075-33490-B0i200107-200307
LEATHER,CHARCOAL,TRIM1#
main71075-33490-C0i200107-200307
LEATHER,BLACK,TRIM2#
main71075-33680-A0i200406-200603
LEATHER;PERFORATION LEATHER,NEW IVORY,TRIM0#
main71075-33680-B0i200406-200603
LEATHER;PERFORATION LEATHER,NEW GRAY,TRIM1#
main71075-33680-C0i200406-200603
LEATHER;PERFORATION LEATHER,BLACK,TRIM2#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-33690-A1i200107-200406
IVORY,TRIM0#
main71077-33690-C1i200107-200307
BLACK,TRIM2#
main71077-33700-A1i200107-200307
LEATHER,IVORY,TRIM0#
main71077-33700-B1i200107-200307
LEATHER,CHARCOAL,TRIM1#
main71077-33700-C1i200107-200307
LEATHER,BLACK,TRIM2#
main71077-33750-A0i200307-200406
LEATHER,IVORY,TRIM0#
main71077-33750-B0i200307-200406
LEATHER,MD.CHARCOAL,TRIM1#
main71077-33750-C0i200307-200406
LEATHER,BLACK,TRIM2#
main71077-33840-A0i200406-200603
LEATHER;PERFORATION LEATHER,NEW IVORY,TRIM0#
main71077-33840-B0i200406-200603
LEATHER;PERFORATION LEATHER,NEW GRAY,TRIM1#
main71077-33840-C0i200406-200603
LEATHER;PERFORATION LEATHER,BLACK,TRIM2#
main71077-33860-A0i200406-200603
IVORY,TRIM0#
main71077-33860-C0i200406-200603
BLACK,TRIM2#
main71077-33870-A0i200406-200603
LEATHER,NEW IVORY,TRIM0#
main71077-33870-B0i200406-200603
LEATHER,NEW GRAY,TRIM1#
main71077-33870-C0i200406-200603
LEATHER,BLACK,TRIM2#
71398AHOLDER, REAR SEATBACK
main71398-33010×3i200107-200406
main71398-33010-C0×3i200406-200603
BLACK
71611PAD, REAR SEAT CUSHION
main71503-33050i200107-200406
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-33030i200107-200406
main71507-33040i200406-200603
71931ASUPPORT, REAR SEAT HEADREST
main71930-42020-A0×3i200107-200406
W(LOCK)&W(BUTTON),IVORY,TRIM0#
main71930-42020-A3×3i200406-200603
W(LOCK)&W(BUTTON),IVORY,TRIM0#
main71930-42020-B1×3i200107-200406
W(LOCK)&W(BUTTON),MD.CHARCOAL,TRIM1#
main71930-42020-B7×3i200406-200603
W(LOCK)&W(BUTTON),GRAY,TRIM1#
main71930-42020-C0×3i200406-200603
W(LOCK)&W(BUTTON),BLACK,TRIM2#
main71931-42020-A0×3i200107-200406
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
main71931-42020-A3×3i200406-200603
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
main71931-42020-B1×3i200107-200406
W(LOCK)&W/O(BUTTON),MD.CHARCOAL,TRIM1#
main71931-42020-B7×3i200406-200603
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#
main71931-42020-C0×3i200406-200603
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
main71940-33480-A0×2i200107-200307
IVORY,TRIM0#
main71940-33480-A1×2i200406-200603
IVORY,TRIM0#
main71940-33480-C0×2i200107-200406
BLACK,TRIM2#
main71940-33500-A0×2i200307-200406
LEATHER,IVORY,TRIM0#
main71940-33500-A1×2i200406-200603
LEATHER,NEW IVORY,TRIM0#
main71940-33500-B0×2i200307-200406
LEATHER,CHARCOAL,TRIM1#
main71940-33500-B1×2i200406-200603
LEATHER,NEW GRAY,TRIM1#
main71940-33500-C0×2i200406-200603
LEATHER,BLACK,TRIM2#
main71940-33530-A0×2i200107-200307
LEATHER,IVORY,TRIM0#
main71940-33530-B0×2i200107-200307
LEATHER,CHARCOAL,TRIM1#
main71940-33530-C0×2i200107-200307
LEATHER,BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71940-33550-A0i200107-200307
IVORY,TRIM0#
main71940-33550-A1i200406-200603
IVORY,TRIM0#
main71940-33550-C0i200107-200307
BLACK,TRIM2#
main71940-33560-A0i200107-200307
LEATHER,IVORY,TRIM0#
main71940-33560-B0i200107-200307
LEATHER,CHARCOAL,TRIM1#
main71940-33560-C0i200107-200307
LEATHER,BLACK,TRIM2#
main71940-33580-A0i200307-200406
LEATHER,IVORY,TRIM0#
main71940-33580-A1i200406-200603
LEATHER,NEW IVORY,TRIM0#
main71940-33580-B0i200307-200406
LEATHER,CHARCOAL,TRIM1#
main71940-33580-B1i200406-200603
LEATHER,NEW GRAY,TRIM1#
main71940-33580-C0i200307-200406
LEATHER,BLACK,TRIM2#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080×2i200107-200406
72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
main72806-33031-A0i200107-200406
IVORY,TRIM0#
main72806-33031-A1i200406-200603
IVORY,TRIM0#
main72806-33031-C0i200107-200307
BLACK,TRIM2#
main72806-33040-A0i200107-200307
W(LEATHER SEAT),IVORY,TRIM0#
main72806-33040-A2i200406-200603
W(LETHER SEAT),NEW IVORY,TRIM0#
main72806-33040-B0i200107-200406
W(LEATHER SEAT),LT. CHARCOAL,TRIM1#
main72806-33040-B1i200406-200603
W(LEATHER SEAT),NEW GRAY,TRIM1#
main72806-33040-C0i200107-200406
W(LEATHER SEAT),BLACK,TRIM2#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-33430-A0i200307-200406
LEATHER,IVORY,TRIM0#
main72830-33430-A1i200406-200603
LEATHER,NEW IVORY,TRIM0#
main72830-33430-B0i200307-200406
LEATHER,CHARCOAL,TRIM1#
main72830-33430-B1i200406-200603
LEATHER,NEW GRAY,TRIM1#
main72830-33430-C0i200307-200406
LEATHER,BLACK,TRIM2#
main72830-33440-A1i200107-200307
IVORY,TRIM0#
main72830-33440-A2i200406-200603
IVORY,TRIM0#
main72830-33440-C1i200107-200406
BLACK,TRIM2#
main72830-33450-A1i200107-200307
LEATHER,IVORY,TRIM0#
main72830-33450-B1i200107-200307
LEATHER,CHARCOAL,TRIM1#
main72830-33450-C1i200107-200307
LEATHER,BLACK,TRIM2#
72831AFRAME, REAR SEAT CENTER ARMREST
main72831-33070i200107-200406
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-33020i200107-200406
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-33020i200107-200406
9011908C20
main90119-08C20
9017908249
main90179-08249

16 parts on this diagram · 1 diagram in section
