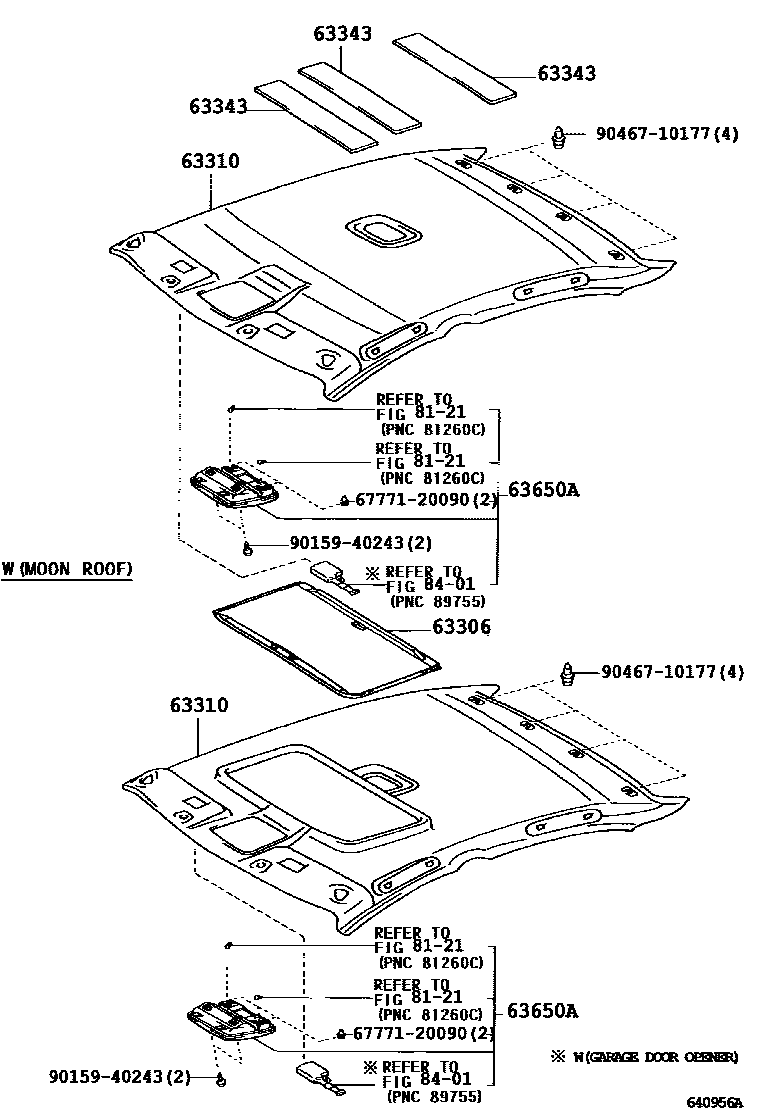

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1W(MICRO PHONE)

63306TRIM SUB-ASSY, SUNSHADE

main63306-33080-A0iMCV3#200107-200406

IVORY,TRIM0#

main63306-33080-A1iMCV31200406-200603

IVORY,TRIM0#

main63306-33080-B0iMCV3#200107-200406

MEDIUM CHACOAL,TRIM1#

main63306-33080-B1iMCV3#200107-200406

LT.GRAY,TRIM2#

main63306-33080-B2iMCV31200406-200603

LT.GRAY,TRIM1#,2#

63310HEADLINING ASSY, ROOF

main63310-33440-A0iMCV3#200107-200404

W(MOON ROOF),IVORY,TRIM0#

main63310-33440-B0iMCV3#200107-200404

W(MOON ROOF),MEDIUM CHACOAL,TRIM1#

main63310-33440-B1iMCV3#200107-200404

W(MOON ROOF),LT.GRAY,TRIM2#

main63310-33441-A0iMCV31200404-200406

W(MOON ROOF),IVORY,TRIM0#

main63310-33441-A1iMCV31200406-200603

W(MOON ROOF),IVORY,TRIM0#

main63310-33441-B0iMCV31200404-200406

W(MOON ROOF),MEDIUM CHACOAL,TRIM1#

main63310-33441-B1iMCV31200404-200406

W(MOON ROOF),LT.GRAY,TRIM2#

main63310-33441-B2iMCV31200406-200603

W(MOON ROOF),LT.GRAY,TRIM1#,2#

main63310-33460-A0iMCV30200107-200307

IVORY,TRIM0#

main63310-33460-B0iMCV30200107-200307

MEDIUM CHACOAL,TRIM1#

main63310-33460-B1iMCV30200107-200307

LT.GRAY,TRIM2#

main63310-33461-A0iMCV31200311-200406

IVORY,TRIM0#

main63310-33461-A1iMCV31200406-200603

IVORY,TRIM0#

main63310-33461-B0iMCV31200311-200406

MEDIUM CHACOAL,TRIM1#

main63310-33461-B1iMCV31200311-200406

LT.GRAY,TRIM2#

main63310-33461-B2iMCV31200406-200603

LT.GRAY,TRIM1#,2#

63343PAD, ROOF SILENCER, NO.3

main63343-33110×3iMCV3#200107-200406

63650ABOX ASSY, ROOF CONSOLE

main63650-33010-A0iMCV3#200107-200406

W(GARAGE DOOR OPENER),IVORY,TRIM0#

main63650-33010-A1iMCV31200406-200603

W(GARAGE DOOR OPENER),IVORY,TRIM0#

main63650-33010-B0iMCV3#200107-200406

W(GARAGE DOOR OPENER),LT.GRAY,TRIM2#

main63650-33010-B1iMCV3#200107-200406

W(GARAGE DOOR OPENER),MD.CHARCOAL,TRIM1#

main63650-33010-B2iMCV31200406-200603

W(GARAGE DOOR OPENER),GRAY,TRIM1#,2#

main63650-33030-A0iMCV3#200107-200406

W(GARAGE DOOR OPENER & MOON ROOF),IVORY,TRIM0#

main63650-33030-A1iMCV31200406-200603

W(GARAGE DOOR OPENER & MOON ROOF),IVORY,TRIM0#

main63650-33030-B0iMCV3#200107-200406

W(GARAGE DOOR OPENER & MOON ROOF),LT.GRAY,TRIM2#

main63650-33030-B1iMCV3#200107-200406

W(GARAGE DOOR OPENER & MOON ROOF),MD.CHARCOAL,TRIM1#

main63650-33030-B2iMCV31200406-200603

W(GARAGE DOOR OPENER & MOON ROOF),GRAY,TRIM1#,2#

main63650-33040-A0iMCV3#200107-200406

IVORY,TRIM0#

main63650-33040-A1iMCV31200406-200603

IVORY,TRIM0#

main63650-33040-B0iMCV3#200107-200406

LT.GRAY,TRIM2#

main63650-33040-B1iMCV3#200107-200406

MD.CHARCOAL,TRIM1#

main63650-33040-B2iMCV31200406-200603

GRAY,TRIM1#,2#

main63650-33050-A0iMCV3#200107-200406

W(MOON ROOF),IVORY,TRIM0#

main63650-33050-A1iMCV31200406-200603

W(MOON ROOF),IVORY,TRIM0#

main63650-33050-B0iMCV3#200107-200406

W(MOON ROOF),LT.GRAY,TRIM2#

main63650-33050-B1iMCV3#200107-200406

W(MOON ROOF),MD.CHARCOAL,TRIM1#

main63650-33050-B2iMCV31200406-200603

W(MOON ROOF),GRAY,TRIM1#,2#

main63650-33060-A0iMCV31200406-200603

W(GARAGE DOOR OPENER & MICROPHONE & MOON ROOF),IVORY,TRIM0#

main63650-33060-B0iMCV31200406-200603

W(GARAGE DOOR OPENER & MICROPHONE & MOON ROOF),GRAY,TRIM1#,2#

8121INTERIOR LAMP

→ Go to FIG 81-21

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6777120090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20090

9015940243

main90159-40243

9046710177

main90467-10177

9 parts on this diagram · 2 diagrams in section
