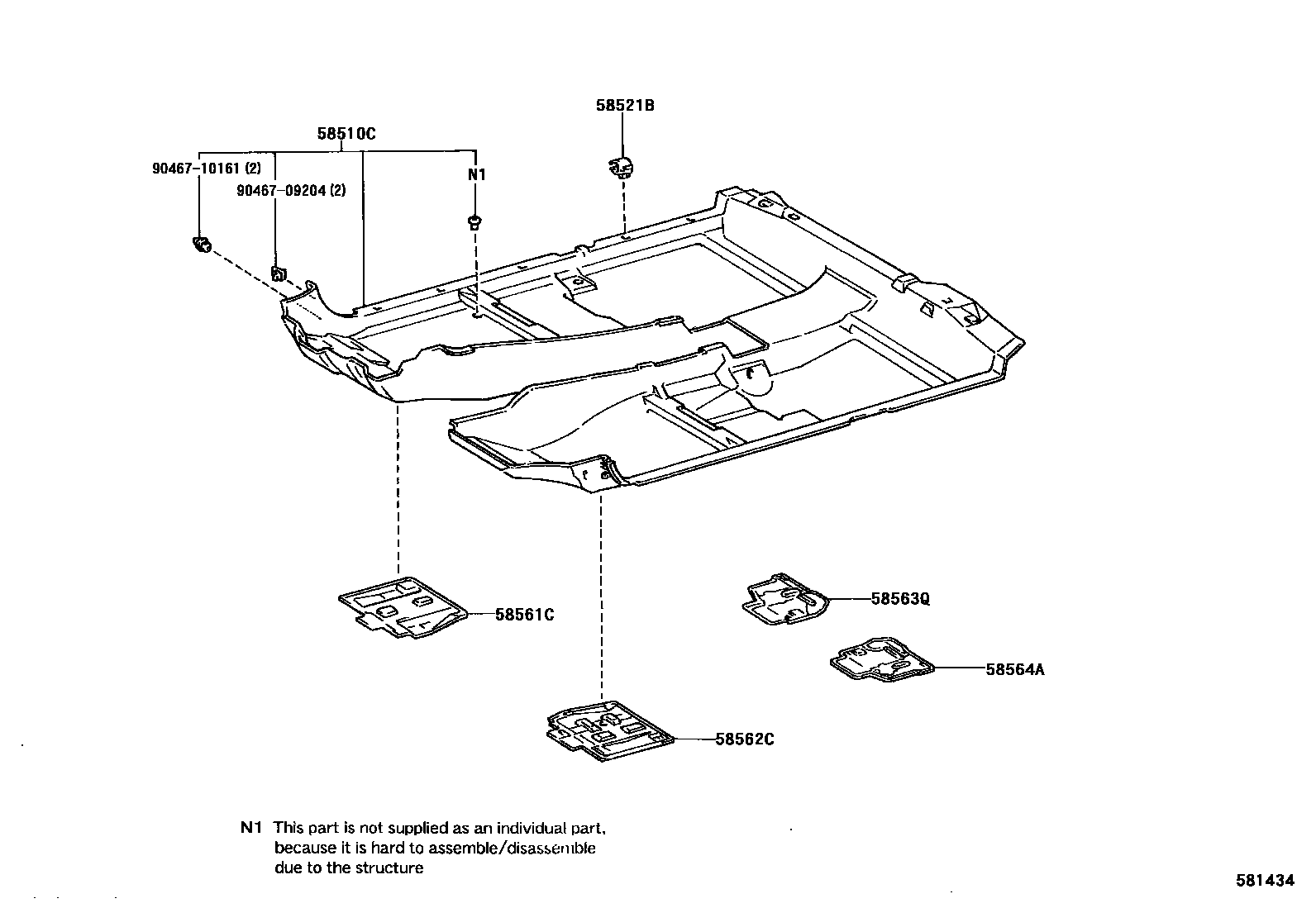

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-33470-A0iMCV3#200107-200309

IVORY,TRIM0#

main58510-33470-B0iMCV3#200107-200401

MEDIUM CHACOAL,TRIM1#

main58510-33470-C0iMCV3#200107-200401

BLACK,TRIM2#

main58510-33471-A0iMCV31200309-200406

IVORY,TRIM0#

main58510-33471-B0iMCV31200401-200406

MEDIUM CHACOAL,TRIM1#

main58510-33471-C0iMCV31200401-200406

BLACK,TRIM2#

main58510-33472-A2iMCV31200406-200603

IVORY,TRIM0#

main58510-33472-B2iMCV31200406-200603

GRAY,TRIM1#

main58510-33472-C0iMCV31200406-200603

BLACK,TRIM2#

58521BHOOK, FLOOR CARPET

main58521-33040×6iMCV3#200107-200406

58561CSILENCER, FRONT FLOOR, NO.1

main58561-33030iMCV3#200107-200406

58562CSILENCER, FRONT FLOOR, NO.2

main58562-33040iMCV30200107-200206

main58562-33041iMCV3#200206-200406

58563QSILENCER, FRONT FLOOR, NO.3

main58563-33020iMCV3#200107-200406

58564ASILENCER, FRONT FLOOR, NO.4

main58564-33020iMCV3#200107-200406

9046709204

main90467-09204

9046710161

main90467-10161

8 parts on this diagram · 1 diagram in section
