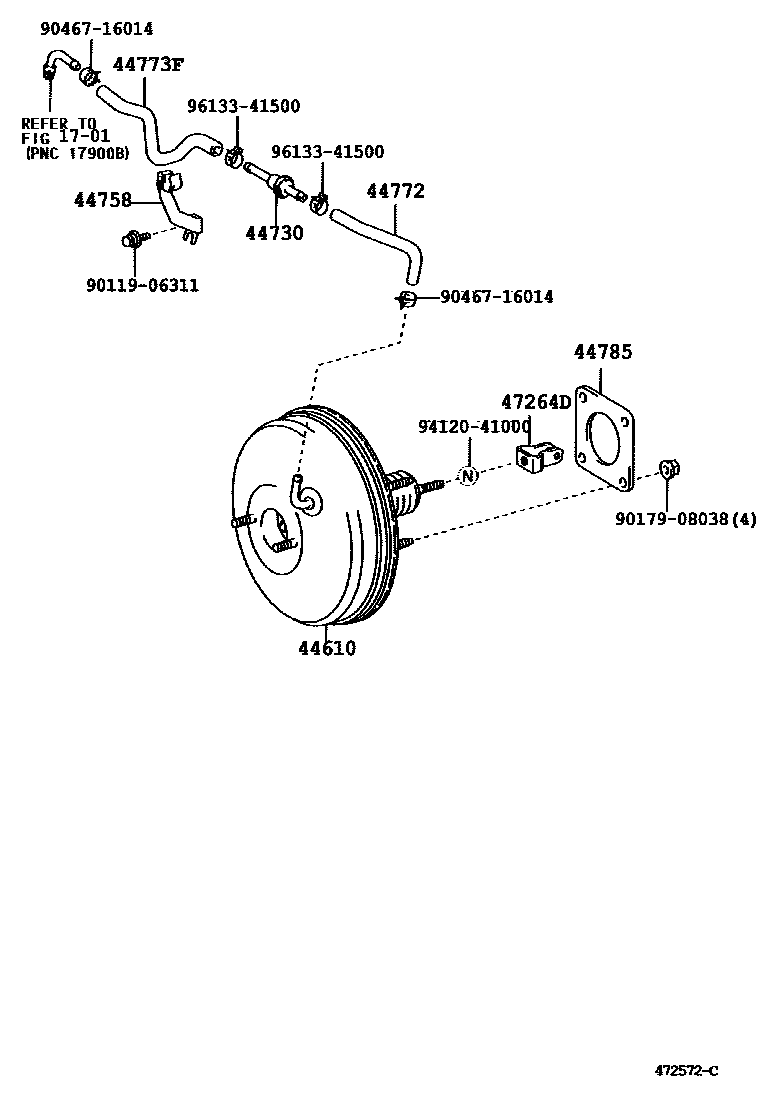

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-33690iMCV3#200107-200406

main44610-33710iMCV3#200107-200406

BRAZIL SPEC

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iMCV3#200107-200406

44758BRACKET, VACUUM CHECK VALVE

main44758-33070iMCV3#200107-200406

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-33100iMCV31200406

44773FHOSE, UNION TO CHECK VALVE

main44773-33120iMCV3#200107-200406

44785GASKET, BRAKE BOOSTER

main44785-20020iMCV3#200107-200406

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iMCV31200406

main47264-63010iMCV31200406

W(VSC)

9011906311

main90119-06311

9017908038

main90179-08038

9046716014

main90467-16014

9412041000

main94120-41000

9613341500

main96133-41500

13 parts on this diagram · 1 diagram in section
