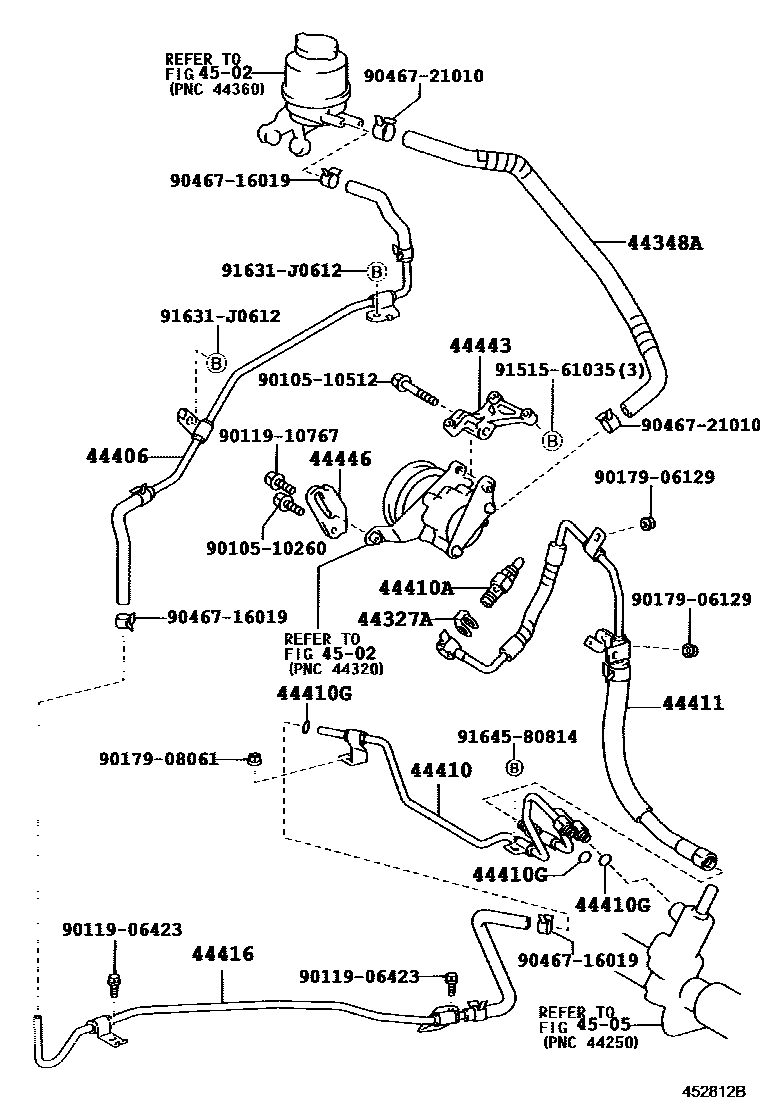

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iMCV3#200107-200406

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-33180iMCV3#200107-200406

44406TUBE SUB-ASSY, RETURN

main44406-33080iMCV3#200107-200406

44410TUBE ASSY, PRESSURE FEED

main44410-33190iMCV3#200107-200406

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCV3#200107-200406

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009×3iMCV3#200107-200406

44411HOSE, PRESSURE FEED

main44411-33110iMCV3#200107-200406

main44411-33120iMCV31200509

KOREA SPEC

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-33140iMCV3#200107-200406

44443BRACKET, PUMP

main44443-33041iMCV3#200107-200406

44446STRUT, ADJUSTING

main44446-28030iMCV3#200107-200406

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9010510260

main90105-10260

9010510512

main90105-10512

9011906423

main90119-06423

9011910767

main90119-10767

9017906129

main90179-06129

9017908061

main90179-08061

9046716019

main90467-16019

9046721010

main90467-21010

9151561035

main91515-61035

91631J0612

main91631-J0612

9164580814

main91645-80814

23 parts on this diagram · 1 diagram in section
