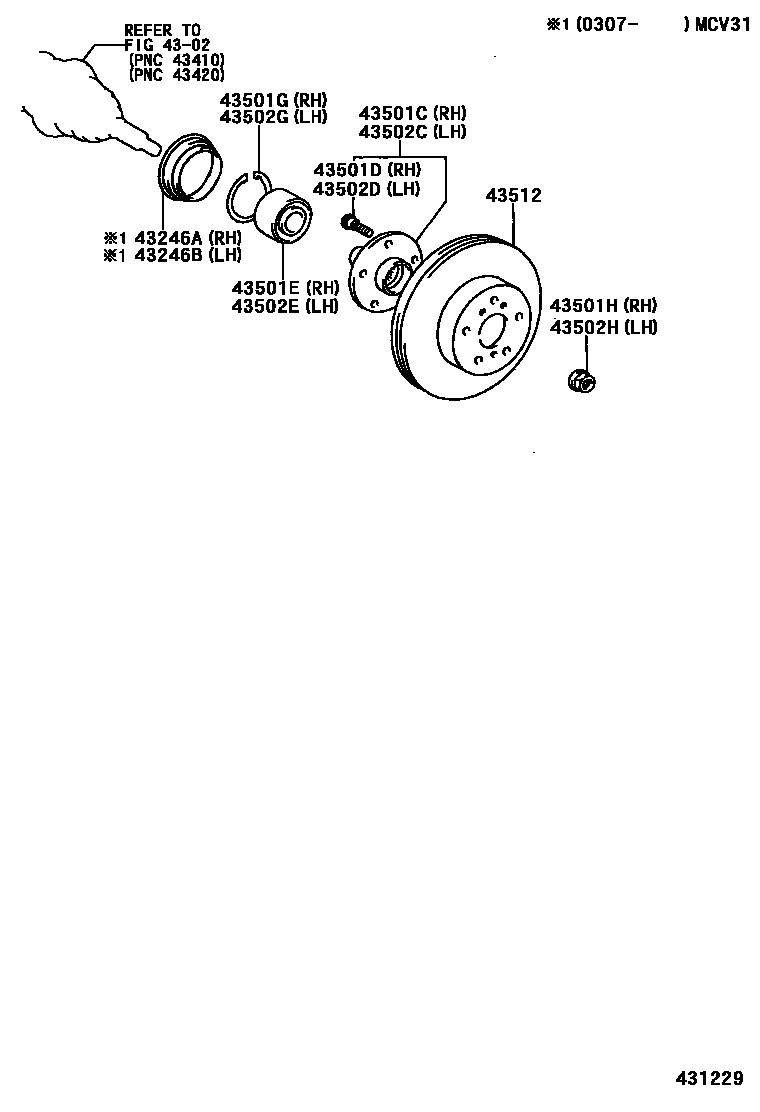

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-28020iMCV31200307-200406

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-28020iMCV31200307-200406

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-28100iMCV31200307-200406

main43502-33030iMCV30200107-200307

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iMCV3#200107-200406

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-43008iMCV30200107-200307

NSK

main90369-43009iMCV30200107-200307

KOYO

main90369-45003iMCV31200307-200406

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90520-77001iMCV31200307-200406

main90521-88001iMCV30200107-200307

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iMCV31200107-200406

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-28100iMCV31200307-200406

main43502-33030iMCV30200107-200307

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iMCV3#200107-200406

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-43008iMCV30200107-200307

NSK

main90369-43009iMCV30200107-200307

KOYO

main90369-45003iMCV31200307-200406

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90520-77001iMCV31200307-200406

main90521-88001iMCV30200107-200307

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMCV3#200107-200406

43512DISC, FRONT

main43512-33100iMCV30200107-200209

main43512-33100iMCV3#200209-200406

BRAZIL OR KOREA OR TAIWAN SPEC

main43512-48011iMCV3#200209-200603

main43512-58010iMCV31200406-200603

BRAZIL SPEC

14 parts on this diagram · 1 diagram in section
