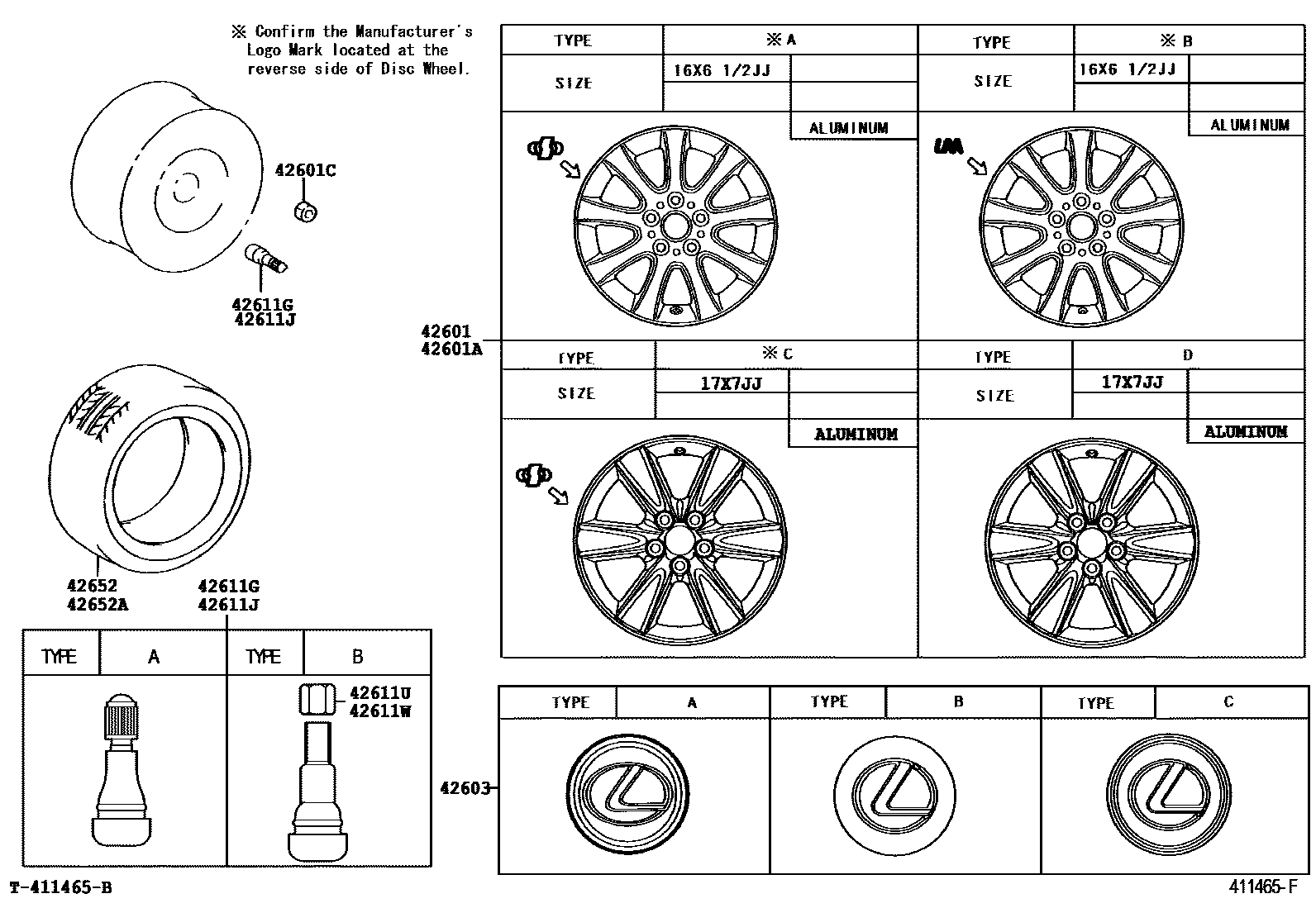

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X6 1/2JJ,TYPE A:REFER TO ILLUSTRATION
16X6 1/2JJ,TYPE B:REFER TO ILLUSTRATION
16X6 1/2JJ,TYPE B:REFER TO ILLUSTRATION, W(CHROME PLATED WHEEL)
17X7JJ,TYPE C:REFER TO ILLUSTRATION
16X6 1/2JJ,TYPE D:REFER TO ILLUSTRATION;SPORTS EDITION(USA)
17X7JJ,TYPE D:REFER TO ILLUSTRATION
17X7JJ,TYPE D:REFER TO ILLUSTRATION, CHROME PLATED WHEEL
17X7JJ,BLACK DIAMOND EDITION(USA/HAWAII/P.RICO);TYPE D:REFER TO ILLUSTRATION
42601AWHEEL, DISC (FOR SPARE)
16X6 1/2JJ,TYPE A:REFER TO ILLUSTRATION
16X6 1/2JJ,TYPE B:REFER TO ILLUSTRATION
16X6 1/2JJ,TYPE B:REFER TO ILLUSTRATION;W(CHROME PLATED WHEEL)
17X7JJ,TYPE C:REFER TO ILLUSTRATION
17X7JJ,TYPE D:REFER TO ILLUSTRATION
17X7JJ,TYPE D:REFER TO ILLUSTRATION, CHROME PLATED WHEEL
17X7JJ,BLACK DIAMOND EDITION(USA/HAWAII/P.RICO);TYPE D:REFER TO ILLUSTRATION
42601CNUT, HUB (FOR AXLE)
SPORTS EDITION(USA)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*CHR,TYPE B:REFER TO ILLUSTRATION
*ALU,TYPE A:REFER TO ILLUSTRATION
*PSC,BLACK DIAMOND EDITION(USA/HAWAII/P.RICO);TYPE B:REFER TO ILLUSTRATION
*ALU,TYPE C:REFER TO ILLUSTRATION;SPORTS EDITION(USA)
42611GVALVE (FOR TUBELESS TIRE)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
42611UCAP, TIRE VALVE
TYPE B:REFER TO ILLUSTRATION
42611WCAP, TIRE VALVE (FOR SPARE)
TYPE B:REFER TO ILLUSTRATION
42652TIRE
P215/60R16 94V,*B/S
P215/60R16 94V,*D/L
P215/60R16 94V
P215/60R16 94V,BRIDGESTONE
P215/60R16 94V,TOYO
P215/60R16 94V,*T/Y
P215/55R17 93V,*B/S
P215/55R17 93V,*T/Y
P215/55R17,MICHELIN
P215/55R17,MICHELIN
42652ATIRE (FOR SPARE)
P215/60R16 94V,*B/S
P215/60R16 94V,*D/L
P215/60R16 94V
P215/60R16 94V,BRIDGESTONE
P215/60R16 94V,TOYO
P215/60R16 94V,*T/Y
P215/55R17 93V,*B/S
P215/55R17 93V,*T/Y
P215/55R17,MICHELIN
P215/55R17,MICHELIN
10 parts on this diagram · 2 diagrams in section
