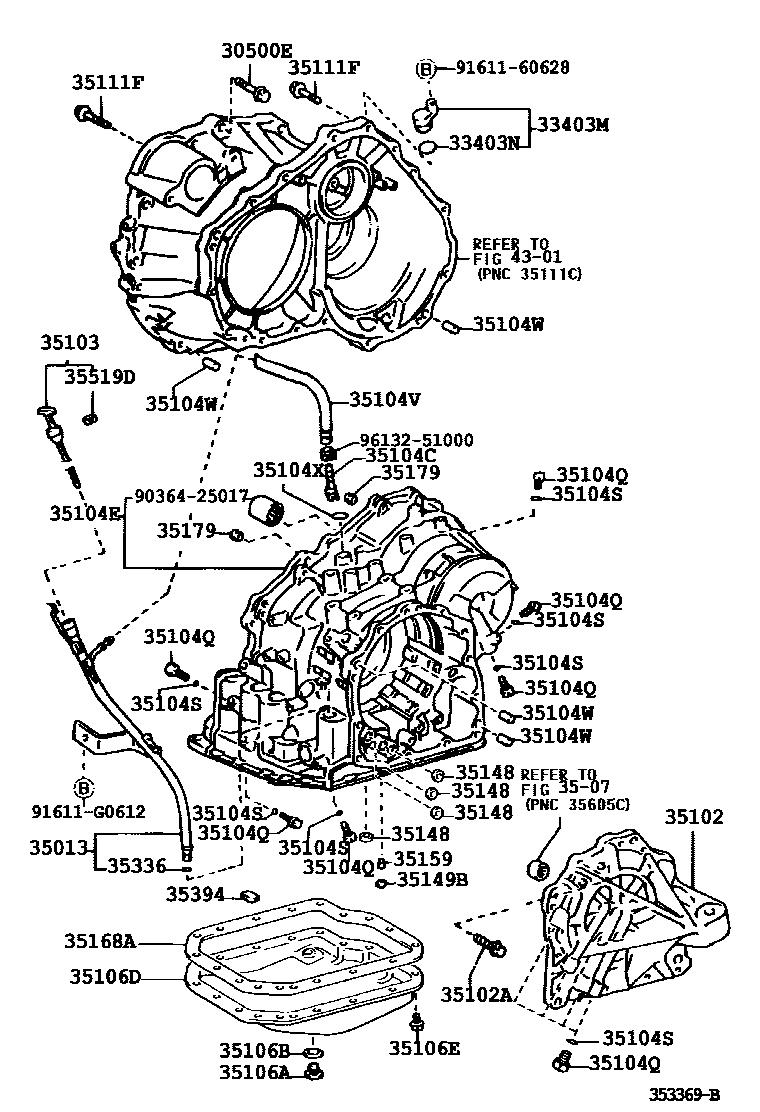

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U150E 0002 1U151E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10376iMCV31200307-200406

*12-1.25PX17.5

main90119-12168×3iMCV30200107-200307

*12-1.25PX55-30

main90119-12250iMCV31200406-200603

*12-1.25PX50-30

main91619-61265iMCV31200406-200603

*12-1.25PX65-30

main91641-H0820×2iMCV31200406-200603

*8-1.25PX20-20

main92412-H1055iMCV30200107-200307

*10-1.25PX55-30

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-21020iMCV3#200107-200406

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24020iMCV3#200107-200406

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-33140iMCV30200107-200307

main35013-33150iMCV31200307-200406

3507BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

→ Go to FIG 35-07

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-33030iMCV31200406

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071×11iMCV30200107-200307

*8-1.25PX30-25

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-33240iMCV30200107-200307

main35103-33250iMCV31200307-200406

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03157iMCV30200107-200307

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33040iMCV30200107-200205

main35104-33041iMCV30200205-200307

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×10iMCV30200107-200307

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×10iMCV30200107-200307

35104VHOSE (FOR BREATHER PLUG)

main35121-28010iMCV30200107-200307

main35121-48030iMCV31200307-200406

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10034×4iMCV31200107-200406

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iMCV30200107-200307

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iMCV30200107-200307

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iMCV30200107-200307

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-28090iMCV30200107-200307

main35106-33040iMCV31200307-200406

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iMCV30200107-200307

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08066iMCV31200107-200406

*8-1.25PX72-30

main90105-08233×8iMCV31200107-200406

*8-1.25PX42-30

main90105-08353×7iMCV30200107-200307

*8-1.25PX50-30

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010×4iMCV30200107-200307

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iMCV30200107-200307

35159GASKET, BRAKE DRUM

main35159-21010iMCV30200107-200307

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21010iMCV30200107-200307

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2iMCV30200107-200307

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iMCV3#200107-200406

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iMCV30200107-200307

main35394-48010×2iMCV31200406

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iMCV30200107-200307

main35519-52010iMCV31200307-200406

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9036425017

main90364-25017

9161160628

main91611-60628

91611G0612

main91611-G0612

9613251000

main96132-51000

33 parts on this diagram · 2 diagrams in section
