Toyota 284460 — ALTERNATOR

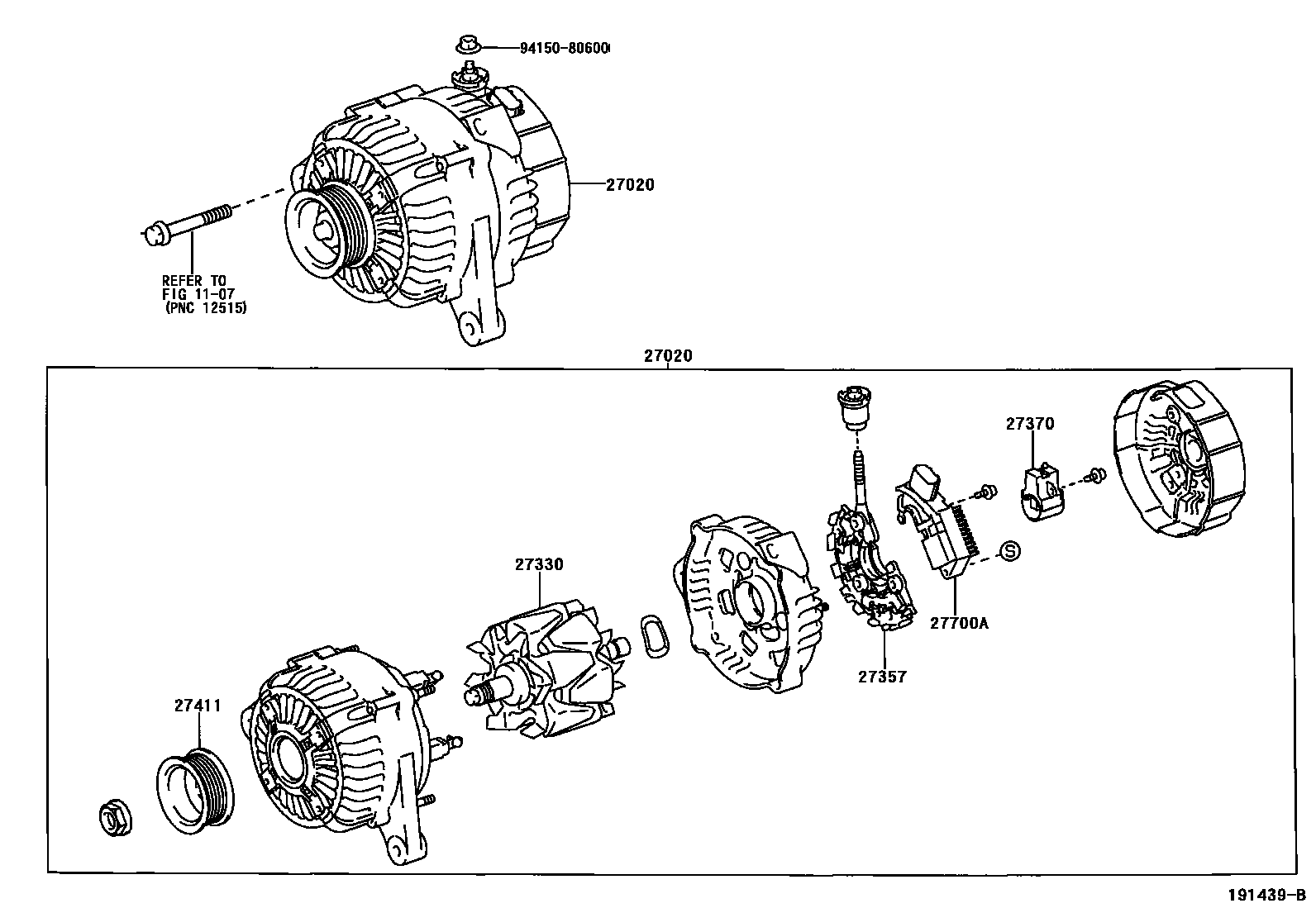

Parts diagram
1107MOUNTING
→ Go to FIG 11-07
27020ALTERNATOR ASSY
27060-20230
27060-20270
27330ROTOR ASSY, ALTERNATOR
27330-28050
27330-30070
27357HOLDER, ALTERNATOR, W/RECTIFIER
27357-70450
27370HOLDER ASSY, ALTERNATOR BRUSH
27370-75060
27370-58460
27411PULLEY, ALTERNATOR
27411-46080
27700AREGULATOR ASSY, GENERATOR
9415080600
94150-80600

8 parts on this diagram · 2 diagrams in section

ALTERNATOR for Toyota 284460

This section contains 9 genuine Toyota parts for the ALTERNATOR system of the Toyota 284460. Key components include: MOUNTING, ALTERNATOR ASSY, ROTOR ASSY, ALTERNATOR, HOLDER, ALTERNATOR, W/RECTIFIER, COIL ASSY, ALTERNATOR.
