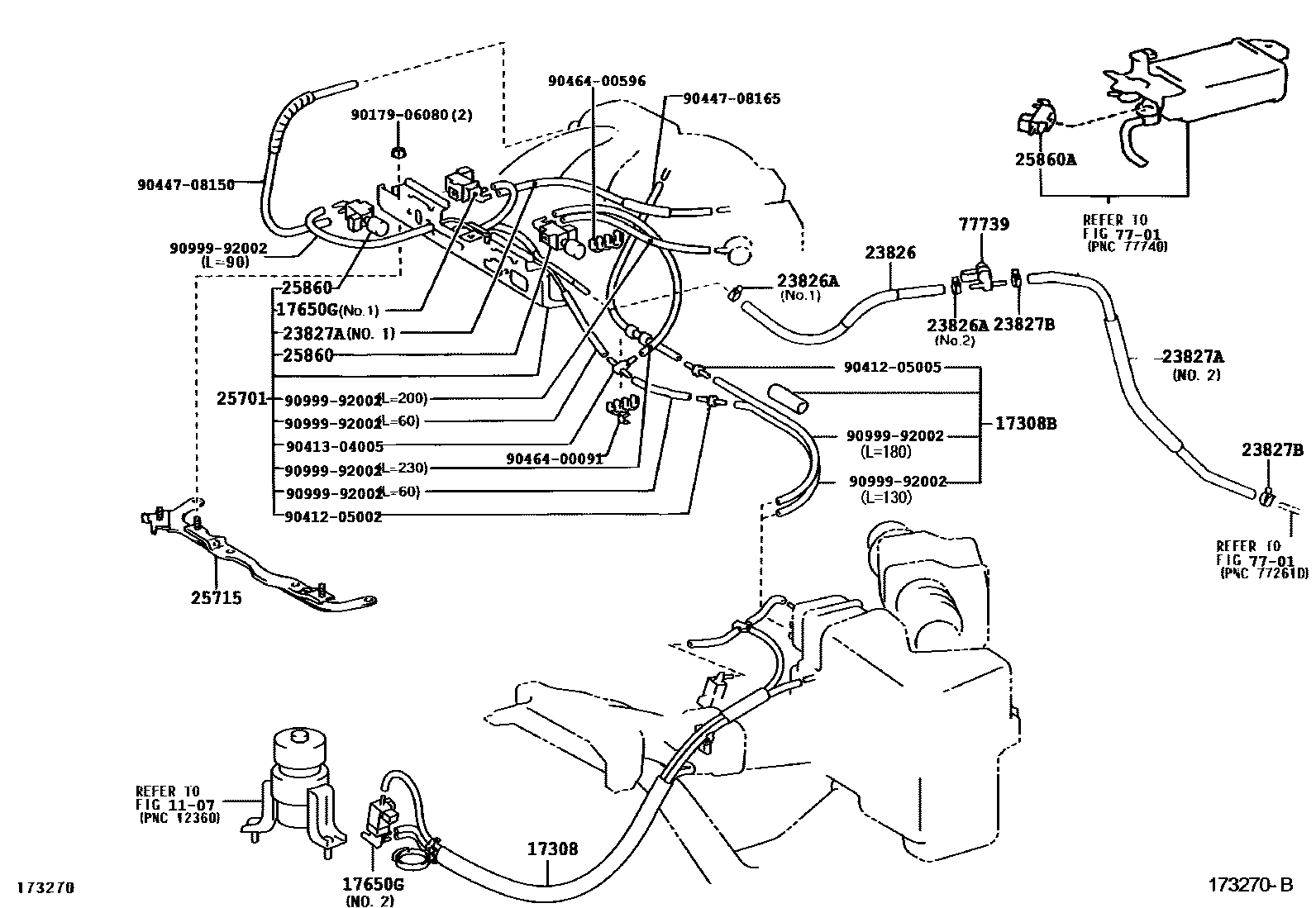

VACUUM PIPING

0001 1 0002 1

1107MOUNTING

→ Go to FIG 11-07

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-20180i3MZFE..MCV31200406

17308BHOSE SUB-ASSY, VACUUM

main17308-20170i1MZFE,3MZFE..MCV3#200107-200406

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12204i3MZFE..MCV31200406

NO.2

main90910-12241i1MZFE..MCV30200107-200307

NO.1

main90910-12259i3MZFE..MCV31200307-200310

MARK 90910-12259,NO.1

main90910-12272i3MZFE..MCV31200310-200406

MARK 90910-12272,NO.1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-20070i1MZFE..MCV30200107-200111

main23826-20071i1MZFE,3MZFE..MCV3#200111-200406

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i1MZFE,3MZFE..MCV3#200107-200406

NO.1

main96132-51100i1MZFE,3MZFE..MCV3#200107-200406

NO.2

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-20060i3MZFE..MCV31200406

NO.1

main23827-20080i3MZFE..MCV31200406

NO.2

main23827-20090i1MZFE..MCV30200107-200307

NO.1

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51100×2i1MZFE,3MZFE..MCV3#200107-200406

25701VALVE SET, EMISSION CONTROL

main25701-20190i1MZFE..MCV30200107-200307

main25701-20220i3MZFE..MCV31200307-200406

25715BRACKET, EMISSION CONTROL VALVE

main25715-20010i1MZFE..MCV30200107-200307

main25715-20020i3MZFE..MCV31200307-200406

main25715-20021i3MZFE..MCV31200407

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-62010×2i1MZFE..MCV30200107-200307

25860AVALVE, VACUUM SWITCHING, NO.1

main90910-12198i1MZFE..MCV30200107-200112

main90910-12264i1MZFE..MCV30200112-200307

7701FUEL TANK & TUBE

→ Go to FIG 77-01

77739VALVE, EVAP SERVICE PORT

main77739-33010iMCV3#200107-200406

9017906080

main90179-06080

9041205002

main90412-05002

9041205005

main90412-05005

9041304005

main90413-04005

9044708150

main90447-08150

9044708165

main90447-08165

9046400091

main90464-00091

9046400596

main90464-00596

9099992002

main90999-92002

23 parts on this diagram · 2 diagrams in section
