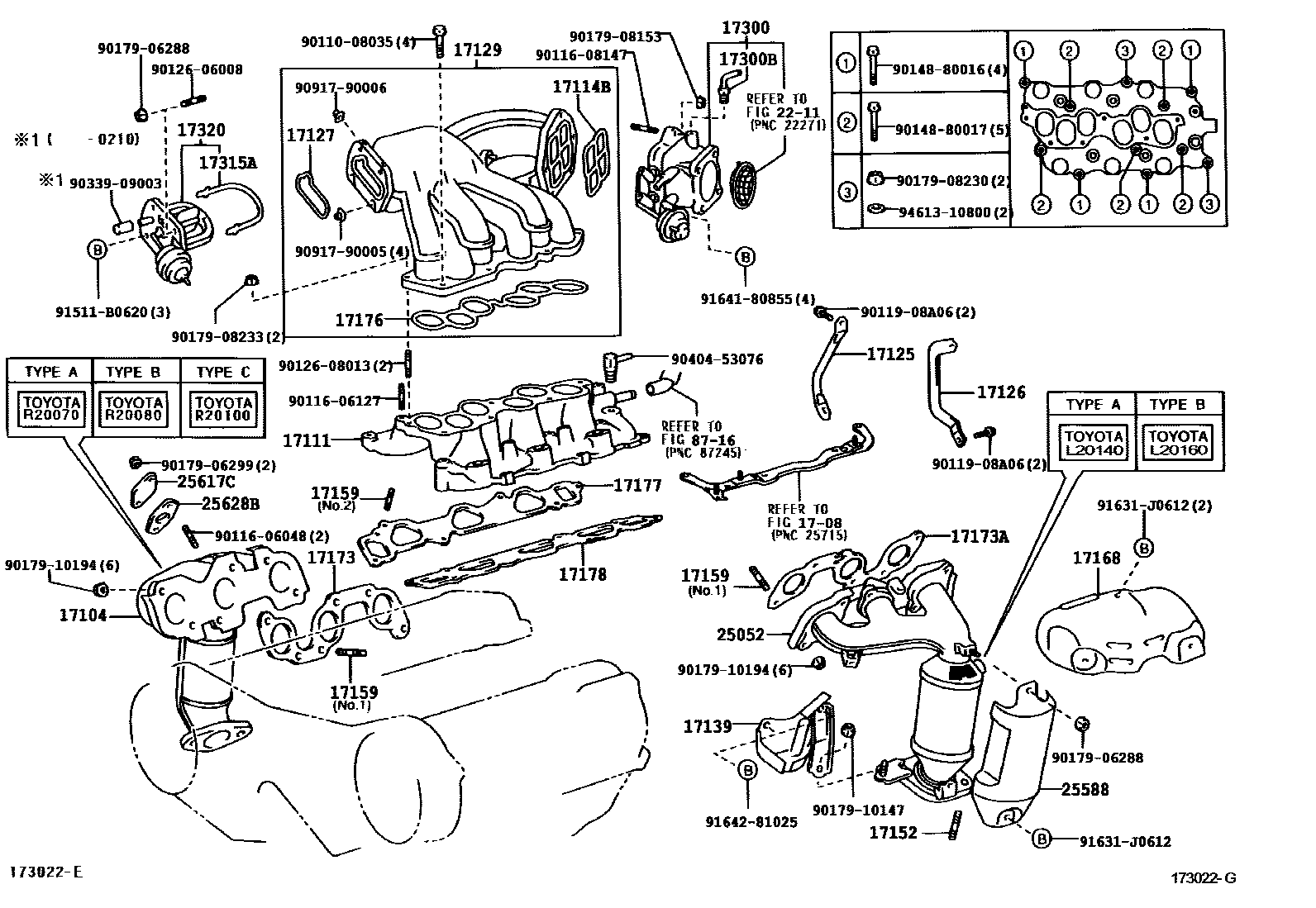

MANIFOLD
1708
17104MANIFOLD SUB-ASSY, EXHAUST, RH
17111MANIFOLD, INTAKE
17114BGASKET, INTAKE FLANGE
17125STAY, SURGE TANK, NO.1
17126STAY, SURGE TANK, NO.2
17127GASKET, SURGE TANK COVER
17129TANK, INTAKE AIR SURGE
17139STAY, MANIFOLD, NO.2
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.2
NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17300VALVE ASSY, INTAKE AIR CONTROL
17300BUNION(FOR INTAKE AIR CONTROL VALVE)
17315AGASKET, INTAKE AIR CONTROL VALVE
2211
25052CONVERTER SUB-ASSY, EXHAUST MANIFOLD, NO.2
25588INSULATOR, MANIFOLD CONVERTER, NO.3
25617CPLATE, EGR HOLE COVER
25628BGASKET, EGR INLET
8716
9011008035
main90110-08035
9011606048
main90116-06048
9011606127
main90116-06127
9011608147
main90116-08147
9011908A06
main90119-08A06
9012606008
main90126-06008
9012608013
main90126-08013
9014880016
main90148-80016
9014880017
main90148-80017
9017906288
main90179-06288
9017906299
main90179-06299
9017908153
main90179-08153
9017908230
main90179-08230
9017908233
main90179-08233
9017910147
main90179-10147
9017910194
main90179-10194
9033909003
main90339-09003
9040453076
main90404-53076
9091790005
main90917-90005
9091790006
main90917-90006
91511B0620
main91511-B0620
91631J0612
main91631-J0612
9164180855
main91641-80855
9164281025
main91642-81025
9461310800
main94613-10800
52 parts on this diagram · 2 diagrams in section
